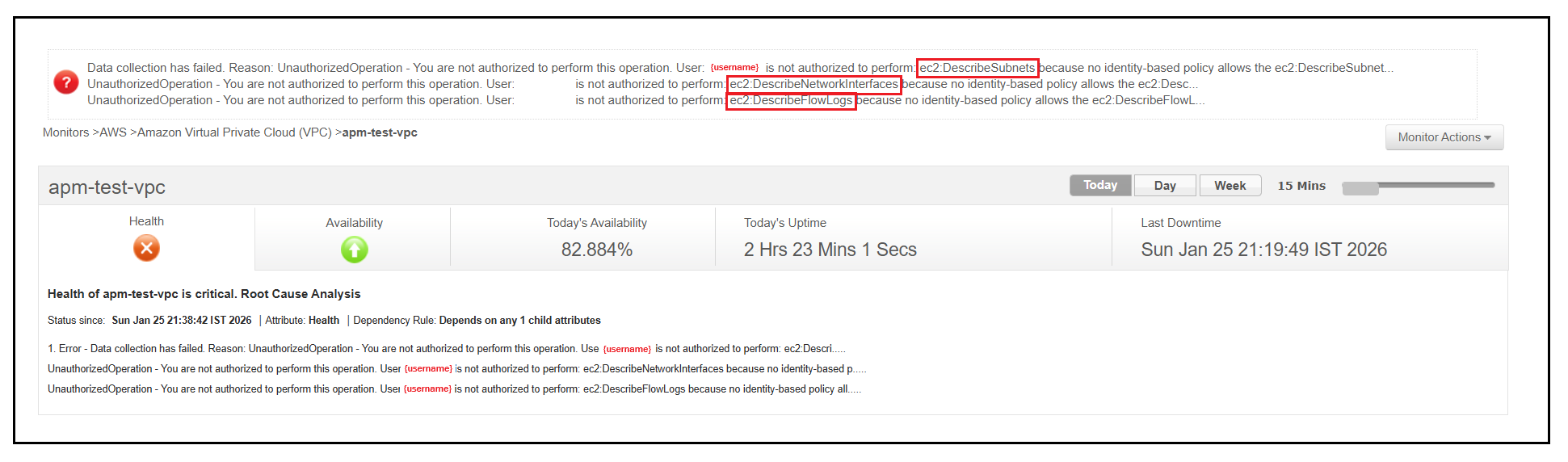

This error occurs when the AWS credentials configured for the Amazon VPC monitor do not have permission to invoke one or more required AWS APIs.

APIs that commonly trigger this error in the Amazon VPC monitor.

• EC2
  • ec2:DescribeSubnets
  • ec2:DescribeNetworkInterfaces
  • ec2:DescribeFlowLogs
• Glue
  • glue:GetDatabase
  • glue:GetTable
  • glue:GetPartition
  • glue:CreateDatabase
  • glue:CreateTable
  • glue:CreatePartition
• Athena
  • athena:StartQueryExecution
  • athena:GetQueryExecution
  • athena:GetQueryResults

How to fix the issue

1. Identify the AWS credential used by the VPC monitor.
2. Open the AWS IAM Console.
3. Locate the IAM user or role.
4. Attach or update a policy that includes the missing API permissions.
5. Check for explicit denies in IAM policies or SCPs.
6. Save the changes and wait for the next poll cycle.

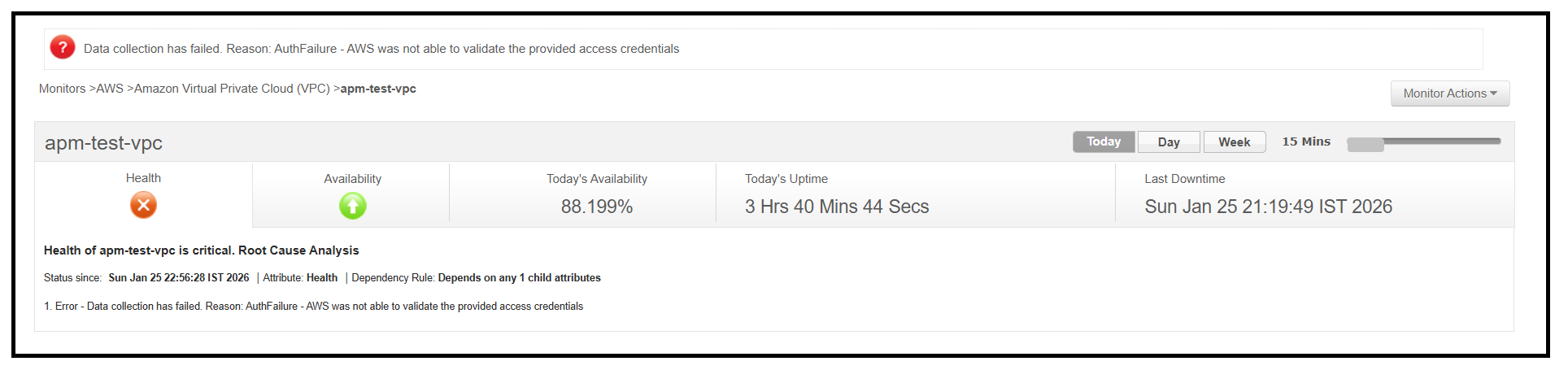

This error indicates that AWS could not authenticate the credentials configured for the Amazon VPC monitor. The access key, secret key, or role configuration may be invalid, expired, or incorrectly configured.

How to fix the issue

1. Identify the AWS credentials provided for the Amazon VPC monitor.
2. Open the AWS IAM Console.
3. Verify that the access key is active and not deleted.
4. Re-enter the access key and secret key in the monitor configuration.
5. Wait for the next poll cycle or trigger a rediscovery.

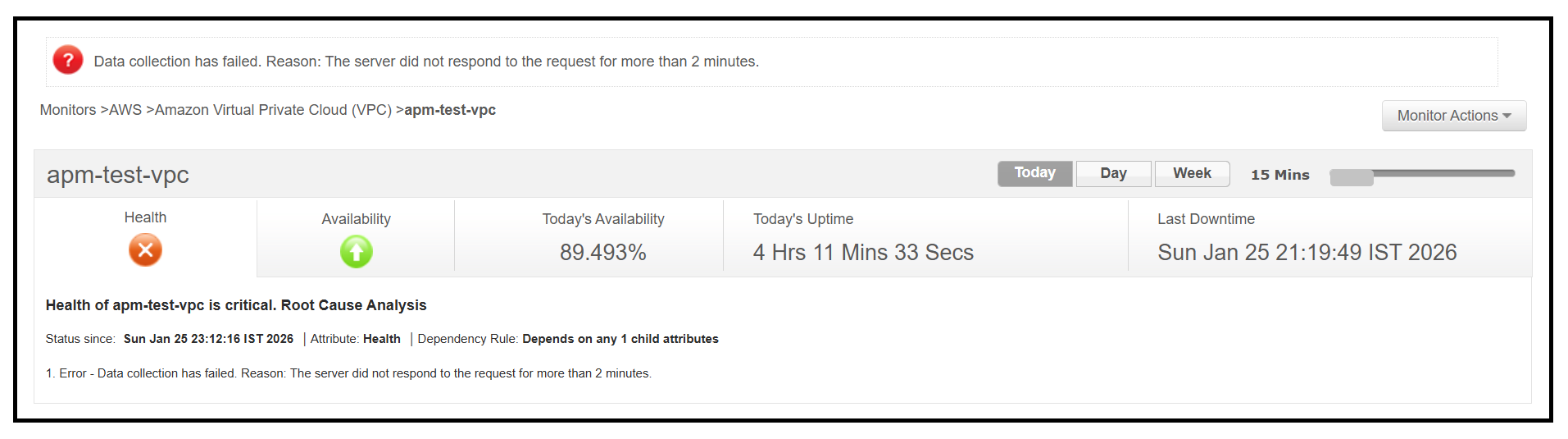

This error indicates that Applications Manager did not receive a response from AWS within the expected time window. The delay can occur due to network conditions, proxy behavior, AWS API latency, or large environments that take longer to process.

How to troubleshoot and fix the issue

1. Verify network connectivity from the monitoring server to AWS service endpoints.
2. Check proxy or firewall configurations for blocked or delayed requests.
3. Ensure that TLS inspection does not modify AWS responses.
4. Confirm that the AWS region is reachable and operational.
5. Review Athena query execution time in the AWS Console.
6. Consider increasing the data collection interval for very large VPCs.
7. Retry data collection after the next poll cycle.

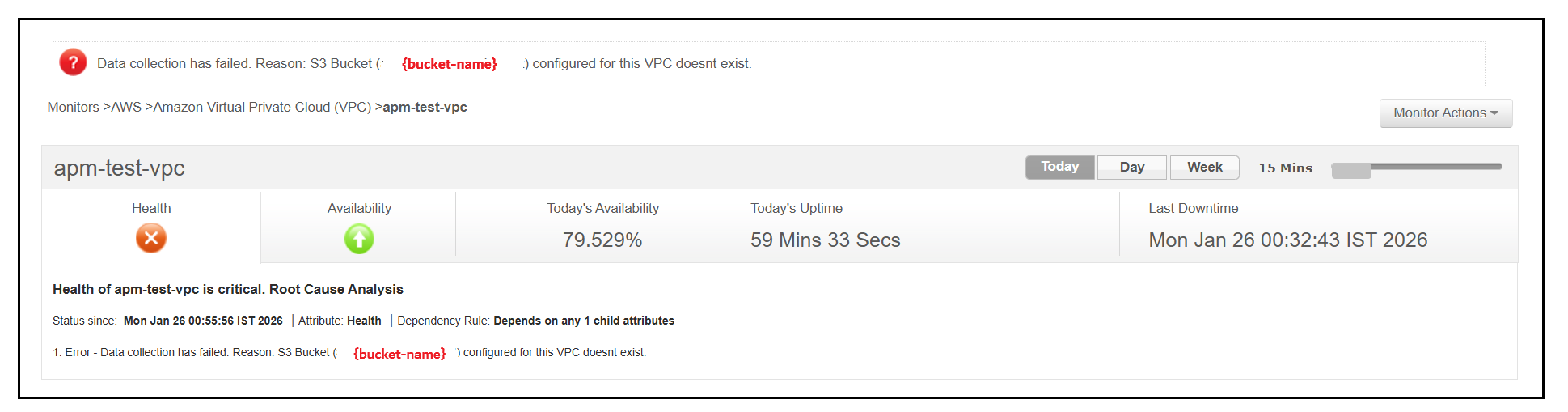

This error occurs when the Amazon S3 bucket configured for VPC Flow Logs cannot be found or accessed by the configured monitoring setup. Without a valid bucket, Flow Logs cannot be delivered and performance metrics cannot be collected.

How to troubleshoot and fix the issue

1. Open the AWS Management Console.
2. Navigate to S3 and verify the bucket name.
3. Confirm the bucket exists in the same region as the VPC.
4. If the bucket was deleted, recreate it or update the Flow Log configuration.
5. Check the IAM role used for Flow Logs has access to the bucket.
6. Verify the bucket policy does not block writes from VPC Flow Logs.
7. Wait for the next poll cycle or trigger rediscovery.

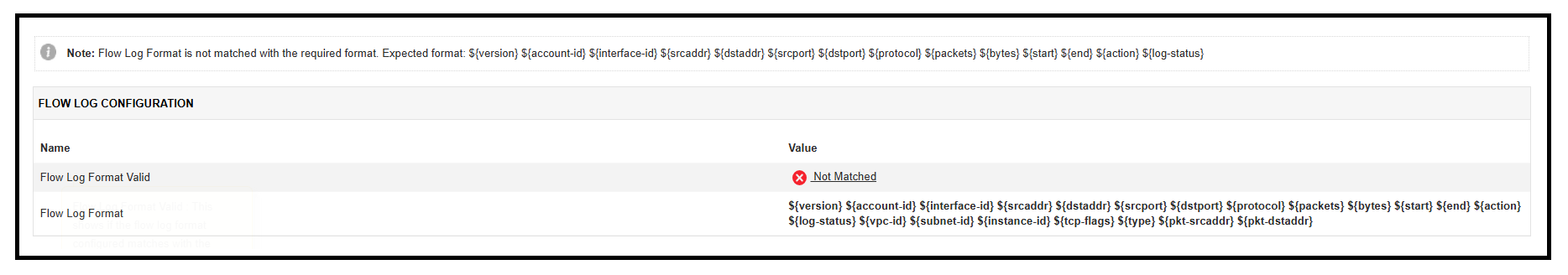

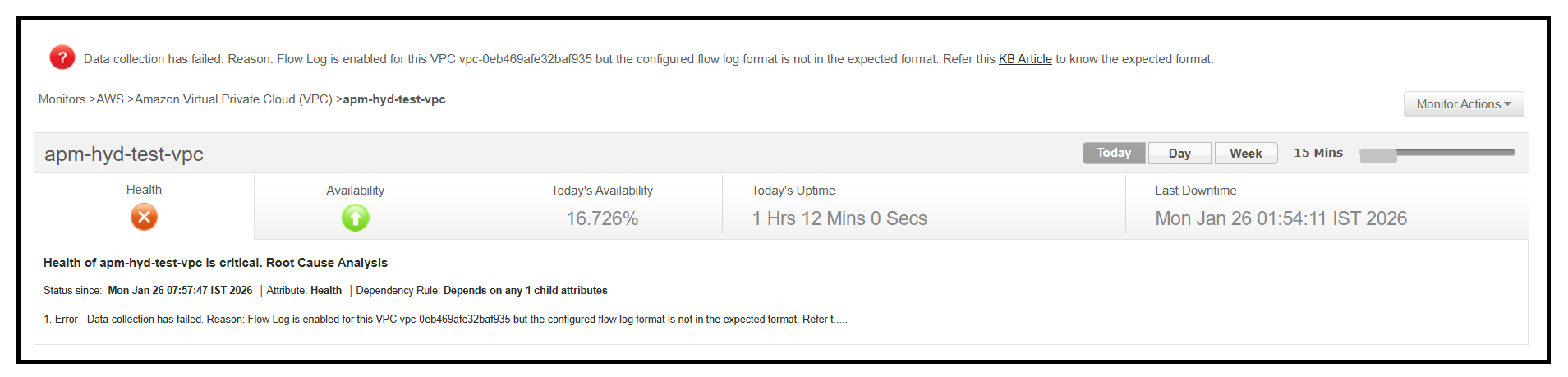

This error occurs when VPC Flow Logs are enabled for the VPC, but the configured log record format does not match the required schema for parsing network traffic and performance metrics.

Expected Flow Log record format

${version} ${account-id} ${interface-id} ${srcaddr} ${dstaddr} ${srcport} ${dstport} ${protocol} ${packets} ${bytes} ${start} ${end} ${action} ${log-status}

How to fix the issue

1. Open the AWS Management Console.
2. Navigate to VPC → Your VPCs.
3. Select the affected VPC.
4. Go to the Flow Logs tab.
5. Edit the existing Flow Log configuration or create a new one if required.
6. Update the Log format to match the expected schema exactly.
7. Ensure that the log file format is set to text.
8. Save the changes and wait for new logs to be delivered to S3.

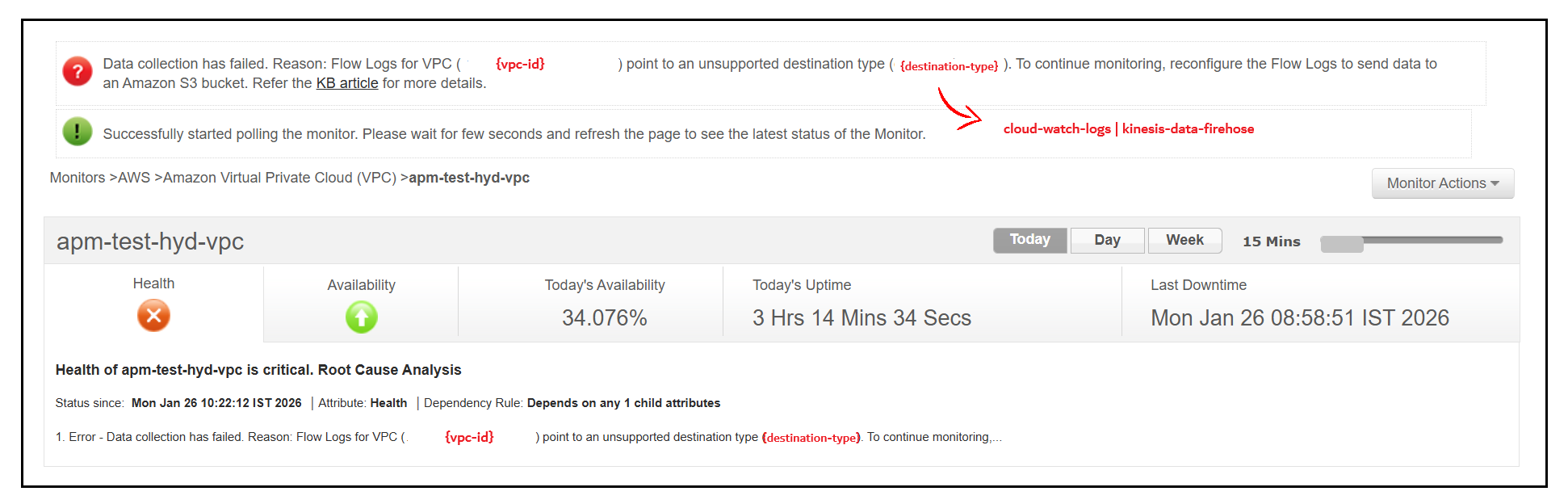

This error occurs when VPC Flow Logs are configured to send data to an unsupported destination type.

Supported monitoring requires Flow Logs to be delivered to an Amazon S3 bucket.

Supported destinations

How to fix the issue

1. Sign in to the AWS Management Console.
2. Navigate to VPC → Your VPCs.
3. Select the affected VPC.
4. Open the Flow Logs tab.
5. Edit the existing Flow Log configuration.
6. Change Destination to Send to an Amazon S3 bucket.
   Do not select CloudWatch Logs or Kinesis Data Firehose.
7. Save the changes.
8. Wait for new log files to appear in S3 and allow the next poll cycle to complete.

When will I see this error?

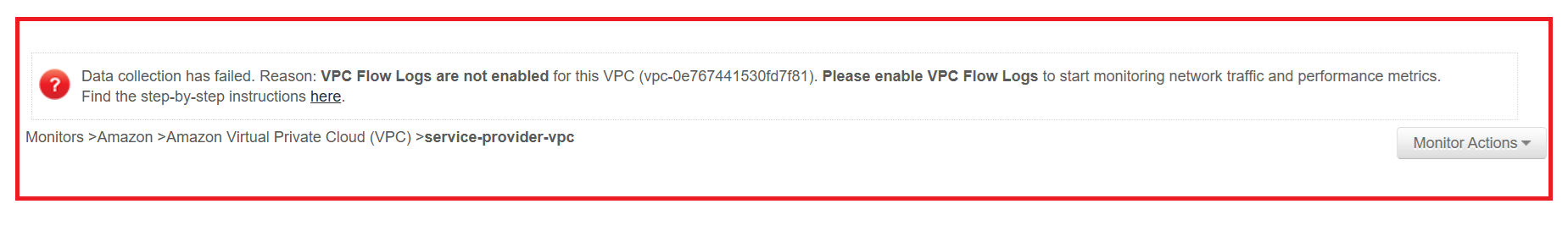

You will see the following message when VPC Flow Logs are not enabled or not enabled at the VPC level:

This indicates that network traffic and performance metrics cannot be collected until VPC Flow Logs are enabled at the VPC level.

How to enable VPC Flow Logs (required configuration)

1. Sign in to the AWS Management Console.
2. Navigate to VPC → Your VPCs.
3. Select the target VPC.
4. Open the Flow Logs tab.
5. Click Create flow log.
6. For Resource type, ensure VPC is selected.
7. Select the Traffic type:
   • All (recommended)
   • Accept
   • Reject
8. For Destination, choose Send to an Amazon S3 bucket.
   Do not select CloudWatch Logs.
9. Specify the S3 bucket ARN where the Flow Logs should be delivered.
10. Choose or create an IAM role (find more details below) with permissions to write logs to the S3 bucket.
11. Under Log format, ensure:
    • Log file format is plain text
    • The log format exactly matches the expected schema below

    ${version} ${account-id} ${interface-id} ${srcaddr} ${dstaddr} ${srcport} ${dstport} ${protocol} ${packets} ${bytes} ${start} ${end} ${action} ${log-status}


12. Ensure Flow Logs are partitioned by time:
    • Partition frequency: Every 24 hours (default AWS behavior)

13. Click Create flow log to save the configuration.


{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "s3:PutObject",
      "Resource": "arn:aws:s3:::/AWSLogs//*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetBucketLocation",
        "s3:ListBucket"
      ],
      "Resource": "arn:aws:s3:::"
    }
  ]
}


This occurs when VPC Flow Logs are enabled only at the subnet or network interface (ENI) level, but not at the VPC level. The VPC monitor requires a VPC-level Flow Log configuration to collect traffic and performance metrics across the entire VPC.

How to verify in AWS

1. Open the AWS Management Console.
2. Go to VPC → Your VPCs.
3. Select the affected VPC.
4. Open the Flow Logs tab.
5. Check whether there is a Flow Log entry where:
   • Resource type: VPC
   • Destination: Amazon S3

How to fix the issue

1. If no VPC-level Flow Log exists, click Create flow log.
2. Select VPC as the Resource type.
3. Choose Send to an Amazon S3 bucket as the destination.
4. Specify the S3 bucket ARN.
5. Configure the required log format.
6. Save the Flow Log configuration.

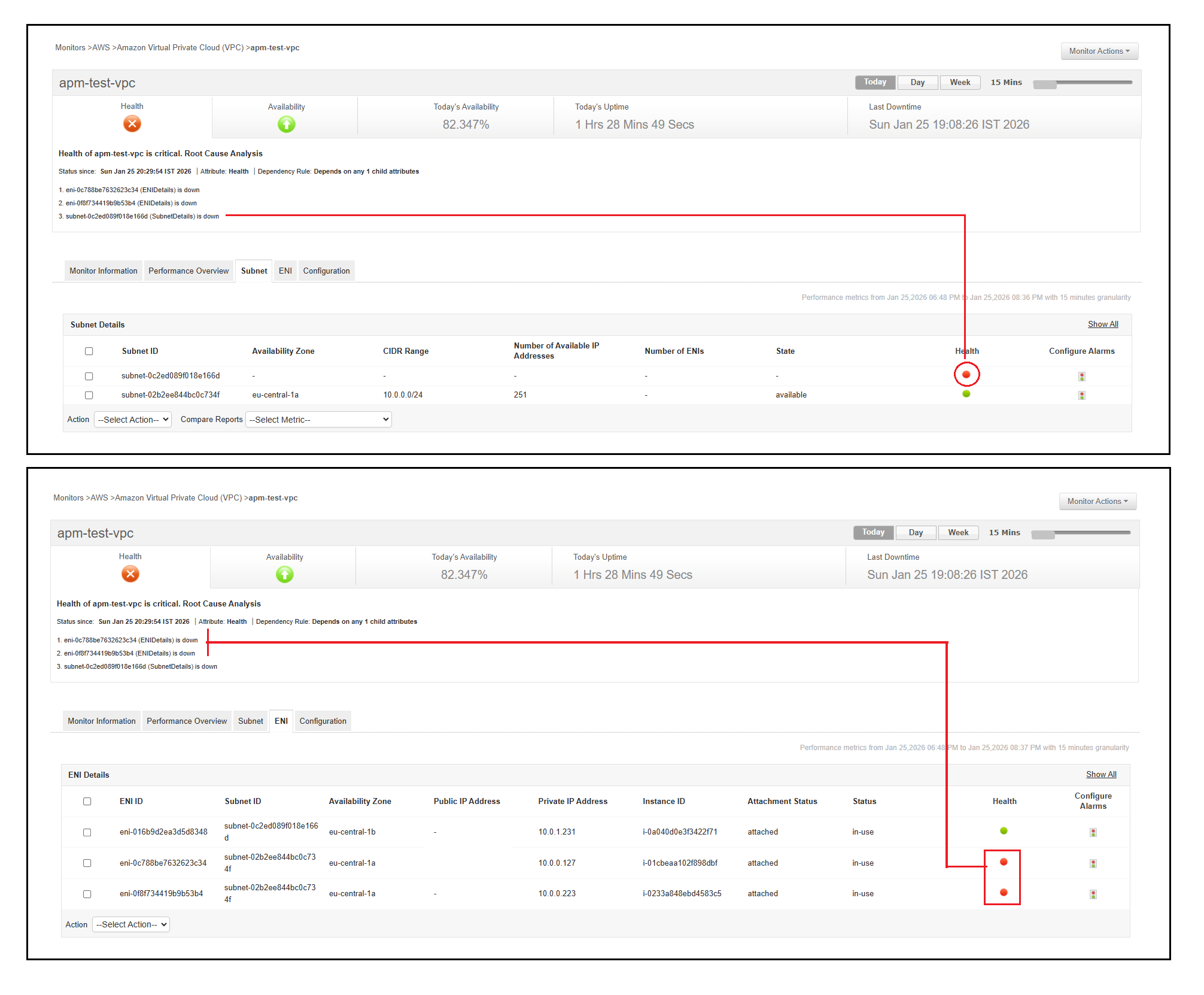

When a subnet or Elastic Network Interface (ENI) is deleted in AWS, the VPC monitor continues to retain the resource details for a short duration to avoid transient discovery issues and false alerts.

How to change the persistence behavior

You can control how long deleted subnets or ENIs remain in the monitor before being removed.

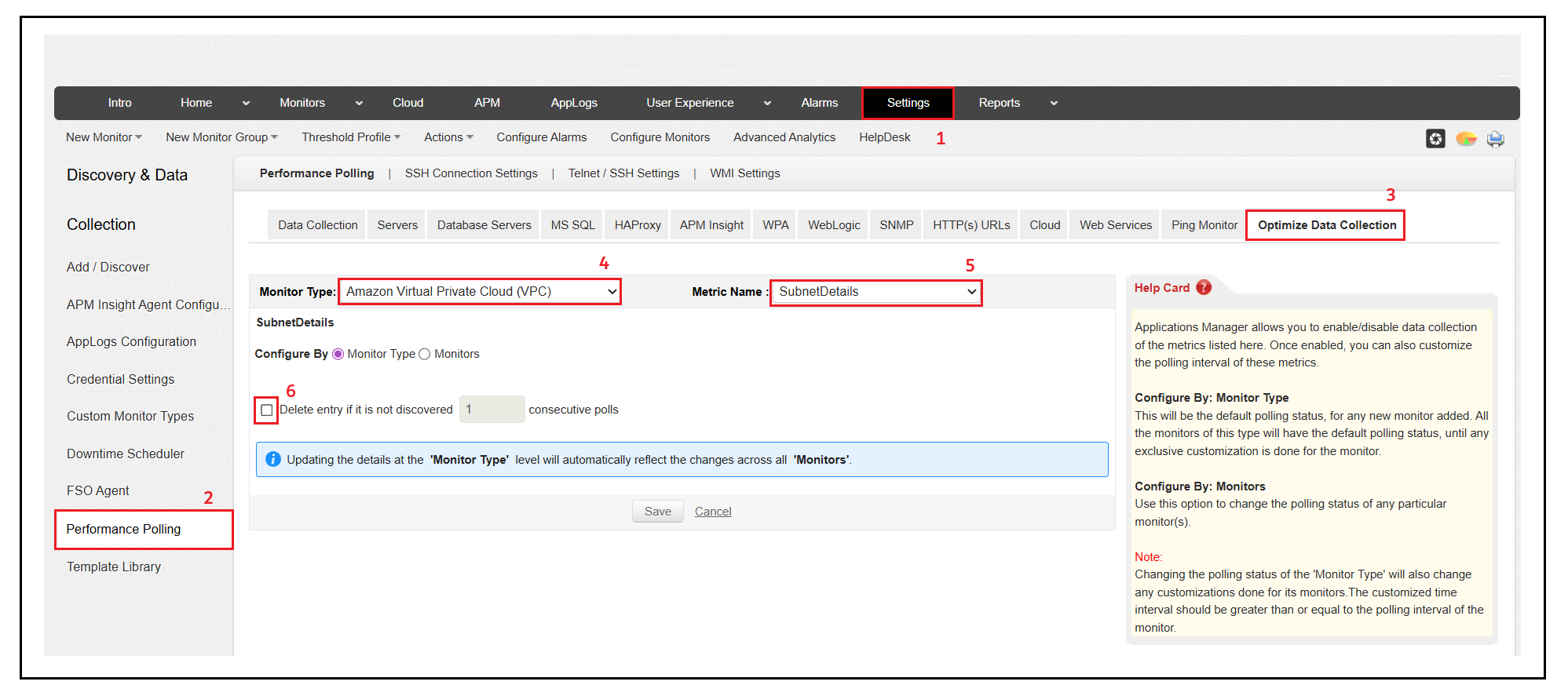

1. Go to Settings → Discovery and Data Collection.
2. Open Performance Polling.
3. Click Optimize Data Collection.
4. Choose:
   • Monitor Type: Amazon Virtual Private Cloud (VPC
   • Metric Name: SubnetDetails or ENIDetails
5. Locate the option: Delete entry if it is not discovered {number} consecutive polls.
6. Enable or disable the option and adjust the poll count based on your requirement.
7. Save the changes.

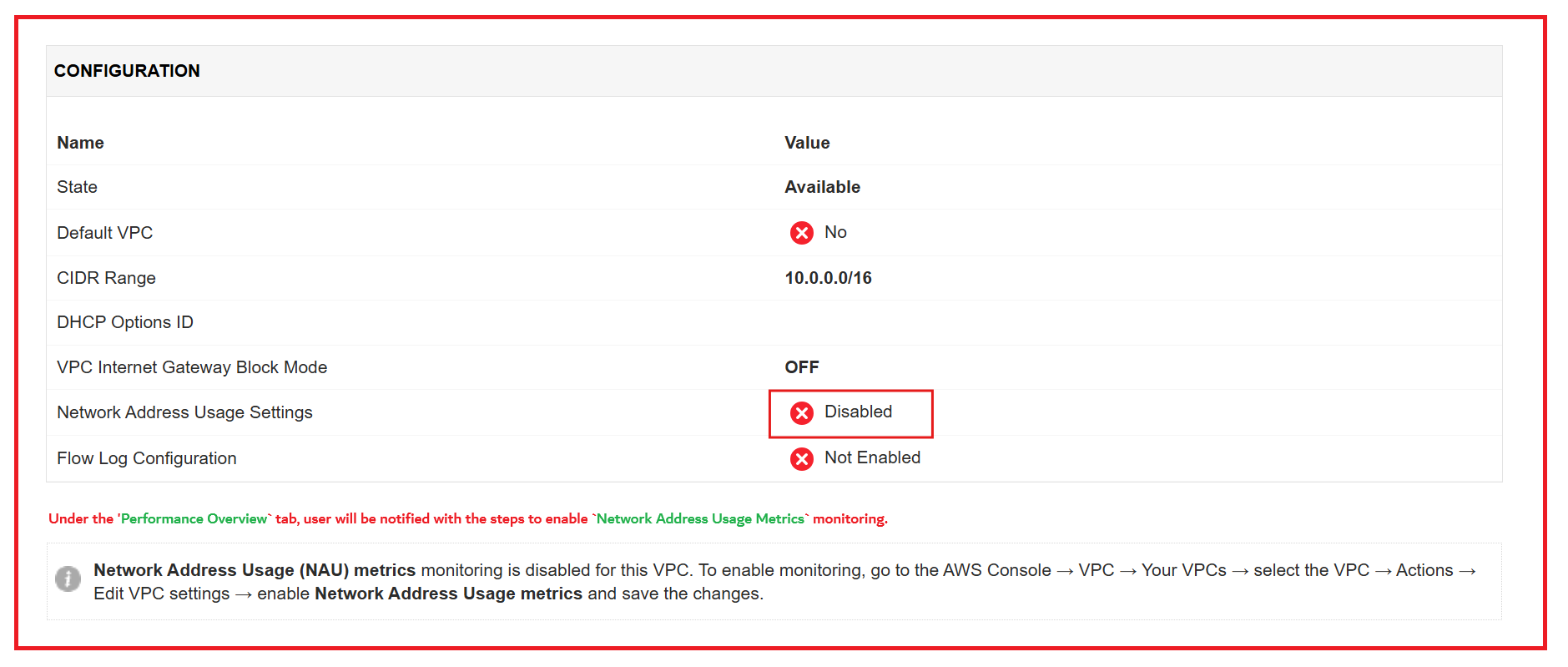

How to enable Network Address Usage (NAU) metrics

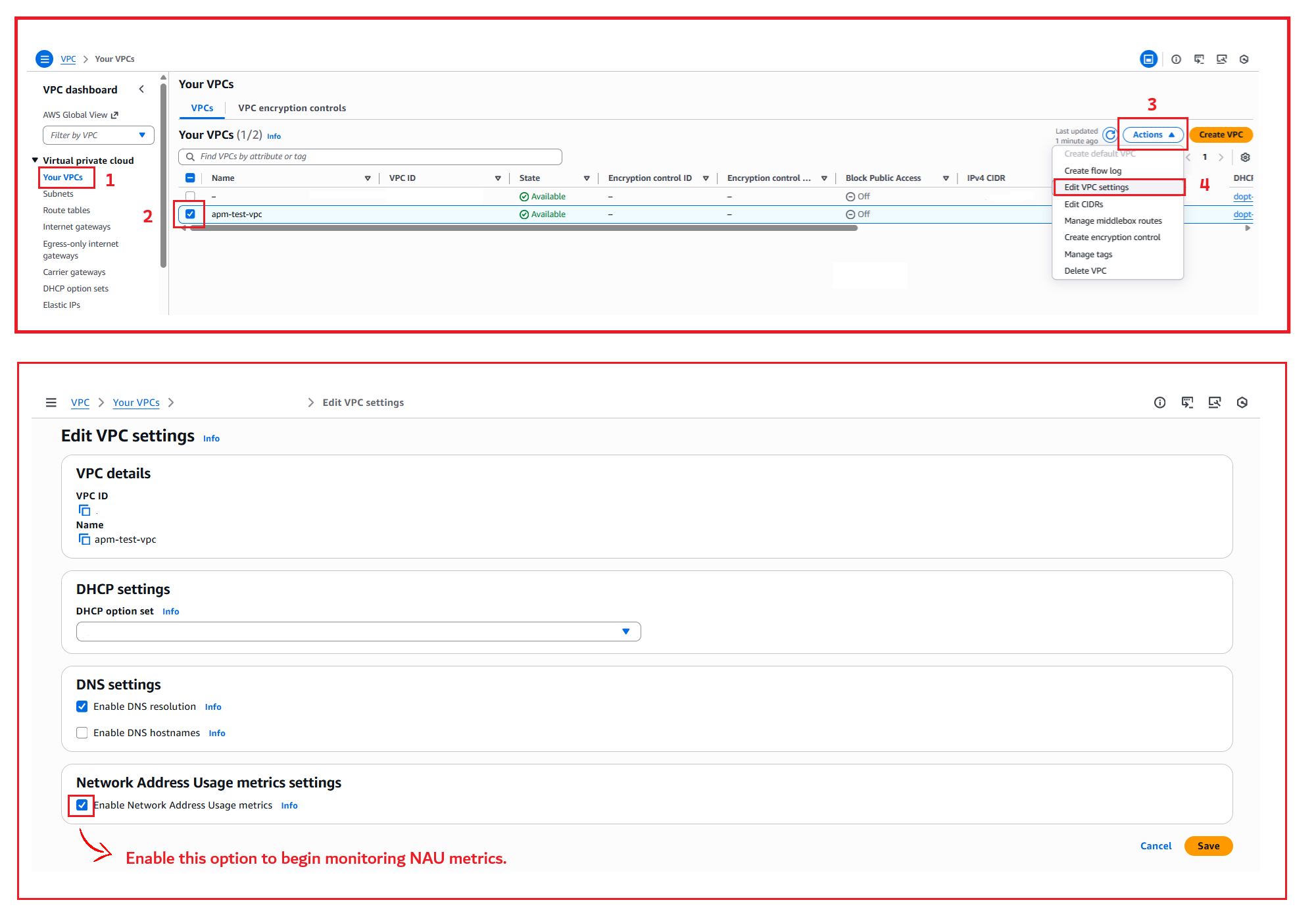

1. Sign in to the AWS Management Console.
2. Navigate to VPC → Your VPCs.
3. Select the target VPC.
4. Click Actions → Edit VPC settings.
5. Enable the Network Address Usage metrics option.
6. Click Save changes.

Network Address Usage (NAU) metrics published by AWS represent the maximum number of Network Address Usage units that can be consumed within a VPC. These limits protect VPCs from exhausting IP-related resources and are enforced using AWS service quotas.

What are NAU units?

NAU units are an AWS-internal capacity measure used to track how many IP-address-consuming resources exist within a VPC. Different AWS resources consume different numbers of NAU units.

What limits should I be aware of?

• A single VPC supports up to 64,000 NAU units by default.
• This can be increased up to 256,000 by requesting a service quota increase.
• For VPCs peered within the same Region, the combined limit is 128,000 NAU units (increaseable to 512,000).
• Inter-region VPC peering does not contribute to this combined limit.


This error appears when an Amazon Athena query — including partition-creation queries — does not complete successfully after the configured retry attempts.

Typical error message:

Athena query {0} did not succeed after maximum retry attempts ({1}).
Reason: {2}

Where:

• {0} — Athena Query Execution ID
• {1} — Maximum retry attempts configured by the monitor
• {2} — Last failure reason returned by Athena

How ApplicationsManager handles Athena query execution

After submitting a query, the monitor repeatedly polls Athena for its status:

• Checks whether the query is in QUEUED or RUNNING state.
• Waits a configured interval between checks.
• Retries until the retry limit is reached.
• Fails the poll cycle if the query enters FAILED or CANCELLED state, or does not complete in time.

Partition-creation queries (ALTER TABLE ADD PARTITION) are also validated using this same retry logic.

Common reasons for Athena query or partition failures

• Insufficient IAM permissions for Athena or Glue operations
• S3 bucket or output location not accessible
• Missing or invalid Glue table/partition definitions
• Flow Log data not present for the requested time window
• Athena concurrency or service quota limits
• Network or proxy issues between ApplicationsManager and AWS APIs
• Invalid SQL due to schema mismatch or corrupted logs

What customers should verify in AWS

1. Open the AWS Athena Console and locate the Query Execution ID shown in the error.
2. Review the Query details and failure message.
3. Confirm that the configured Athena output S3 location exists and is writable.
4. Check the Glue database and table definitions.
5. Verify that the IAM role has permissions for:
   • athena:StartQueryExecution
   • athena:GetQueryExecution
   • athena:GetQueryResults
   • glue:GetDatabase / CreateDatabase
   • glue:GetTable / CreateTable
   • glue:GetPartition / CreatePartition
6. Review Athena service quotas (concurrent queries, data scanned).
7. Check S3 lifecycle rules to ensure logs were not deleted too early.

Does the tool retry automatically?

Yes. The monitor retries Athena query-status checks up to the configured retry limit and waits between attempts before marking the poll as failed.

If the query remains in progress too long or fails, the poll cycle ends and the error is displayed in the monitor.

What is managed by the monitoring tool vs AWS?

Summary

This error indicates that Athena did not complete a query — including partition creation — within the allowed retry attempts. Customers should inspect the Athena query execution details in AWS and validate IAM permissions, S3 locations, Glue configuration, and Athena quotas.

This error appears when ApplicationsManager attempts to create a daily AWS Glue partition for VPC Flow Logs and the operation does not succeed.

Typical error message:

Partition creation failed for date {0} in table {1} and database {2}.

Where:

• {0} — Partition date (for example: 2026-01-26)
• {1} — Glue table name
• {2} — Glue database name

Why does the monitor create partitions?

VPC Flow Logs are partitioned by date (YYYY-MM-DD) so that Athena scans only the required data range. This keeps queries fast and reduces AWS cost.

If a partition for the current day does not exist, the monitor attempts to create it automatically before running queries.

Common reasons for partition creation failure

• Missing IAM permissions for Glue or Athena
• S3 location for the partition does not exist or is inaccessible
• Incorrect bucket name or prefix
• Glue database or table does not exist
• Flow Logs have not yet been delivered for the day
• Region mismatch between VPC, S3 bucket, and Glue/Athena
• Service quota limits or throttling

What should I check in AWS? (Step-by-step)

1. Open the AWS Glue Console and verify that the database and table exist.
2. Confirm the table’s partition key includes the DATE column.
3. Check that the S3 path for the date partition exists:
   s3://<bucket-name>/AWSLogs/<account-id>/vpcflowlogs/<region>/YYYY/MM/DD/
4. Open the Athena Console and review the failed query details.
5. Verify that the IAM role has permissions for:
   • glue:GetDatabase
   • glue:GetTable
   • glue:GetPartition
   • glue:CreatePartition
   • athena:StartQueryExecution
6. Ensure the S3 bucket policy allows Glue and Athena access.
7. Confirm that Flow Logs are enabled at the VPC level and delivered to S3.

What is handled by ApplicationsManager vs AWS?

Summary

This error means the daily Glue partition for VPC Flow Logs could not be created. Verify IAM permissions, Glue schema, S3 directory structure, and Flow Log delivery to resolve the issue.

Applications Manager does not delete any AWS resources or data generated as part of VPC monitoring. This includes VPC Flow Logs stored in Amazon S3, Athena query results, and AWS Glue metadata.

Customers are responsible for configuring appropriate data retention and cleanup policies on the AWS side to control storage growth and cost.

Configure Amazon S3 lifecycle rules

To control storage usage, configure Amazon S3 Lifecycle policies on:

• The S3 prefix containing Flow Logs
• The Athena query output prefix

Recommended actions:

• Transition older logs to cheaper storage tiers (Glacier/Deep Archive).
• Expire objects after your compliance-approved retention period.
• Align retention with your monitoring poll interval and audit requirements.

Manage Athena query result files

Athena stores query outputs in the configured S3 location. These files can accumulate quickly if not cleaned.

• Apply lifecycle rules to the Athena output prefix.
• Use short retention (for example, 7–30 days) unless auditing requires more.

Glue catalog and partition considerations

Glue databases, tables, and partitions are metadata objects and do not consume significant storage, but excessive unused partitions can affect query planning and maintenance.

• Ensure partitions are created only for active days.
• Remove obsolete tables when VPC monitoring is permanently disabled.

Best practices for long-term operation

• Review the S3 bucket size periodically in the AWS  Management Console.
• Monitor Athena scan volumes in AWS Cost Explorer.
• Align log retention with compliance requirements.
• Document lifecycle policies for audit readiness.

This article explains the AWS-side costs incurred when enabling Amazon VPC monitoring using VPC Flow Logs delivered to Amazon S3 and analyzed using Amazon Athena and AWS Glue.

Costs vary significantly based on the traffic volume, number of ENIs, polling interval, retention period, region, and AWS pricing tiers. All examples below are illustrative and should be validated using the AWS Pricing Calculator and your AWS billing dashboard.

AWS Services that generate charges

• VPC Flow Logs – Log delivery/ingestion volume.
• Amazon S3 – Storage of Flow Logs and Athena outputs.
• Amazon Athena – Charged per TB of data scanned.
• AWS Glue – Data Catalog metadata, crawlers, or ETL jobs.
• AWS API usage – Control-plane calls (usually negligible).

How the VPC monitor uses Athena

For every poll cycle, the monitor executes the following:

• Three Athena queries per ENI to compute traffic and performance metrics.
• An ALTER TABLE ADD PARTITION query per day (if the partition does not exist).

Default performance polling interval: 15 minutes (96 polls per day).

Primary AWS cost drivers

1. VPC Flow Logs delivery

AWS charges for the volume of Flow Logs delivered. The exact pricing varies by region and AWS billing tier.

Main driver: Network traffic inside the VPC.

2. Amazon S3 storage

VPC Flow Logs and Athena query outputs are stored in Amazon S3. Charges depend on:

• Daily log volume
• Retention period
• Storage class (Standard, Glacier, etc.)

Customers are strongly advised to configure S3 Lifecycle policies to expire or archive older logs.

3. Amazon Athena scans

Athena pricing is based on data scanned, not query count. Typical pricing is approximately $5/TB scanned (region dependent).

4. AWS Glue

AWS Glue Data Catalog objects usually incur minimal cost. Glue crawlers or ETL jobs, if enabled, incur DPU-hour charges.

5. AWS API usage

Describe APIs and control-plane calls generally have negligible cost.

6. Data transfer

This applies only when logs or queries cross regions or leave AWS.

Example scenario – Medium-sized VPC

• 50 ENIs
• Polling every 15 minutes
• Logs partitioned by date
• Estimated scan per query: 5 MB
• Flow Logs generated: 10 GB/day
• Retention: 90 days

Athena query volume

• Queries per poll: 50 × 3 = 150
• Queries per day: 150 × 96 = 14,400

Estimated Athena scan

• Daily scan ≈ 72 GB
• Monthly scan ≈ 2.1 TB

Athena cost estimate

• 2.1 TB × $5/TB = $10.50/month

S3 storage estimate

• Monthly ingestion: 300 GB
• Steady-state (90 days): ~900 GB
• S3 Standard example: $0.025/GB → ~$22.50/month

Illustrative monthly total

What can significantly increase cost?

• Hundreds of ENIs
• Short polling intervals
• High east-west traffic
• No S3 lifecycle policies
• Poor partitioning
• Broad Athena scans

Customer responsibilities

• Configure S3 lifecycle policies
• Monitor Athena scan volume
• Track VPC Flow Log ingestion
• Review Glue partitions periodically
• Adjust polling interval when required
