High Availability troubleshooting: Virtual IP not working

High Availability troubleshooting: Virtual IP not working

Issue description

The virtual IP does not function properly in the High Availability (HA) setup. This impacts EventLog Analyzer access and syslog log collection.

Possible causes

  • Wrong interface name in StartHA.vbs or StopHA.vbs
  • Virtual IP isn’t in the same network range or subnet
  • Syslog devices are not set to use the virtual IP
  • Missing license files on the secondary server
  • Elasticsearch is not configured for HA
What to check first

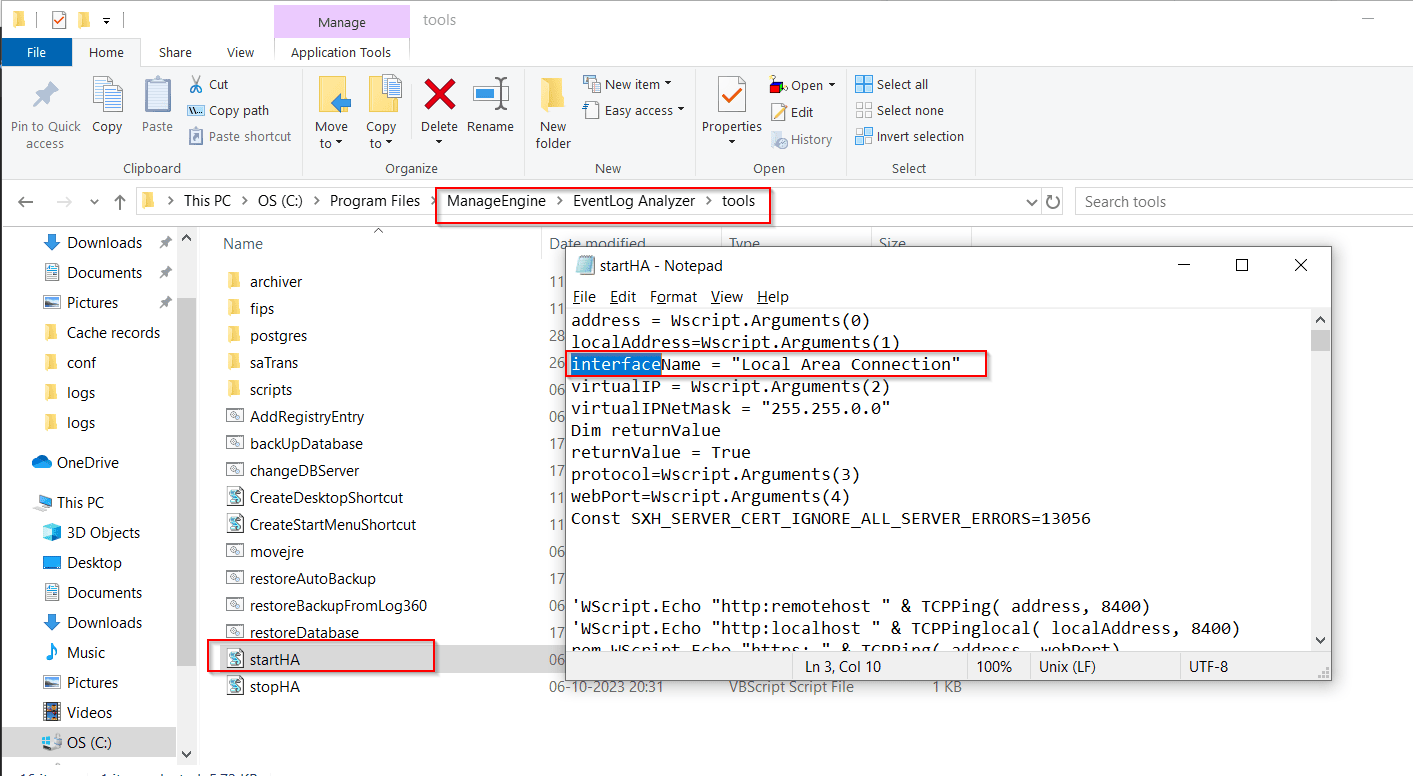

  • Is the interface name correct in StartHA.vbs and StopHA.vbs?

  • Is the virtual IP in the same subnet?
  • Were license files copied from primary to secondary?

Resolution steps

Step 1: Confirm the interface name in the scripts is correct.
Step 2: Make sure the virtual IP is in the same subnet.
Step 3: Verify syslog devices are sending logs to the virtual IP.
Step 4: Copy these files from primary to secondary:
    • <EventLog Analyzer Home>\lib\petinfo.dat
    • <EventLog Analyzer Home>\lib\AdventNetLicense.xml
Step 5: Check Elasticsearch is configured for HA.

Validation and testing

  • Ping the virtual IP
  • Open EventLog Analyzer using the virtual IP
  • Check if syslog logs are received

Tips

  • Make sure settings match on both servers
