Issue description

Possible cause

1. Advance Auditing not enabled: This may occur if you have not enabled Advanced Auditing or if the user account used does not have sufficient permission to set audit policies in your SQL Server instance.
2. Audit Policies are not configured properly in your SQL Server instance.
3. Event ID = 33205 are not being logged in Event Viewer.
4. Event Viewer does not hold the events for more than the monitoring interval.
5. Misconfiguration of the log collection filter.
6. You lack a license


  Prerequisites

• Need access to EventLog Analyzer console with an administrator role or custom role that has permission to view SQL Server reports and configure SQL Servers.
• Need access to the SQL Server.
• A SQL Server instance authentication account with the following permission:




 Steps to follow

 I.  Configuration in EventLog Analyzer user interface

1. Log in to the EventLog Analyzer console.
2. Navigate to Settings > Database Audit > SQL Server.
3. If the instance is not added, then refer to this page: How to add a SQL Server instance in EventLog Analyzer.
4. If Advanced Auditing is not enabled under SQL Server Instance Configuration, add the Instance Name and Port number used by SQL server.
1. Learn more about identifying the port number at the end of this document.
2. Set the Instance Authentication type and enter the credentials.
3. If you are unable to verify the credentials in Advanced auditing, refer to this page to resolve the issue: Troubleshooting: MicroSoft SQL Server advanced auditing verification failed.

5. Check whether any Log Collection Filter option is enabled, which might filter the log collection:

• Basics of SQL event:
• Event Type: Application
• Event ID: 33205

6. If the above steps did not get the reports, check whether you have configured your SQL Server for Windows auditing. If yes, proceed with the next step; else, skip to II. SQL Server troubleshooting.
7. Navigate to Settings > Log Source Configuration > Devices > Windows Device. Verify whether the Last Message Time reflects the present timestamp, indicating recent event collection. Additionally, ensure the Device Status is marked as Success to confirm that logs are being collected properly.

1. If the status is not updated as success but is marked as any other errors—like agent not communicating, service status unavailable, RPC server unavailable, or Access Denied—the log collection may not happen as intended. You need to resolve the error to have seamless log collection before proceeding with further steps. Refer to the following articles to resolve the error and check whether the data starts to populate:

• Error: Agent troubleshooting : EventLog Analyzer
• Error: service status unavailable : EventLog Analyzer
• Error : RPC server unavailable - EventLog Analyzer
• Error: Access Denied - EventLog Analyzer

2. Once the status is updated, check whether the log collection happens and if the data is available in the reports.
3. If the issue persists, check out II. SQL Server troubleshooting and check whether the Events are recorded in the respective server's Event Viewer.

  II. SQL Server troubleshooting

• RDP to SQL server where instance is hosted.
• Log in to your SQL Server.
• Press Win + R to open the Run window, type and enter eventvwr.msc to open Event Viewer, expand Windows Logs, then select Application.

• Choose Find option and enter the Event ID as "33205" to check whether the matching string value in the event exists. This will help you to identify whether the event is recorded.

• Security Log Flood with Event ID 521 - Unable to log events to security log with Status code : 0xc0000008
• How to fix Security Event Log Event ID 521

• Open Event Viewer and navigate to Windows Logs, then Security.
• Check whether the log size has reached its limit.
• Increase the maximum log size, as mentioned in Step 3

• Open Event Viewer, then expand Windows Logs.
• Right click Application, then choose Properties to check whether logging is enabled.

• Open the Run window (Win + R), then type and enter services.msc.
• Locate Windows Event Log service, ensure it is running, and set to Automatic.

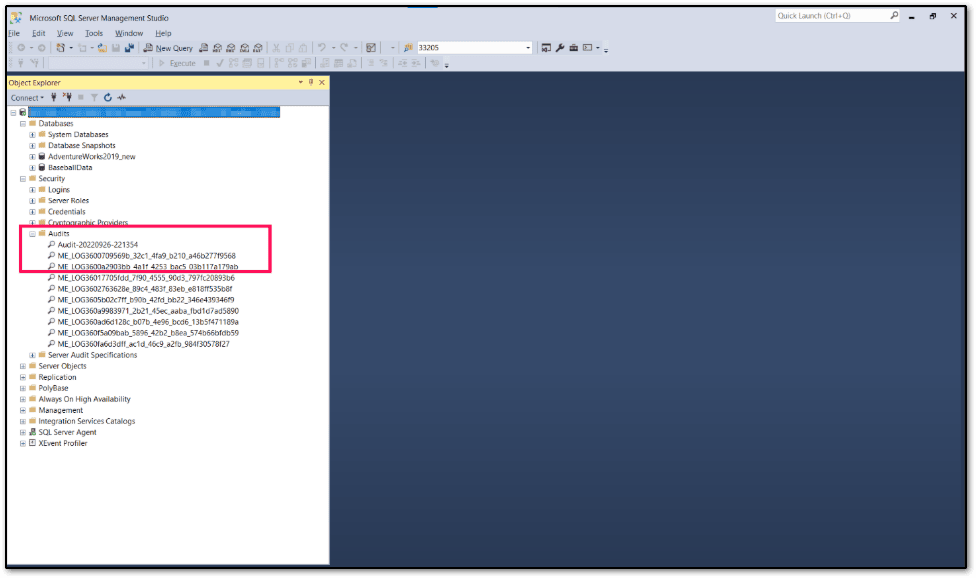

1. Open SQL Server Management Studio on the Windows machine in which SQL Server is installed, and connect to the required instance.
2. Click the Security option.
3. The Server Audit Specifications section should have an audit specification with a name starting with "ME_LOG360". Ensure it is enabled.

4. Double-click the audit specification:

1. Find the name of the mapped audit in the Audit field. An audit with the same name should be present under the Audits section (Security > Audits). Ensure it is enabled.
2. The Audit Action Type should contain the following policies:

• SCHEMA_OBJECT_ACCESS_GROUP
• BACKUP_RESTORE_GROUP
• DATABASE_ROLE_MEMBER_CHANGE_GROUP
• SERVER_ROLE_MEMBER_CHANGE_GROUP
• FAILED_LOGIN_GROUP
• SUCCESSFUL_LOGIN_GROUP
• DATABASE_CHANGE_GROUP
• DATABASE_OBJECT_CHANGE_GROUP
• DATABASE_PRINCIPAL_CHANGE_GROUP
• SCHEMA_OBJECT_CHANGE_GROUP
• SERVER_PRINCIPAL_CHANGE_GROUP
• LOGIN_CHANGE_PASSWORD_GROUP
• SERVER_STATE_CHANGE_GROUP

1. Open Event Viewer and choose Windows Logs, right click Application, t select Properties.
2. In the Log Properties - Application dialog box, ensure the maximum log size is set to at least 4GB to withstand the log flow rate. Also, enable the option to Overwrite events as needed (Oldest events first).
3. Event Viewer must hold the logs for at least 15 minutes if the log collection mode is set to 10 minutes of interval.

   Tips

• EventLog Analyzer connects to SQL Server using TCP/IP, so ensure that TCP/IP is enabled for the instance:

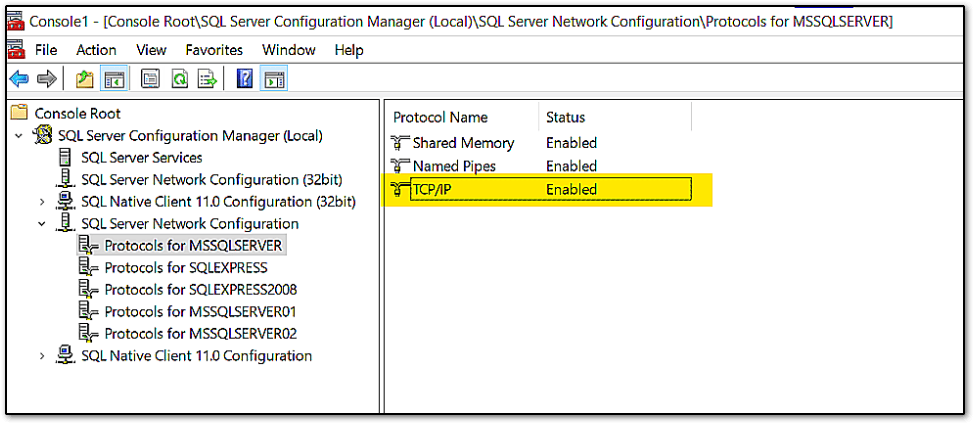

1. In the SQL Server Configuration Manager console, click SQL Server Network Configuration.
2. Double-click Protocols for (the required instance). In the center pane, under the Protocol Name column, ensure TCP/IP is Enabled. If Disabled:
1. Double-click TCP/IP, toggle the Enabled status from No to Yes, then click OK.
3. Restart the SQL Server instance.

•    The SQL Server instance should not use a dynamic port:

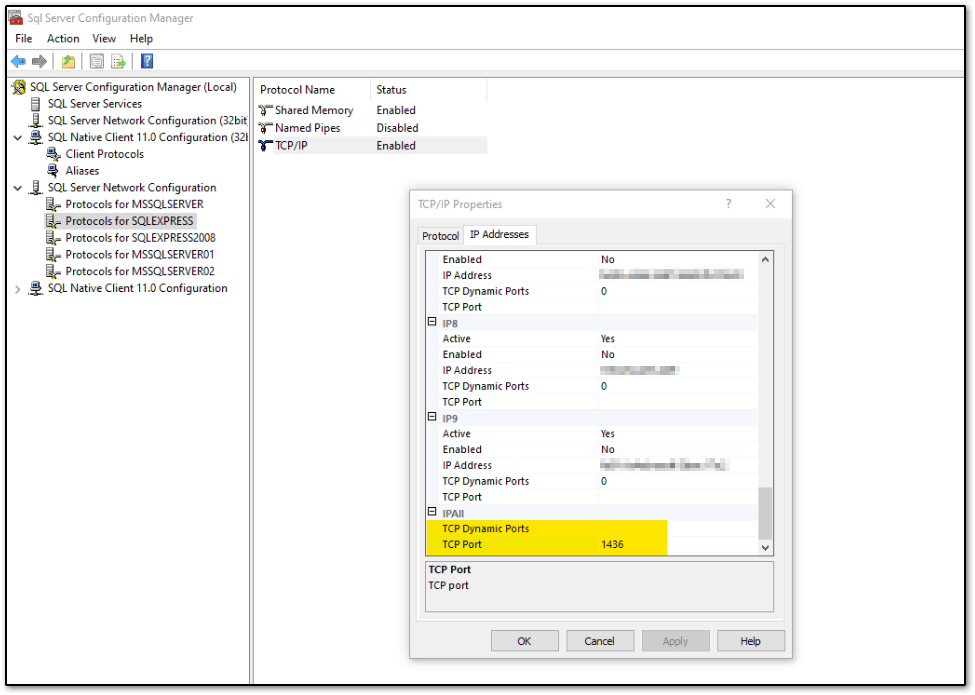

1. In the SQL Server Configuration Manager console, click SQL Server Network Configuration.
2. Double-click Protocols for (the required instance). In the center pane, under the Protocol Name column, double-click TCP/IP.
3. In the TCP/IP Properties pop-up, click the IP Addresses menu, and go to the IPAll section at the bottom.
4. Ensure that the TCP Dynamic Ports field is empty.
