Troubleshooting Incorrect Severity in EventLog Analyzer Custom Report
Overview
This document provides guidance to identify and resolve issues where the severity levels in EventLog Analyzer custom reports appear incorrect, ensuring accurate and reliable reporting.
Possible Causes
- Misconfigured severity mapping in EventLog Analyzer.
- Log source sending incorrect severity information.
- Custom rules or filters overriding default severity levels.
- Outdated EventLog Analyzer version or missing patches.
- Windows groups events into levels such as,
- Information
- Warning
- Error
- Critical
- Emergency
- Syslog groups events into severity levels as (0–7):
- 0 – Emergency
- 1 – Alert
- 2 – Critical
- 3 – Error
- 4 – Warning
- 5 – Notice
- 6 – Informational
- 7 – Debug
If the log type is not set in a custom report, EventLog Analyzer assumes it is a Syslog log and assigns severity based on these levels, which can cause mismatches.
Prerequisites
- Access to edit and update the respective custom report.
- Administrative access to EventLog Analyzer, if required for configuration changes.
Resolution

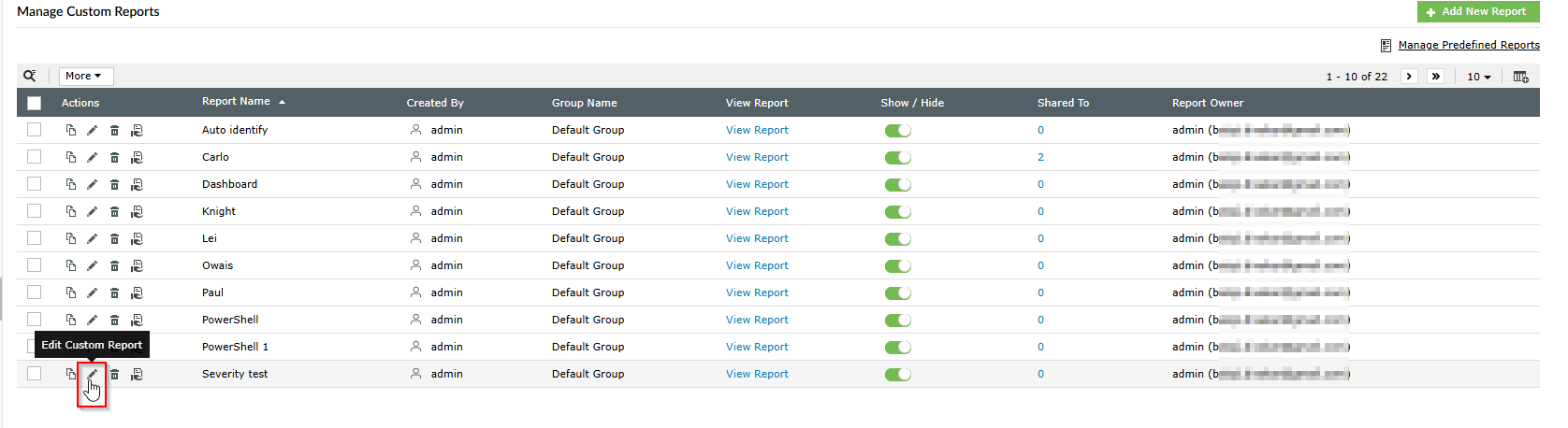

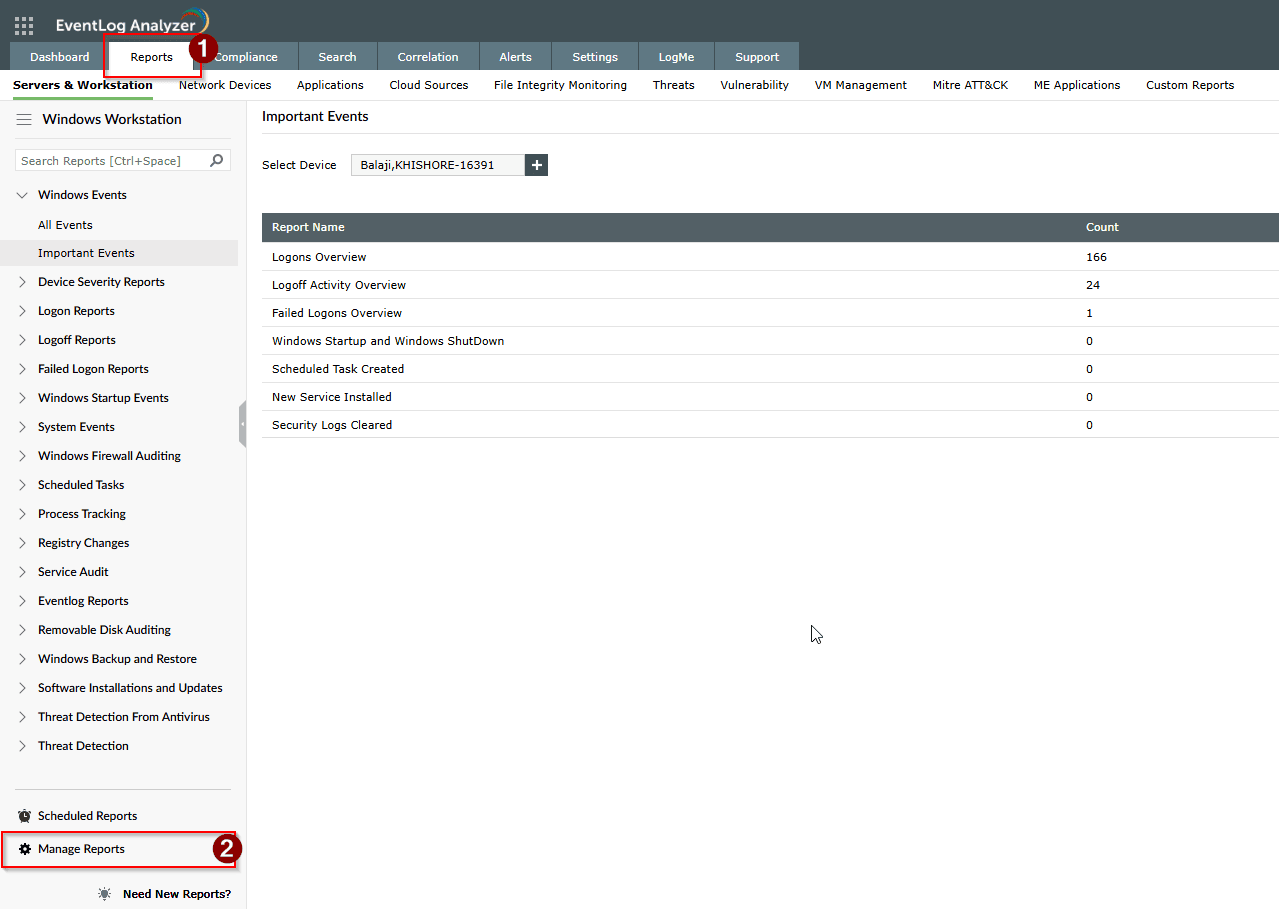

- In your EventLog Analyzer, go to Reports → Manage Reports → Edit the respective custom report.

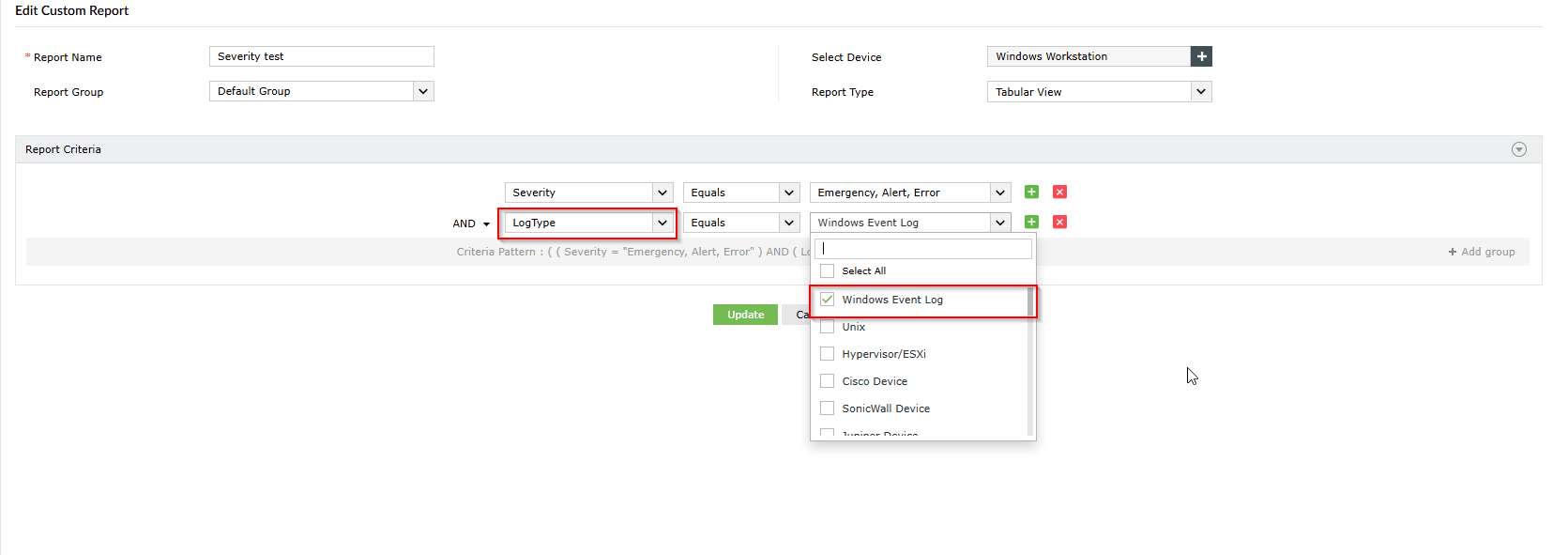

- Click on the "+" icon to add a field in the criteria and choose the field LogType.
- If the log source is a Windows device, select the LogType as "Windows Event Log" or any specific log type from the drop-down.
- Ensure the operator selected is AND.
- Click on Update to save the changes.
Tips
- Always specify the correct LogType while creating or editing custom reports to avoid mismatched severity levels.
- Cross-check the device type (Windows, Syslog, etc.) before finalizing report criteria.
- Keep EventLog Analyzer updated with the latest patches to avoid known issues.
How to contact support
If the issue persists, contact ManageEngine support with the following details:
- EventLog Analyzer build information.
- Screenshots or export of affected reports.
- Screenshot of the custom report criteria
- Screenshot of Log Collection filter page
