Objective

Prerequisites

1. System requirements


• Log forwarding daemon: Rsyslog or syslog-ng installed and enabled on the Unix system.
• Network: Stable unidirectional connection from the Unix system to the EventLog Analyzer server.
• Port Usage: Ensure that inbound ports are open as per EventLog Analyzer syslog listener ports (Default: 513 and 514 (UDP) or 514 (TCP)). Correspondingly, the outbound traffic on these same ports must be allowed and active on the Linux machines sending the logs.

1. User permissions

• Root or sudo access is required to:

• Modify syslog configuration files like /etc/rsyslog.conf or files under /etc/rsyslog.d/.
• Restart the logging service (systemctl restart rsyslog or equivalent).

1. Dependencies

• Syslog service (rsyslog or syslog-ng) must be active.
• Firewall, SELinux, or AppArmor must allow outbound syslog traffic.
• EventLog Analyzer must be configured to receive logs from remote Unix devices.

Step 1: Identify the logging daemon

Run the following commands to determine the active syslog daemon:

ps -ef | grep rsyslog
ps -ef | grep syslog-ng

Step 2: Configure application log file monitoring (rsyslog only)

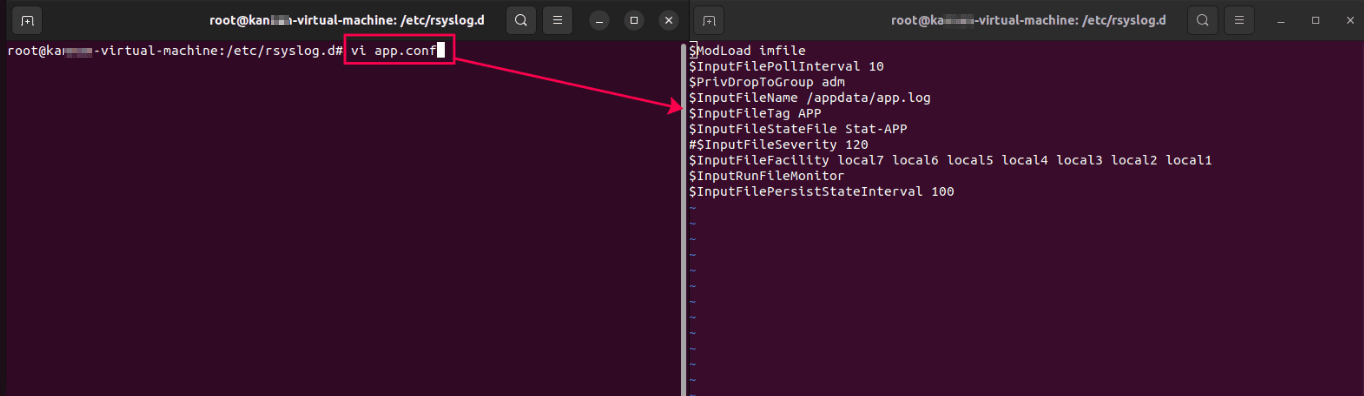

1. Create a new configuration file: sudo vi /etc/rsyslog.d/<application_name>.conf

2. Add the following content to the file:

$ModLoad imfile
$InputFilePollInterval 10
$PrivDropToGroup adm
$InputFileName <ConfiguredLogFile_Location>
#$InputFileTag APP
#$InputFileStateFile Stat-APP
#$InputFileSeverity 120
$InputFileFacility local7 local6 local5 local4 local3 local2 local1
$InputRunFileMonitor
$InputFilePersistStateInterval 100

Notes:

• The '#' used at the starting of each line denotes that the line is commented. If the user needed those field, it can be uncommented by just removing it.

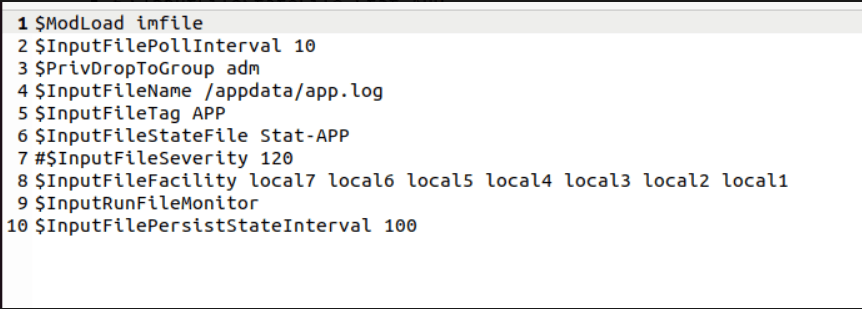

• Replace <ConfiguredLogFile_Location> with the path of the application log file. (Sample Image below)
• Add or adjust fields based on log structure or compliance needs.

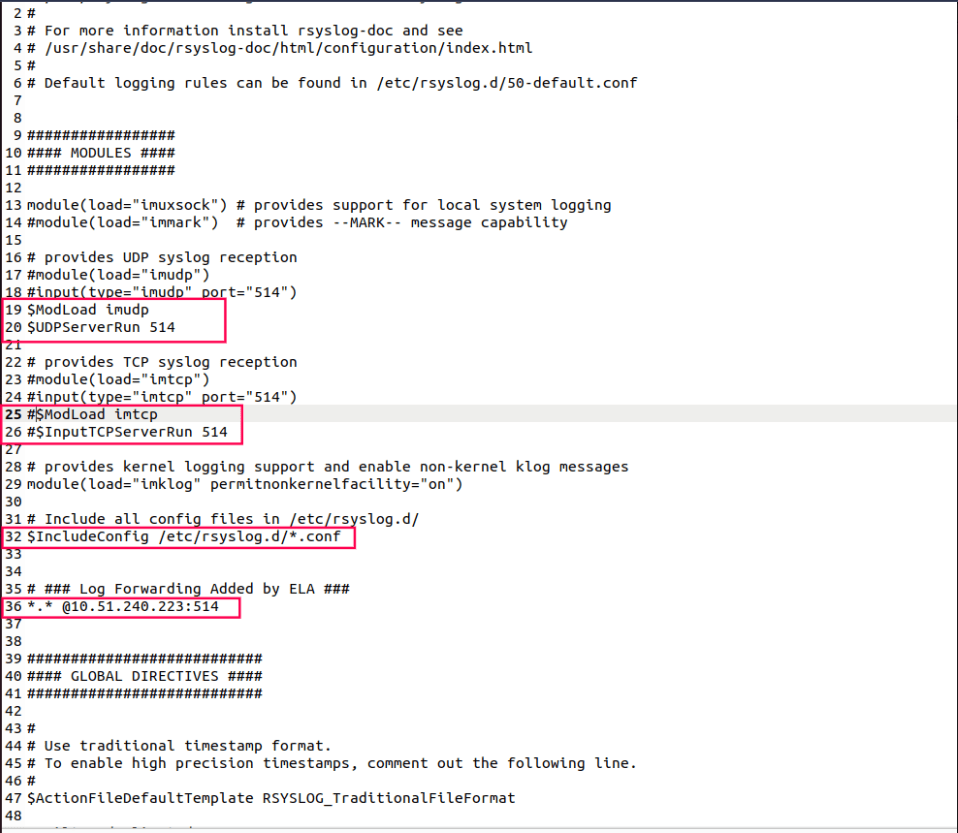

Step 3: Configure remote forwarding

1. For rsyslog:

1. Open /etc/rsyslog.conf or use a dedicated file like /etc/rsyslog.d/forward.conf.

2. Add the following lines:

• For UDP:

1. $ModLoad imudp
   $UDPServerRun 514

• For TCP:

1. $ModLoad imtcp
   $InputTCPServerRun 514

3. Include all configuration files:

$IncludeConfig /etc/rsyslog.d/*.conf

4. Forward the logs to the EventLog Analyzer server:

# For UDP
*.* @<ELA_SERVER_IP>:514

# For TCP
*.* @@<ELA_SERVER_IP>:514

1. For syslog-ng:

1. Open /etc/syslog-ng/syslog-ng.conf.

2. Add the following configuration:

destination d_ela { tcp("<ELA_SERVER_IP>" port(514)); };
log { source(s_src); destination(d_ela); };

1. Replace <ELA_SERVER_IP> with the IP address of the EventLog Analyzer server.


Step 4: Restart logging services

• For rsyslog:

sudo systemctl restart rsyslog

• For syslog-ng:

sudo systemctl restart syslog-ng

Validation and testing

1. Log in to the EventLog Analyzer web console.
2. Navigate to Log Search or Syslog Devices.
3. Run a test message from the Unix machine: logger "Test log from Unix system"

4. Confirm that the test log appears in EventLog Analyzer.
5. Ensure expected logs (e.g., auth logs, application logs) are being received.

Tips

• Use separate configuration files (e.g., forward.conf) instead of editing the main config.
• Regularly monitor log flow after configuration.
• Enable timestamps and facility-based filtering if required for more structured log analysis.
• When forwarding audit logs, sometimes default policies in Red Hat systems with Security enhancement (SElinux) won't allow the audit logs to be read. Refer to Troubleshooting tips.
