1.)
Ensure that actions have been associated for the attribute that generated the alarm.

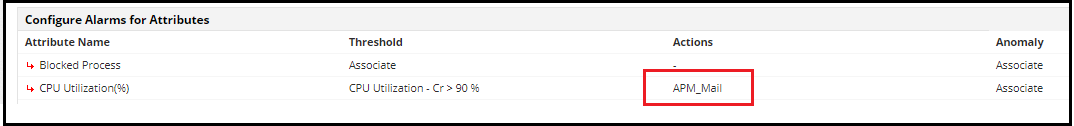

For example, if the CPU utilisation of the server exceeded the permissible levels and generated the alarm,
navigate to
Monitor page->
Configure Alarm
and
ensure that Actions are associated with this attribute.
2.)
If this is an Email action, from
Action Drop down->View Action->
Execute the action manually
and check if the mail action works.
If it fails and points to an error related SMTP, then the action could not have been triggered due to the SMTP issue.
To test SMTP server, refer this
KB
.
3.)

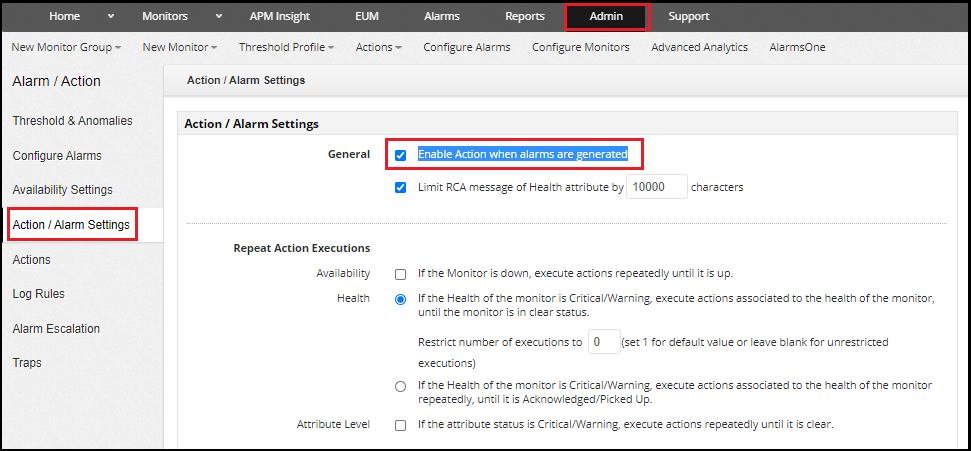

If SMTP works, navigate to
Admin->
Action\Alarm settings
tab and check if “
Enable Action when alarms are generated
” field is checked.
4.)

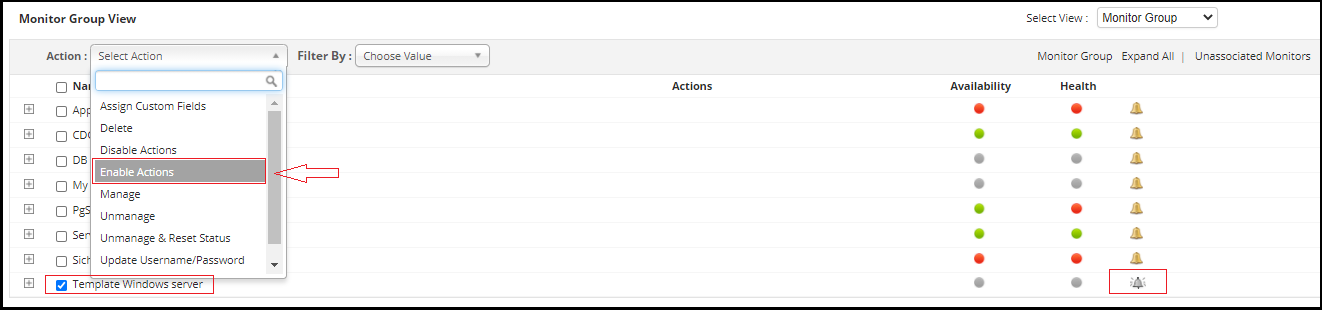

If the above field is checked and the monitor is present in any of the groups, verify whether actions are enabled in the group level. This can be verified from the
Monitor group view
as show in the screenshot below
.
6.)
If all of the above configurations have been enabled, please raise a ticket with the
Applications Manager
support
team along with all the configuration and support
file
.
