Analyzing AWS VPCs in DDI Central

DDI Central enables you to visualize, monitor AWS VPCs and derive actionable insights as part of its Cloud Observability Integration.

With centralized access to key VPC metadata, subnet allocations, EC2 usage, RDS states, load balancers, and more, DDI Central acts as your one-window interface to govern IP identity in hybrid and cloud-native environments.

What are AWS VPCs?

AWS VPC (Virtual Private Cloud) is Amazon's virtual network environment that allows you to launch AWS resources like EC2, RDS, or Lambda inside a logically isolated section of the AWS cloud.

It gives you control over:

  • Your private IP address ranges (via CIDR blocks)
  • Subnet definitions
  • Route tables and internet gateways
  • Network security via security groups and ACLs

Here's how to access and analyze AWS VPCs in DDI Central:

  1. Log into DDI Central using the web UI. Only an Admin or Operator with pertinent access privileges to a cloud cluster can access a Cloud Observability cluster.
  2. Select an AWS-integrated Cloud Observability Cluster, created during cloud integration setup, from the top right corner within the Web UI.
  3. Navigate to IPAM->VPC menu inside the selected cluster:
    • Click the VPC tab at the top of the page
    • This opens a dedicated dashboard for AWS VPC observability
  4. Choose a Region
    Use the dropdown in the top-right corner to:
    • Select a specific AWS region (e.g., ap-east-1 for Hong Kong)
    • All data displayed in the dashboard — graphs, charts, and tables — will be based on your region selection
  5. Explore the VPC Dashboard.

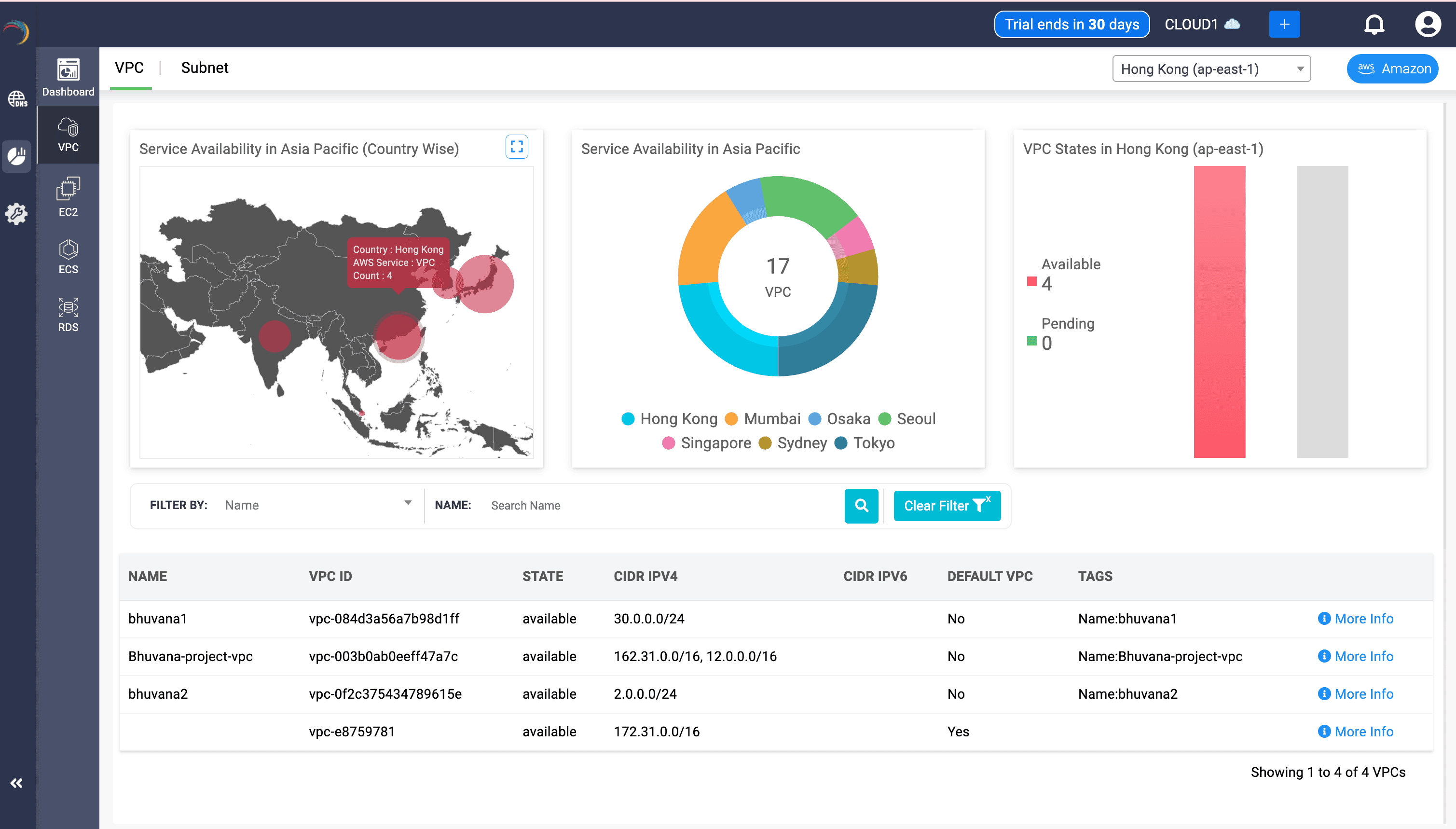

    The rich visual dashboard provides a macro-level understanding of where your AWS VPC resources are deployed across AWS's geographical datacenters, enabling strategic resource placement and availability checks.

    • Map Panel (Left)
      • Visualizes the geographic spread of AWS VPCs with proportional heatmap bubbles. This enables admins to identify regional density and prioritize capacity expansion or redundancy.
      • Tooltip highlights:
        • Country (e.g., Hong Kong)
        • AWS Service: VPC
        • Count: Number of active VPCs in that country
    • Donut Chart (Center)
      • Displays total VPCs (17) grouped by region (e.g., Hong Kong, Mumbai, Sydney). This drives admins to undertake comparative planning across regional data centers.
    • Bar Graph (Right)
      • Segregates VPCs in Hong Kong into Available and Pending states. It helps admins to monitor provisioning delays or anomalies in real time.
    • Table View (Bottom)
      • Key Fields:
        • VPC Name and ID: Identification of each VPC instance
        • State: Indicates whether VPC is ready for use
        • CIDR IPv4/IPv6: IP ranges assigned for internal routing
        • Default VPC: Yes/No status to indicate AWS auto-created VPCs
        • Tags: Descriptive metadata
      • The table offers filterable, searchable breakdown for operational tracking.
  • Deep Subnet Insights

    To drill more details about the Subnet Utilization in a VPC, click the More details link in the extreme right end. This takes you to a dedicate page within the VPC dashboard. This page in DDI Central gives you micro-level clarity inside your AWS VPCs. Whether you’re troubleshooting DHCP scope exhaustion, planning IPv6 rollout, or reviewing address hygiene, this view acts as your control tower.

    Here you can see six tabs below a specific VPC. Navigate to the Subnet tab to gather more details on subnet behavior and resource usage inside a selected VPC.

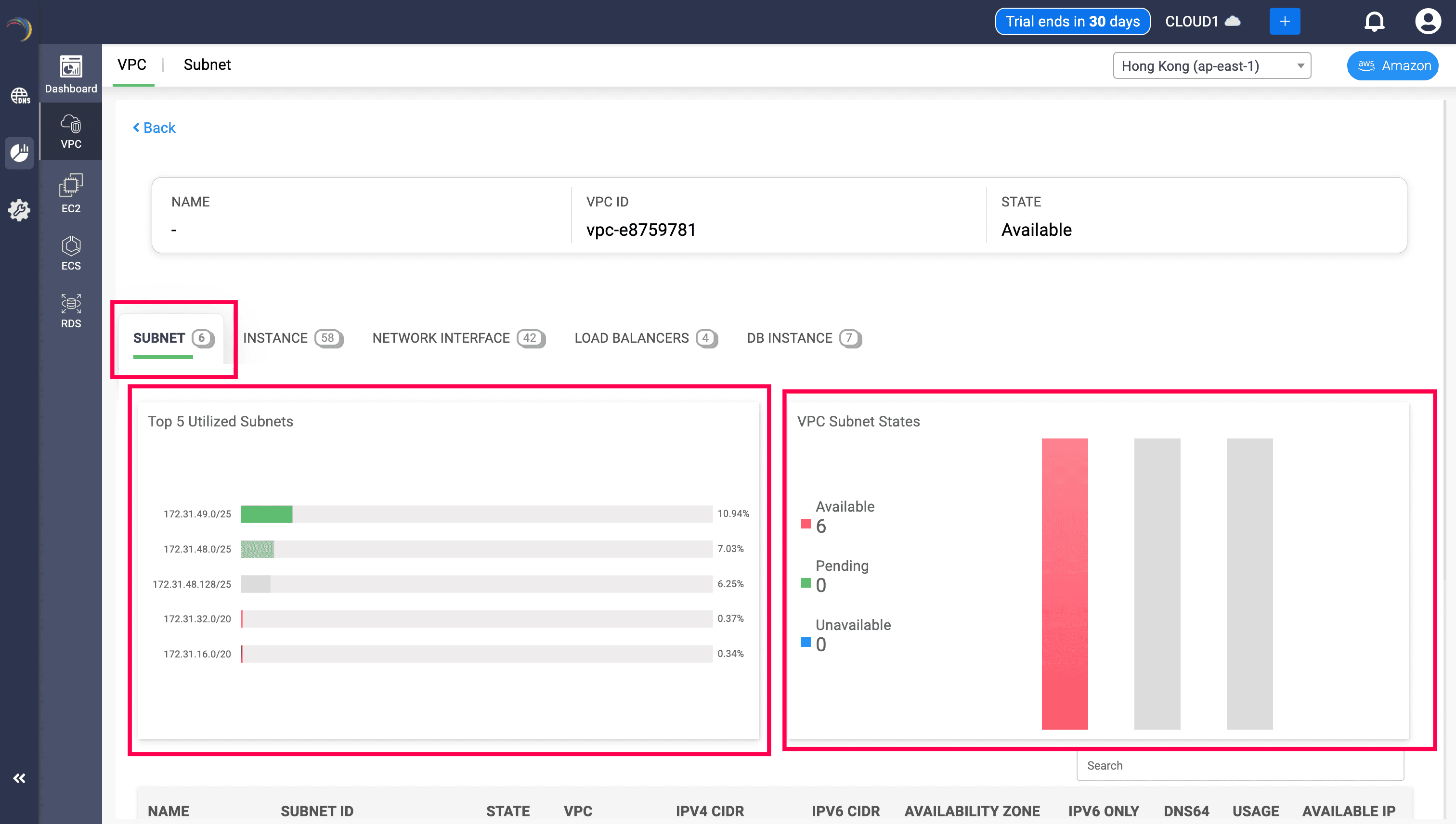

    VPC Subnet Dashboard Screenshot

    There are three powerful sections under the Subnet tab:

    1. Top Subnet Utilization Bar Chart (Left Side)

    • Displays the top 5 subnets with the highest IP address consumption.
    • Each bar represents a subnet’s total IP range and the percentage of it currently used.

    This section instantly identifies IP usage hotspots across your VPC — enabling you to detect:

    • Subnets nearing exhaustion (e.g., 80%+ used)
    • Underutilized subnets (e.g., 10–20% used)
    • Imbalanced address planning

    This insight helps you rebalance IP allocations before you run out of space or create inefficient subnet layouts.

    2. VPC Subnet State Distribution (Right Side)

    • Visualizes the current lifecycle states of all subnets within the VPC:
      • Available: Active and provisioned
      • Pending: Still provisioning
      • Unavailable: Deleted, unreachable, or with failed status

    Enables health monitoring of your subnet landscape. You can:

    • Detect provisioning delays
    • Confirm successful subnet rollout
    • Catch misconfigurations that may render subnets unavailable

    3. Subnet Inventory Table (Bottom)

    The table offers the most complete view of each subnet’s health, capacity, and location in the cloud. Whether you're troubleshooting connectivity issues, scaling infrastructure, or cleaning up unused IP blocks— every field here helps you make faster, more accurate decisions.

    Subnet tab analytics in DDI Central

    How do each field empower administrators

    Field NameWhat It MeansWhy It Matters for Admins
    NAMEThe subnet's user-assigned name or tag (e.g., RDS-Pvt-subnet-2)Helps admins quickly identify subnets associated with specific projects, applications, or environments.
    SUBNET IDThe unique AWS-assigned identifier for the subnet (e.g., subnet-06b868d4ce40ea3d3)Required for automation, CLI commands, API calls, and scripting. It ensures there's no ambiguity between subnets.
    STATEOperational state of the subnet: “available” or “pending”Tells you whether the subnet is ready for use or still being provisioned.
    VPCThe ID of the VPC in which this subnet resides (e.g., vpc-e8759781)Essential for mapping subnets to their parent networks. Multiple subnets can exist across different VPCs.
    IPV4 CIDRThe IPv4 address block assigned to the subnet (e.g., 172.31.48.0/25)Shows the IP range available for use inside this subnet. Critical for IP planning and routing configurations.
    IPV6 CIDRIf enabled, shows the associated IPv6 CIDR blockIndicates whether the subnet supports IPv6, important for dual-stack or IPv6-native deployments.
    AVAILABILITY ZONEThe physical zone in which the subnet is deployed (e.g., ap-east-1a)Allows admins to ensure HA and fault tolerance by distributing subnets across multiple zones.
    IPV6 ONLYDisplays Yes/No if the subnet supports only IPv6 (Yes = IPv4 disabled)Useful for verifying whether the subnet is intentionally IPv6-only or legacy dual-stack.
    DNS64Indicates whether DNS64 translation is enabled (Yes/No)DNS64 allows IPv6-only clients to resolve IPv4 destinations. Important for compatibility with IPv4-only apps.
    USAGEPercentage of IPs currently allocated or consumed in the subnetA real-time health indicator showing how “full” the subnet is. Useful for forecasting exhaustion.
    AVAILABLE IPThe actual number of IPs still available in the subnet (e.g., 114, 4.1K)Gives precise capacity planning insight—lets admins know when to reclaim, expand, or reallocate address space.

    Why It's Effective

    This data in whole enables administrators to:

    • Audit current IP consumption in real time
    • Spot subnets that need expansion or reassignment
    • Validate IPv6 readiness and DNS64 compatibility
    • Plan proactive scaling without last-minute chaos
  • EC2 Instance Overview

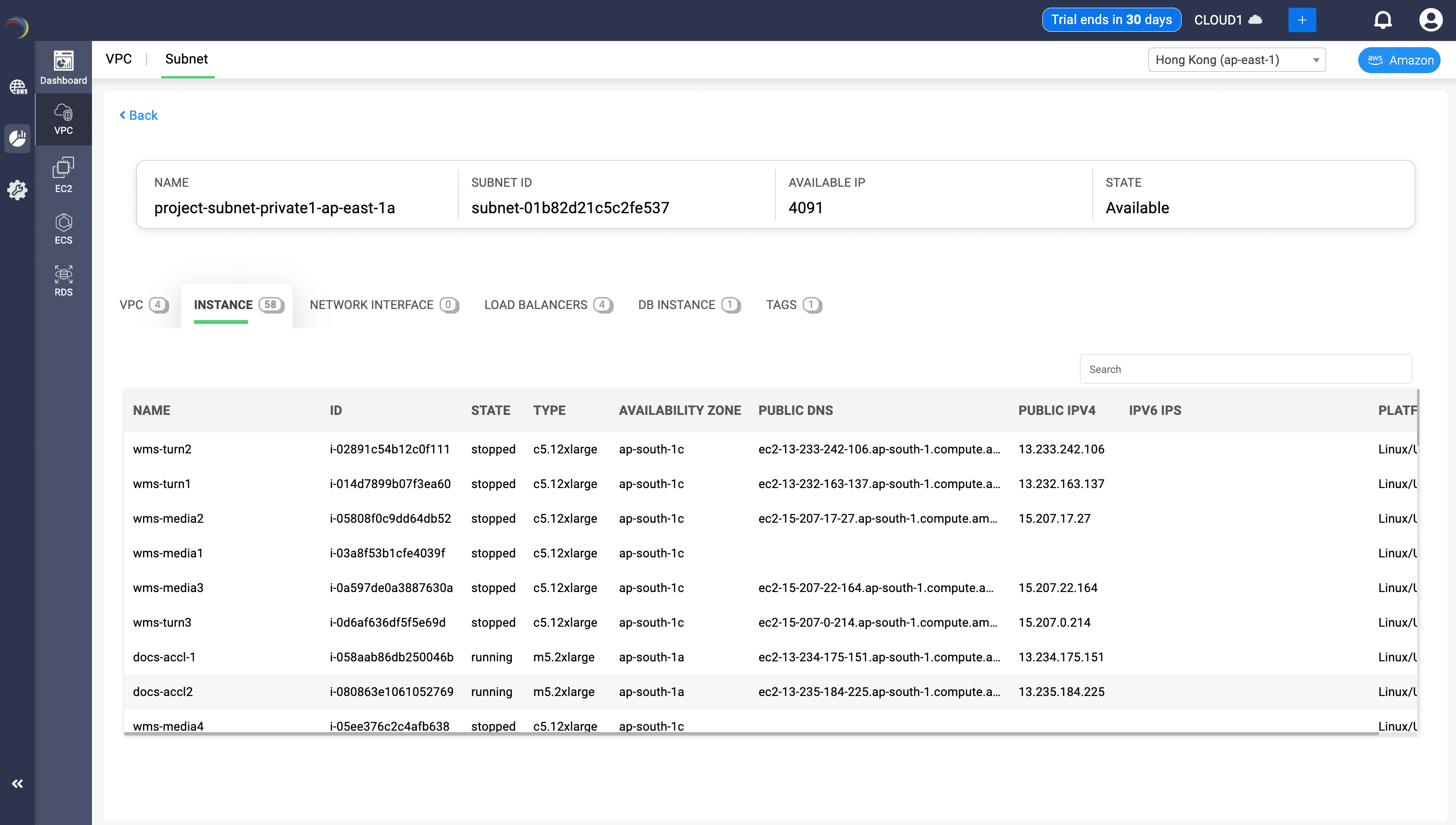

    Now navigate to the Instance tab. This view displays all EC2 virtual machines (instances) tied to that VPC — giving admins direct visibility into compute resources and their current operational and networking state. DDI Central will now display a detailed list of EC2 instances deployed within this VPC.

    EC2 Instance Overview in DDI Central

    Each instance is listed with the following key fields:

    Field NameWhat It Tells YouWhy It Matters for Admins
    NAMEThe user-friendly label assigned to the instance.Helps identify the business context of the VM (e.g., "wms-turn2" may relate to a workload or app function).
    IDThe AWS-assigned Instance ID (e.g., i-02891c54b12c0f111).Required for automation, IAM policies, tagging, or linking to other AWS services.
    STATEWhether the instance is running, stopped, or in another transitional state.Allows admins to verify if services are available, or if a resource has been decommissioned.
    TYPEThe performance class of the instance (e.g., c5.12xlarge, m5.2xlarge).Critical for analyzing compute cost, capacity, and workload suitability.
    AVAILABILITY ZONEIndicates the specific zone within the region where the instance is deployed (e.g., ap-south-1c).Ensures high availability through geographic distribution and can guide subnet placement.
    PUBLIC DNS / PUBLIC IPv4The public-facing address (and hostname) of the instance.Useful for SSH access, remote troubleshooting, and DNS-based tracing.
    PLATFORMThe operating system running on the instance (e.g., Linux/Unix).Confirms compatibility with workloads, agents, or OS-specific policies.

    Why It's Effective

    This data in whole enables administrators to:

    • Allows centralized visibility into cloud-based compute assets from within the IPAM layer.
    • Helps validate zone diversity and balance for DR/HA planning.
    • Allows you to track instance availability and spot dormant or stopped VMs that can be deprovisioned.
    • Public DNS records make it easy to trace traffic behavior back to a source instance.
  • Elastic Network Interface (ENI) Snapshot

    Go to the Network Interface tab beside Instances. DDI Central displays every Elastic Network Interface deployed within the selected VPC.

    ENI table in DDI Central

    From the same Network Interface tab, scroll further towards right to quickly view the per-interface address mapping. DDI Central makes sure to display deeper address-layer data, helping admins trace every bit of IP allocation tied to an ENI.

    ENI Address Mapping Details

    What does the table say

    Field NameWhat It MeansWhy It Matters
    NAMEThe user-friendly name of the ENIUseful for labeling or identifying purpose-specific ENIs
    IDAWS-assigned unique identifier (e.g., eni-0fb5f57cf9dfe51a3)Required for CLI operations, automation, and scripting
    SUBNET IDIndicates which subnet this ENI belongs toUseful for subnet-bound security tracing
    VPC IDParent VPC of the ENIHelps visualize ENI placement in network topology
    INSTANCE IDThe EC2 instance the ENI is attached toCorrelates virtual machines to network interfaces
    AVAILABILITY ZONERegion subdivision hosting the subnet (e.g., ap-east-1b)Helps plan zone-level HA or zonal failover designs
    SECURITY GROUP NAMEHuman-readable name of security policyIndicates which rule set is applied to the ENI traffic
    SECURITY GROUP IDAWS identifier for the security group (e.g., sg-c57f7dad)Enables fine-grained policy enforcement and audit trails
    PUBLIC DNSResolves public-facing DNS endpoint if assignedEnables DNS-based tracing and resolution
    MAC ADDRESSHardware address of the ENIIdentifies interface at Layer 2 or for DHCP-based configs
    PRIVATE IPV4Internal IP used within the VPCCore to routing, security policies, and app connectivity
    PRIVATE DNSDNS record mapped to internal IPEnables internal name resolution within the VPC
    PUBLIC IPV4The public-facing IP assignedRequired for internet access or SSH/RDP visibility
    IPV6 IPSAny IPv6 addresses assignedIndicates readiness for IPv6 workloads
    STATUSCurrent state (e.g., in-use)Helps detect stale or active network interfaces

    Why It's Effective

    • Allows admins to verify which interfaces are live, associated, or orphaned
    • Great for tracing network bottlenecks or firewall rule failures
    • Centralizes security group-to-interface visibility
    • Crucial for troubleshooting “no connectivity” issues from instances or services
    • Provides end-to-end address tracking for security audits and troubleshooting
    • Helps avoid duplicate IPs or binding failures across reboots or scaling events
    • Ideal for incident forensics or confirming DNS-to-IP linkages
    • Supports compliance reporting with MAC/IP/DNS binding logs
  • 9. Load Balancer Intelligence

    Now switch to the Load Balancers tab within the selected VPC view. DDI Central displays an insightful table that provides a unified view of all Elastic Load Balancers (ELBs) associated with the selected AWS VPC. It helps administrators assess traffic flow distribution, high availability, and fault tolerance.

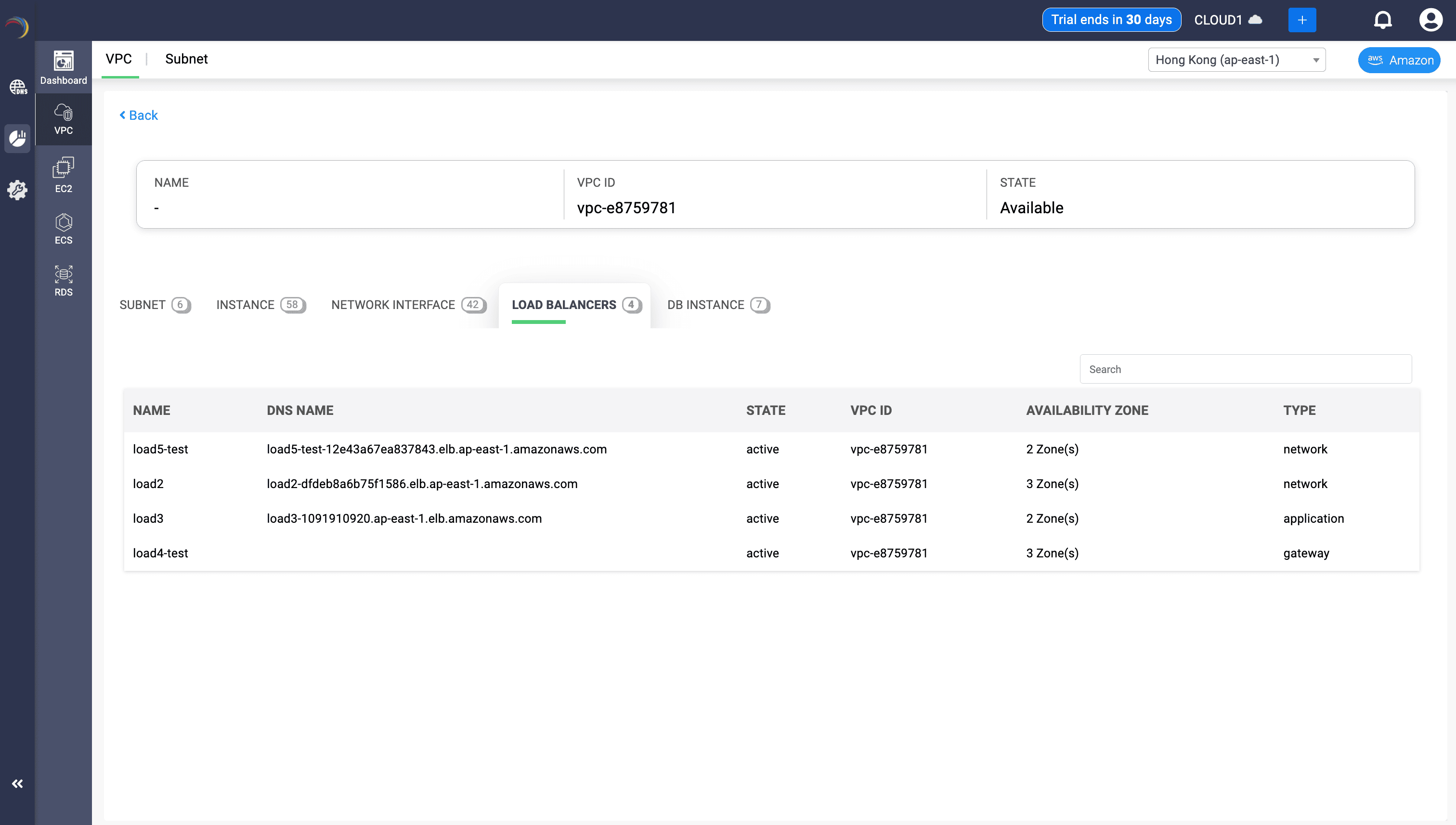

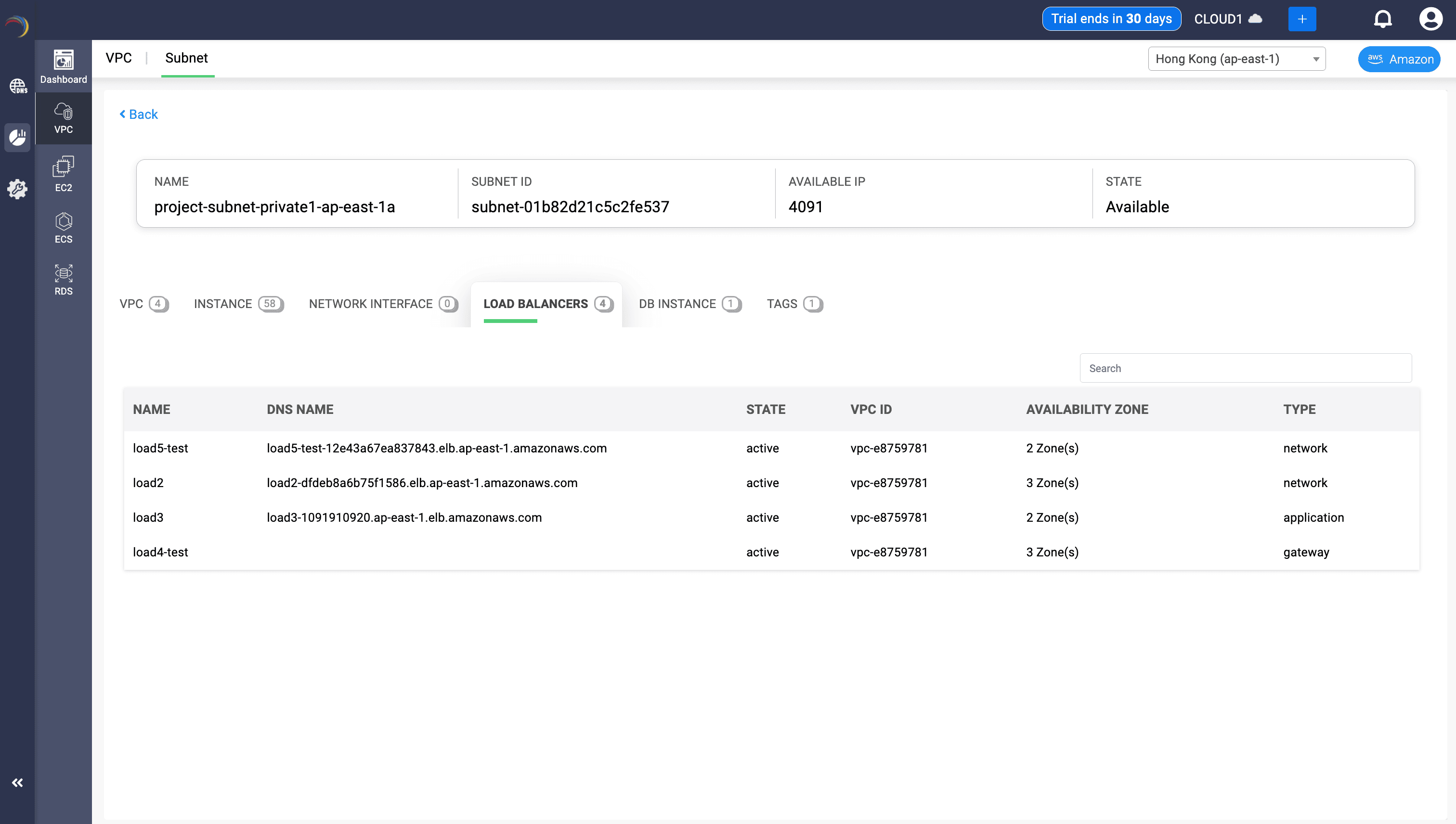

    DDI Central Load Balancer View

    The table presents the following insights:

    FieldWhat It RepresentsWhy It Matters
    NameUser-assigned identifier for the Load Balancer (e.g., load5-test)Helps distinguish between different ELBs across staging, production, or test environments.
    DNS NameEndpoint used by clients to reach the ELB (e.g., *.elb.amazonaws.com)Critical for traffic routing and ensuring DNS resolves correctly for your apps.
    StateIndicates if the ELB is active or inactiveShows readiness for use or if troubleshooting is required for deactivated ELBs.
    VPC IDThe virtual network the ELB belongs to (e.g., vpc-e8759781)Ensures the ELB is correctly placed within the expected network boundary.
    Availability ZoneNumber of AZs spanned (e.g., 2 Zone(s), 3 Zone(s))Indicates fault tolerance and resiliency — more zones mean better redundancy.
    TypeThe ELB category: network, application, or gatewayHelps match the load balancer to the correct OSI layer and traffic handling behavior.

    Why It's Effective

    • Ensures that load balancers are properly distributed across zones for high availability.
    • Confirms the right type of load balancer is deployed per use case.
    • Validates that the DNS entry is accessible and resolves correctly to maintain uptime.
    • Allows admins to act quickly if a load balancer appears inactive, misconfigured, or not adequately zoned.
  • Load Balancer Intelligence

    Now switch to the Load Balancers tab within the selected VPC view. DDI Central displays an insightful table that provides a unified view of all Elastic Load Balancers (ELBs) associated with the selected AWS VPC. It helps administrators assess traffic flow distribution, high availability, and fault tolerance.

    DDI Central Load Balancer View

    The table presents the following insights:

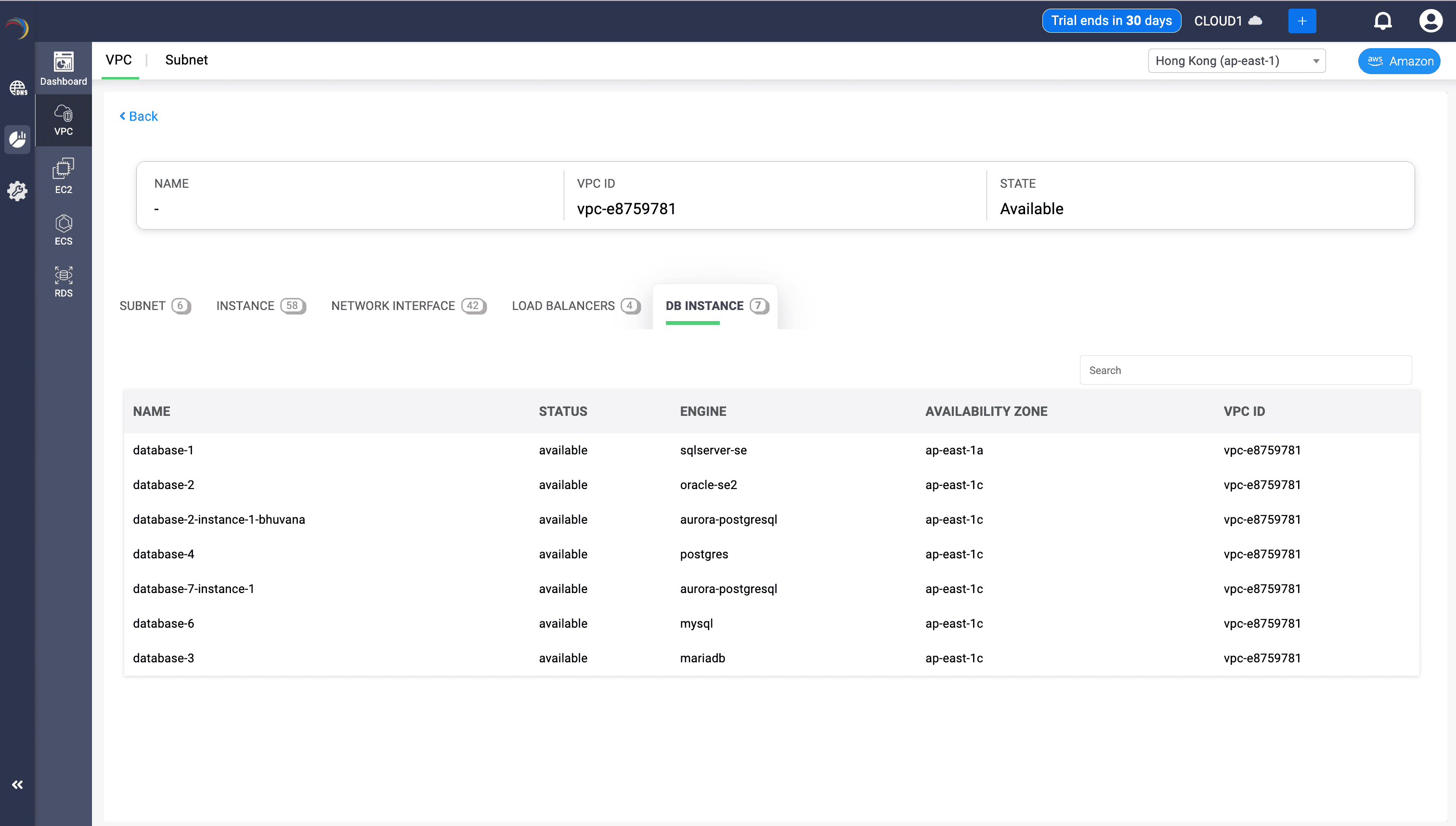

    The RDS inventory of a VPC presents the following insights:

    NAMESTATUSENGINEAVAILABILITY ZONEVPC ID
    database-1availablesqlserver-seap-east-1avpc-e8759781
    database-2availableoracle-se2ap-east-1cvpc-e8759781
    database-2-instance-1-bhuvanaavailableaurora-postgresqlap-east-1cvpc-e8759781
    database-4availablepostgresap-east-1cvpc-e8759781
    database-7-instance-1availableaurora-postgresqlap-east-1cvpc-e8759781
    database-6availablemysqlap-east-1cvpc-e8759781
    database-3availablemariadbap-east-1cvpc-e8759781

    Why It's Effective

    • High Availability Planning: The AZ field helps ensure your RDS instances are spread across multiple zones for fault tolerance.
    • Backend IP Planning: Knowing the status and engine types helps you align database traffic, IP allocation, and DNS naming schemes.
    • Troubleshooting: Quickly detect failed or missing RDS components in your service chain.
    • DNS Routing Validation: The presence and health of these RDS entries validate DNS-based application failovers.
  • Analyzing AWS Subnets in DDI Central

    With AWS integration, network administrators can extract deep value from AWS subnet visualizations within DDI Central. Rather than focusing on just the VPC layer, this guide emphasizes subnet-level observability—your most granular and dynamic layer for IP planning, access routing, and service segmentation.


    In AWS:

    • A VPC (Virtual Private Cloud) is a logically isolated network environment—a container for networking resources like subnets, route tables, and gateways.
    • A Subnet is a segmented portion of a VPC’s IP address range that you deploy resources into (like EC2 instances).

    In the context of VPCs (Virtual Private Clouds) in AWS, a subnet is a segment of the IP address range of a VPC where you can place your resources, such as EC2 instances, RDS databases, and Lambda functions.

    Here’s a breakdown:

    What Is a Subnet:

    • A subnet is a range of IP addresses within a VPC.
    • It helps you organize and isolate resources based on function, security, or availability.

    Relationship to VPC:

    • A VPC provides a private, isolated network environment with a defined CIDR block (e.g., 10.0.0.0/16).
    • Subnets are slices of that block (e.g., 10.0.1.0/24, 10.0.2.0/24), each associated with a specific Availability Zone.

    Types of Subnets:

    • -Public Subnet: Has a route to the internet through an internet gateway (used for web servers, bastions).
    • -Private Subnet: Has no direct internet route (used for databases, internal services).

    What are Tags? Why do subnets often have more visible or required tags?

    AWS allows tagging of almost all resources, including VPCs and subnets. Tags are key-value pairs (e.g., Environment: Production) used for:

    • Resource grouping
    • Cost allocation
    • Access control (via IAM policies)
    • Automation workflows

    VPCs can be tagged, but often serve as a broader container. On the other hand, subnets are closer to where resources live and route traffic—so tagging them helps AWS services, administrators, and automation tools make better decisions.

    Subnets and Availability Zones (AZ)

    Subnets within a VPC must be associated with specific Availability Zones (AZs), and they can span different AZs. A VPC’s CIDR block (e.g., 10.0.0.0/16) is a large IP address range that you can subdivide into multiple subnets. Each subnet is mapped to exactly one Availability Zone.

    You can (and should) create and spread multiple subnets in different AZs as it is essential for:

    • Highly available architectures (e.g., load balancers across multiple subnets)
    • Auto scaling groups
    • Database failover support
    • Disaster recovery

    Here’s how to access and analyze AWS VPCs in DDI Central:

    1. Open a Cloud Observability of your choice
    2. Navigate to IPAM->VPC menu inside the selected cluster

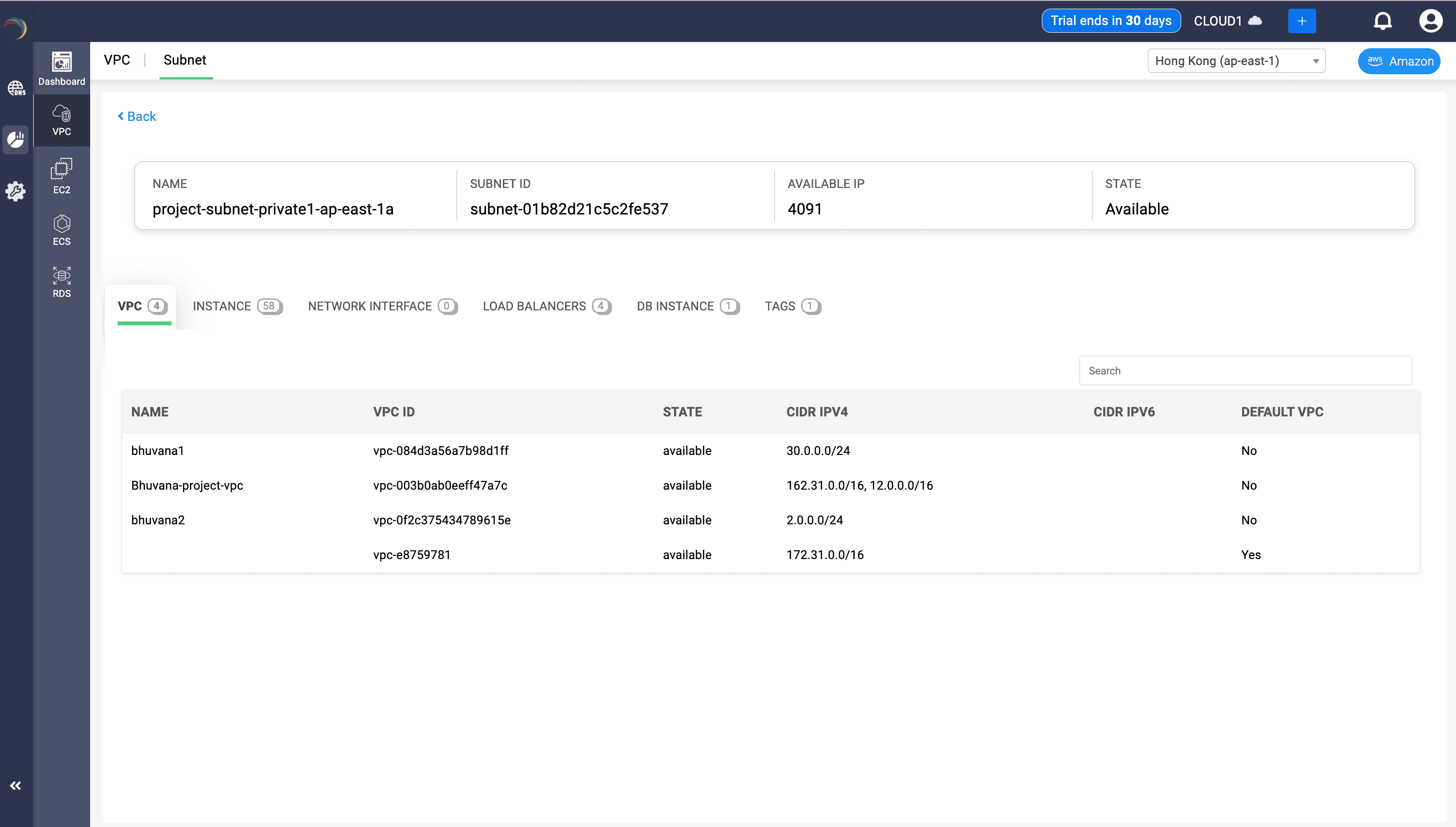

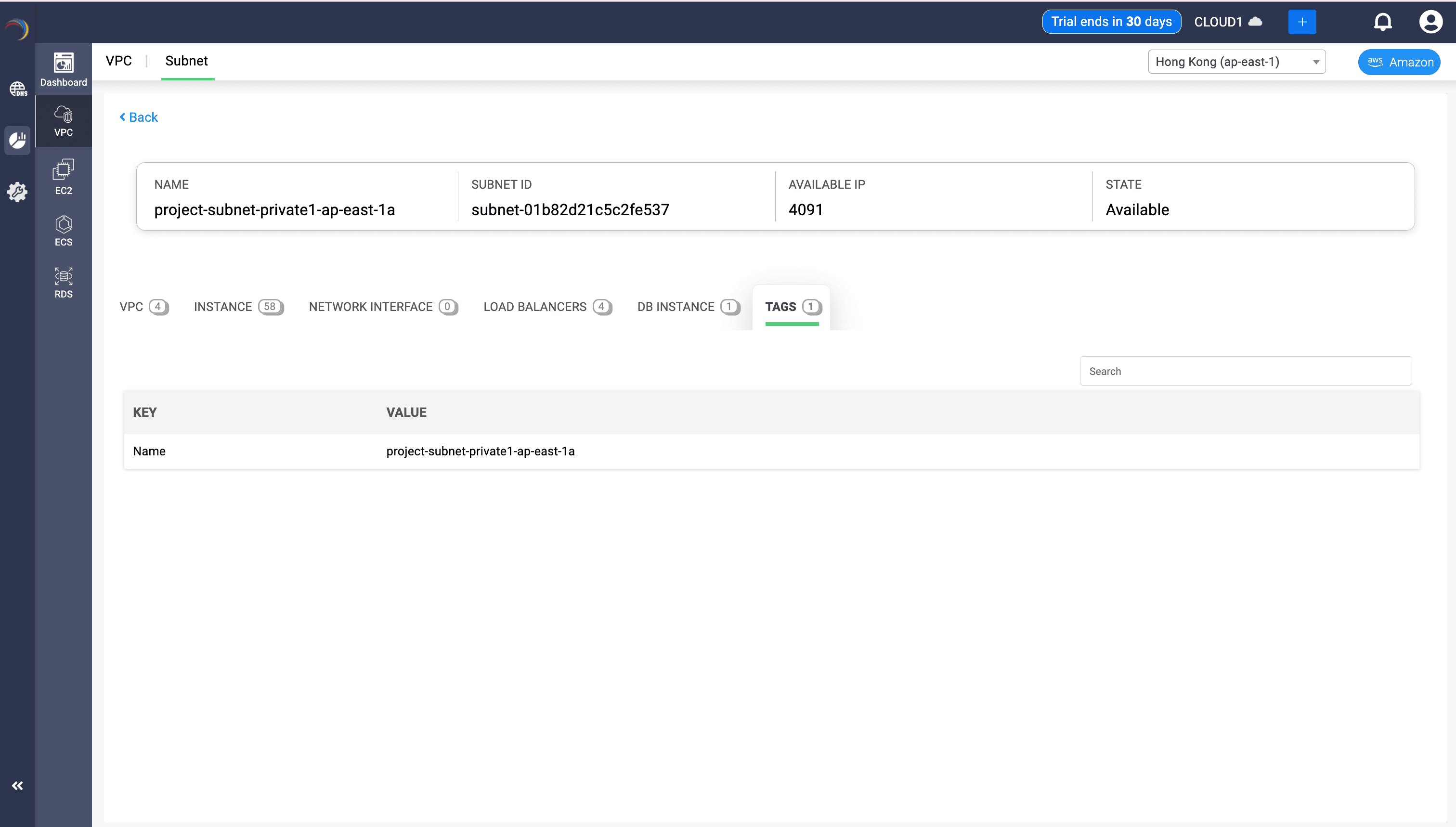

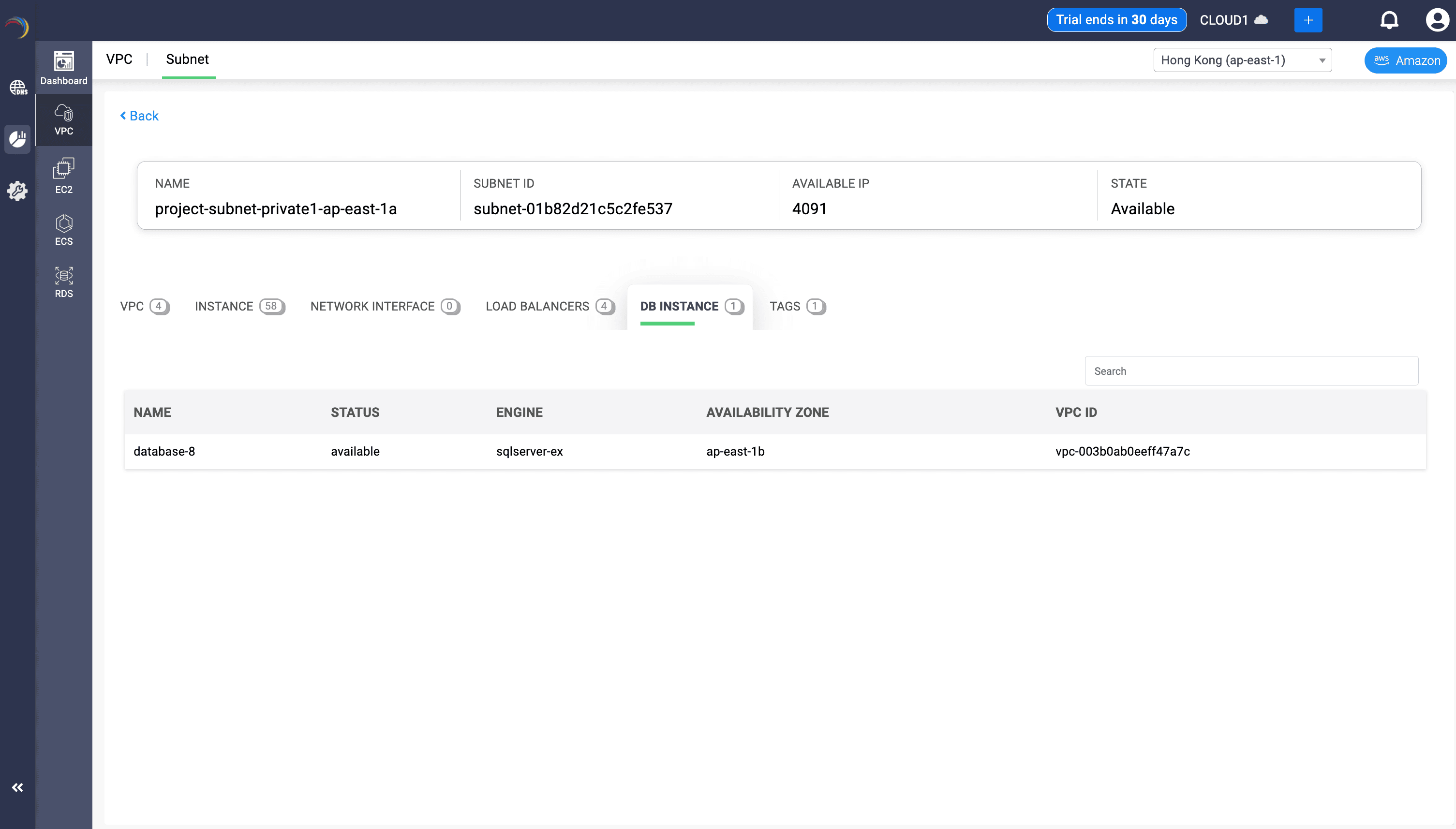

  • Click the Subnet tab at the top of the page. This opens a dedicated dashboard for Subnet observability

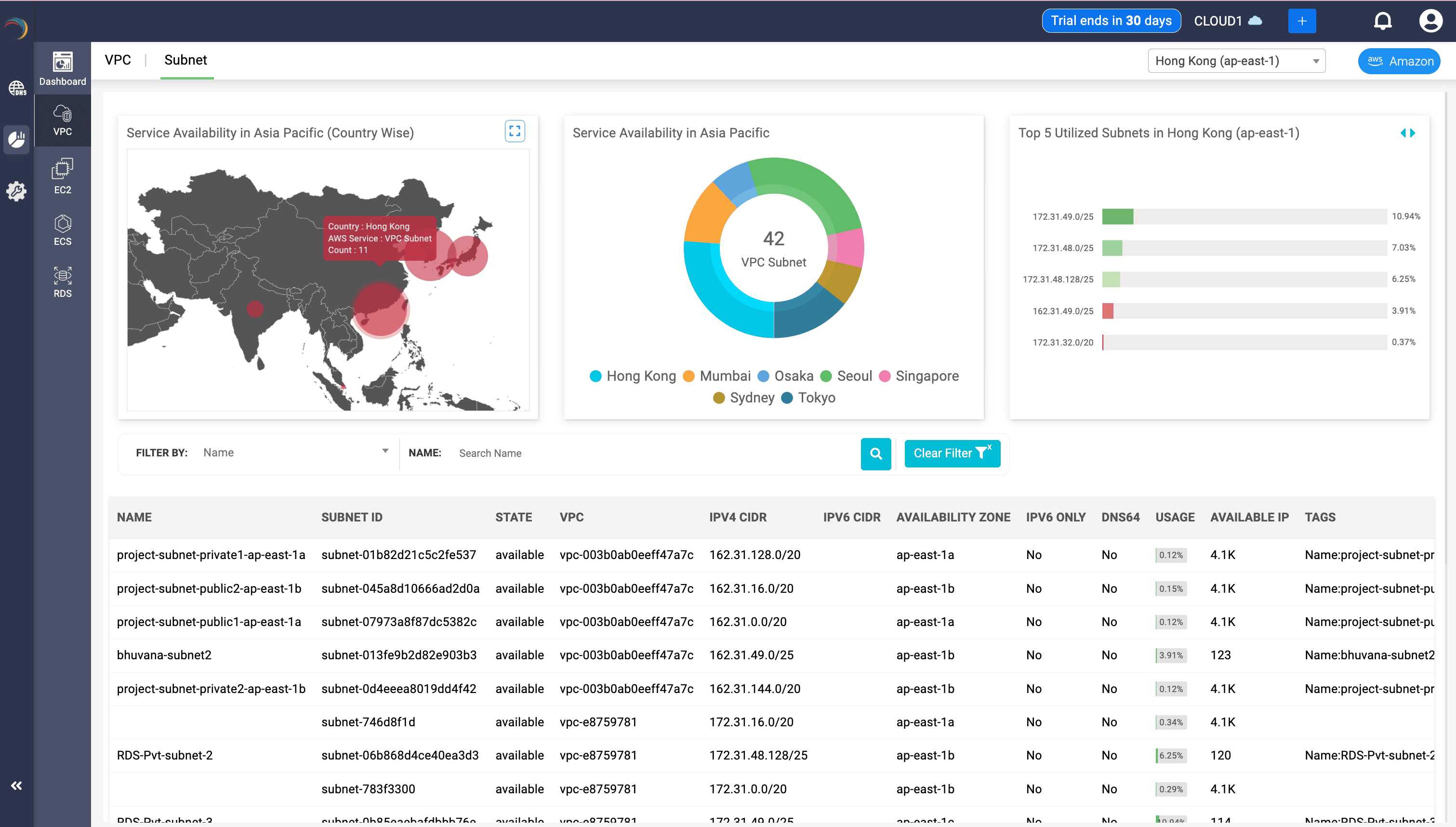

    DDI Central Load Balancer View

  • Subnet availability overview across multiple AZs

    This screen above provides an aggregated regional view of all subnets across multiple VPCs, empowering teams to understand how IP space is fragmented and utilized. In essence, this dashboard transforms raw subnet metadata into actionable intelligence—supporting cost control, risk mitigation, and uptime for network-driven workloads.

    • Map Panel (Left)
      • Displays subnet distribution by country using red heatmap overlays.
      • Tooltip shows:
        • Country (e.g., Hong Kong)
        • AWS Service: VPC Subnet
        • Count: Total subnets provisioned
      • This reveals regional subnet density and infrastructure concentration zones.
    • Donut Chart (Center)
      • Breaks down 42 subnets across APAC locations like Tokyo, Seoul, Hong Kong, and Singapore.
      • It offers a normalized visual of infrastructure deployment by region.
    • Top Utilized Subnets (Right)
      • Highlights top 5 subnets in Hong Kong with the highest IP utilization.
      • It enables Admins to quickly identify which subnets are nearing exhaustion for proactive expansion.
    • Table View (Bottom)
      • Key Fields:
        • Subnet Name: Human-readable context for project ownership or role (e.g., RDS, public, private)
        • ID: Unique reference for automation, config, and routing
        • State: Confirms health or availability of each subnet
        • Associated VPC: Shows which VPC each subnet belongs to—important for policy boundaries
        • (IPv4)CIDR: Displays subnet IP range for IP planning and overlap checks
        • Availability Zone: Ensures redundancy and AZ spread validation
        • IPv6 / DNS64: Flags subnets with special networking behavior
        • Usage: Quantified IP consumption—ideal for proactive alerting and capacity planning
        • Available IP: Real-time visibility into how much space remains in each subnet
        • Tags: Provides metadata for ownership, billing, lifecycle stage (e.g., Name, Project)
    • Why This View Matters

      • Network teams can monitor subnet saturation before IP exhaustion or outages occur
      • Cloud architects can audit subnet-to-AZ distribution to maintain fault tolerance
      • Security admins can quickly scan for exposed or IPv6-enabled subnets
      • Ops can align usage and allocation with organizational tagging policies
      • Engineers can clean up low-usage or overlapping subnets
  • Associated VPCs with Subnet Context

    While the subnet is a slice of the VPC, this section helps confirm which VPCs the subnet lives under and their CIDR plans. This VPC tab contextualizes the subnet within the broader cloud network architecture—giving the admin the visibility to enforce policy, plan growth, and troubleshoot intelligently.

    DDI Central Load Balancer View

    • Fields:
      • Name: Identifies the VPC to which the subnet belongs or may be associated with. Useful for confirming environment boundaries (e.g., dev, test, prod).
      • VPC ID: A unique identifier that lets admins trace routing tables, internet gateways, and peering connections tied to the subnet. CIDR ranges (IPv4 and optional IPv6).
      • State: Verifies that the VPC is active and routable—important during provisioning or troubleshooting.
      • CIDR IPv4: Shows the IP range available in the VPC. Helps confirm whether the subnet’s IP block is within bounds and whether enough space exists for scaling.
      • CIDR IPv6: Indicates if the VPC is IPv6-enabled, helping admins plan for dual-stack or modern networking compatibility.
      • Default VPC: Flags whether the VPC is AWS’s default (auto-configured) or a custom-designed one—important for enforcing strict segmentation policies.
      • Ensures context when assessing routing behaviors or peering implications.

    Why It Matters in a Subnet View

    • Validates whether the subnet is part of a custom VPC with specific security/routing rules or a default VPC with more relaxed controls.
    • Assists in identifying overlapping IP ranges across VPCs that could cause routing conflicts or break peering setups.
    • Ensures subnet-to-VPC alignment before attaching route tables, NAT gateways, or deploying hybrid cloud connectors.
    • Helps in auditing and compliance: network teams can ensure workloads are deployed in the correct VPC context.
  • EC2 Workloads in Subnet

    DDI Central Load Balancer View

    Gives a list of virtual machines actively or historically using the subnet. It provides subnet-level visibility into the EC2 instances. Even in a read-only view, each field is rich with operational value for a network administrator overseeing workload distribution, access, and security posture. This view lets a network admin zoom in on how compute resources behave, communicate, and are distributed within a single subnet slice—essential for maintaining a secure, efficient, and well-architected cloud network.

    Fields:

    • Instance Name: Identifies workload role (e.g., media, WMS, docs). Helps in inventory management and naming convention enforcement.
    • ID: Unique identifier of each instance. Critical for correlating logs, automation scripts, and audits.
    • Instance State: Shows if the instance is running or stopped—useful for cost control, resource planning, and incident response.
    • Type: Indicates instance size and capacity (e.g., c5.12xlarge, m5.2xlarge). Helps gauge subnet resource density and impact on IP exhaustion.
    • Availability Zone: Reveals the AZ distribution of workloads—key for HA design and latency planning.
    • Public DNS / Public IPv4: Provides external reachability insights. Identifies which instances are internet-facing and subject to additional security scrutiny.
    • IPv6 IPs: Displays IPv6 readiness. Important for hybrid and modern app architectures.
    • Platform: Reveals the OS platform (Linux/UNIX) for OS-specific firewalling or patching compliance.
    • Helps determine traffic origin and capacity stress imposed on the subnet.

    Why This Matters in a Subnet View:

    • Confirms whether the subnet is hosting production-facing compute or backend-only workloads.
    • Enables rapid identification of improperly placed or idle/stopped instances.
    • Supports network isolation validation: e.g., whether public IPs should exist in this subnet.
    • Aids in identifying AZ imbalance that could affect availability or performance.
    • Improves capacity planning: is this subnet approaching IP exhaustion due to instance count?
  • Network Interface Mapping (ENI)

    DDI Central Load Balancer View

    This section displays all ENIs of a subnet.

    Fields:

    • Name / Subnet ID: Helps quickly identify and reference specific subnets in large VPC architectures.
    • VPC ID: Ties the subnet to its parent network boundary, important for routing, NATs, and gateways.
    • Instance ID: Shows which EC2 instances are attached to this subnet — helps understand workload distribution.
    • Availability Zone: Clarifies fault domain — helps ensure high availability through multi-AZ architecture.
    • Security Group / ID: Reveals which firewall rules govern traffic for instances in this subnet — crucial for audit and compliance.
    • Public / Private DNS: Indicates DNS naming for attached resources — aids in debugging and service discovery.
    • Public / Private IPv4: Lets you track assigned IPs — useful for IP planning, troubleshooting, and inventory management.
    • MAC Address: Can help in deep-level diagnostics, network capture correlation, or static IP assignments.
    • IPv6 IPs: Supports dual-stack visibility if the subnet uses IPv6 — important for modern network scaling.

    Why This View Matters:

    • Gives a per-subnet breakdown of all network interfaces (ENIs) and their associations.
    • Helps ensure proper IP segmentation, routing isolation, and AZ alignment.
    • Aids in troubleshooting (e.g., "Why can’t this instance reach the internet?") by cross-verifying IPs, AZ, SGs, and instance bindings.
    • Supports cost monitoring and capacity planning by viewing available IPs and usage density.
  • Load Balancers Active Within Subnet Scope

    Provides visibility into DNS-driven traffic handling for workloads hosted in or routed through the subnet's VPC.

    DDI Central Load Balancer View

    Fields:

    • Load Balancer Name: Identifies which load balancers are actively serving resources within this subnet. Helpful for quick correlation with infrastructure services.
    • DNS Name: Shows the publicly or internally resolvable name used by clients to reach services. Useful for testing, monitoring, and endpoint validation.
    • State: Indicates operational status (e.g., active/inactive). Helps quickly identify health or deployment issues tied to the subnet.
    • VPC ID: Verifies which VPC the load balancer belongs to. Ensures proper segmentation and routing.
    • Availability Zone (AZ): Reveals redundancy spread. Load balancers deployed across multiple AZs improve fault tolerance and load distribution.
    • Type: Shows the purpose of each load balancer (application, network, gateway). This helps in understanding traffic patterns and where in the OSI model the traffic is handled.

    Why It Matters:

    • Enables subnet-level troubleshooting when latency or access issues occur.
    • Helps assess whether application traffic is properly distributed across zones.
    • Validates whether load balancing is set up for public access, internal routing, or API gateway functions.
    • Supports planning for scaling, security group assignments, and subnet utilization.

    This view, even at a glance, is a tactical hub for understanding how load-balanced traffic flows through a network slice (subnet) in a complex AWS environment. Highlights DNS path redundancy and fault-tolerant delivery per subnet-aware applications.

  • RDS Instances Bound to Subnet

    Displays databases deployed in or routed through the subnet.

    DDI Central Load Balancer View

    Displays databases deployed in or routed through the subnet.

    • Fields:
      • Name: Identifies the database workload operating in this subnet. Useful for correlating network flows, auditing, and troubleshooting.
      • Status: Shows if the DB instance is healthy, pending, or failing—critical for real-time operational awareness.
      • Engine: Displays the database engine (e.g., sqlserver-ex), informing the admin about potential port/protocol needs and performance characteristics.
      • Availability Zone: Indicates which AZ this database resides in—important for understanding redundancy, failover design, and latency sensitivity.
      • VPC ID: Confirms the broader network boundary that governs this subnet, helping enforce routing, firewall, and segmentation policies.
      • Brings data-layer visibility to the network admin—align IP scopes to data workloads.

    Why This Matters in the Context of a Subnet

    • Confirms whether the subnet is serving critical back-end workloads like databases—useful for deciding whether the subnet should remain private (non-routable from the internet).
    • Helps with designing and validating subnet-AZ alignment (e.g., DBs in one AZ, apps in another for HA).
    • Supports IP planning—admins can ensure there's enough capacity left in the subnet for future DB replicas or read-only nodes.
    • Enables root-cause investigation in case of connection drops, latency spikes, or security incidents affecting data services.

    In short, this tab gives subnet-level clarity into how data workloads are distributed, isolated, and operating—essential for maintaining secure, high-performing infrastructure in cloud-native environments.

  • Tagging and Metadata Classification

    DDI Central Load Balancer View

    Tags are essential labels that offer structure to what could easily become a tangled web of IP ranges—ensuring governance, clarity, and agility across environments. Enables auditability, searchability, and billing segmentation by project, region, or department.

    DDI Central displays governance-level labels for the subnet.

    • Fields:
      • Key: User-friendly identifier for the subnet. Helps avoid confusion when managing dozens or hundreds of subnets across environments or regions.
      • Value: Conveys purpose, scope, location, and tier of the subnet (e.g., "project", "private1", "ap-east-1a"). This can inform routing, access, or automation decisions.

    Why It Matters (Especially on Subnets):

    • Clarity: Helps engineers quickly identify the role and region of a subnet without digging through IP ranges.
    • IAM & Automation: Enables fine-grained permissions and automation rules (e.g., “only allow tagging to ‘private’ subnets”).
    • Cost & Audit: Assists in cost attribution and usage reporting when subnets are tied to a project, team, or environment.
    • Filtering & Grouping: Allows dashboards, scripts, and inventory tools to filter subnets based on purpose or lifecycle (e.g., prod/dev/staging).
  • VPC Subnet Insights: Why It's Effective:

    Focusing on the subnet—not just the VPC—provides:

    • The most accurate visibility into address planning, usage, and exhaustion
    • A clean map between IP resources and workloads (EC2, ELB, RDS)
    • A scalable lens to manage DHCP scopes, DNS associations, and AZ-resilient design
    • Tight control over fragmentation and collision at the infrastructure edge

                    New to ADSelfService Plus?

                      • Related Articles

                      • DDI Central for Microsoft DNS DHCP

                        About ManageEngine DDI Central DDI Central is a comprehensive network management solution that unifies DNS, DHCP, and IP Address Management (IPAM) to enhance operational efficiency and network stability. It is deployed as an overlay on your existing ...
                      • AWS Integration with DDI Central

                        AWS Integration with DDI Central DDI Central seamlessly integrates with Amazon Web Services (AWS) to provide deep visibility and centralized oversight of key cloud infrastructure components— EC2 instances, ECS services, RDS databases, VPCs, and their ...
                      • Analyzing AWS EC2 Network Resources in DDI Central

                        Analyzing AWS EC2 Network Resources in DDI Central Amazon EC2 (Elastic Compute Cloud) is at the heart of most AWS deployments, powering scalable virtual machines for applications, services, and infrastructure workloads. But managing EC2 efficiently ...
                      • AWS Integration Dashboard in DDI Central

                        AWS Integration Dashboard in DDI Central DDI Central’s AWS integration dashboard provides network administrators a centralized, visual snapshot of their AWS resource landscape across VPC, EC2, ECS, and RDS services. This guide outlines how to ...
                      • AWS RDS Instance Observability in DDI Central

                        AWS RDS Instance Observability in DDI Central Amazon RDS (Relational Database Service) is a managed database platform that simplifies the deployment and scaling of databases like MySQL, PostgreSQL, SQL Server, and more. It abstracts infrastructure ...
