Objective

Some applications might record logs in the file system so the user can import the logs into EventLog Analyzer. These logs must be located in the Local file system of the EventLog Analyzer instance with the shared path of Windows OS and Linux OS or the S3 bucket. This article provides step-by-step instructions to import logs in EventLog Analyzer from the Remote path.

Prerequisites

• Availability of Application license purchased.

  EventLog Analyzer consumes one application license for each import and each unique log format identified during log file import - Importing the same file twice with different formats will consume two licenses.

• The file to be imported has to be plain text and not encrypted. EventLog Analyzer archived files with .zip, .gz and .7z formats are supported for import.

• The necessary ports and permissions to perform log import are provided in this chart:

Steps to follow

Importing log files from a remote path in EventLog Analyzer is possible using one of these protocols:

• SMB - Windows

• FTP

• SFTP


Importing the log file from a remote location requires authentication. This authentication can be achieved in two ways:

• Username and password - Used by SMB - Windows, FTP and SFTP


• SSH private key file sharing (specific to SFTP protocol)

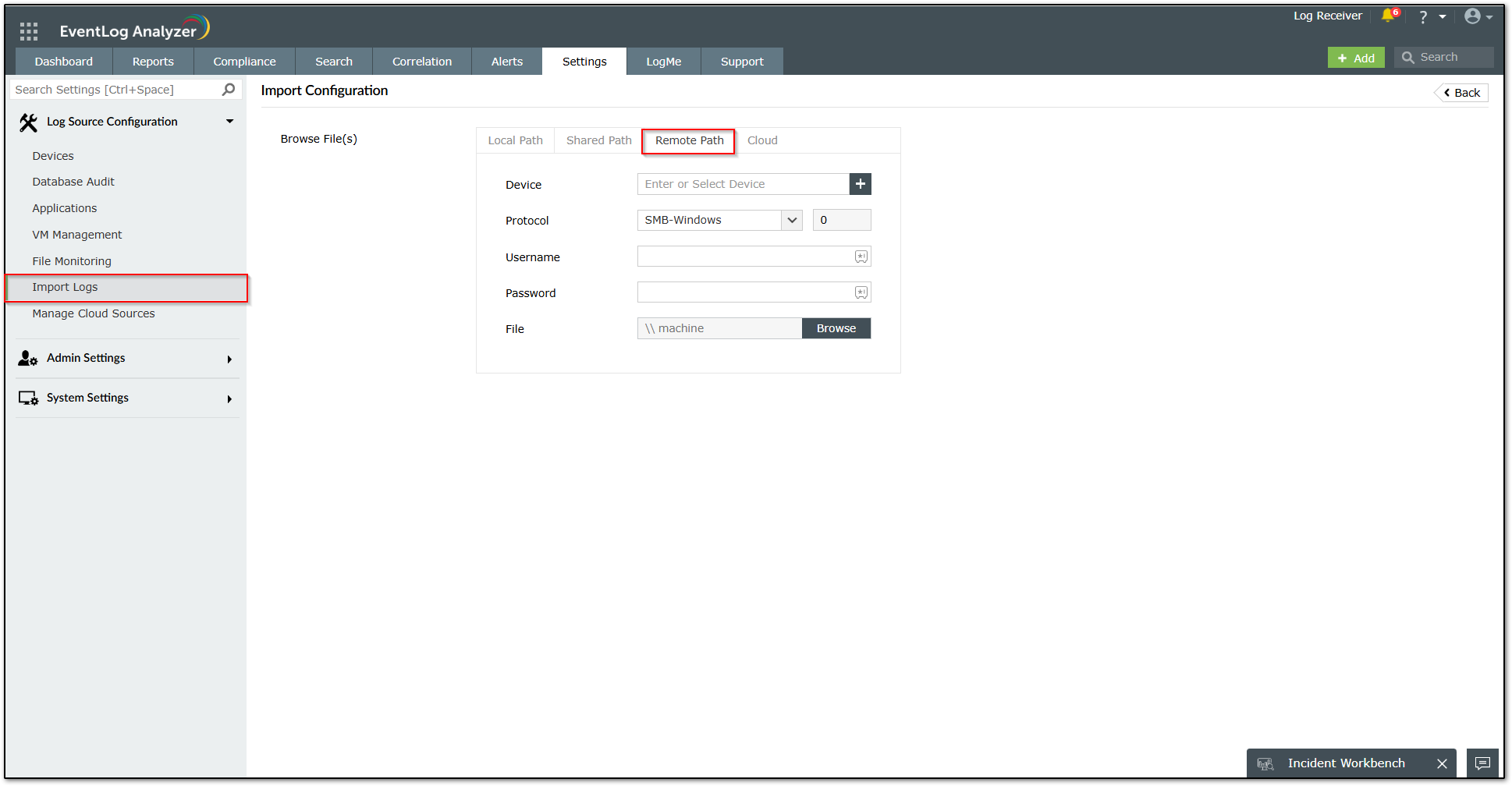

   Case 1: Authentication type: Username and password


• Step 1: Click the + Import Logs option in the top right corner of the screen.

• Step 2: In the Browse File(s) section, select Remote Path tab.

• Step 3: In the Device field, enter the device name from which you wish to import the log file or click the + icon to browse for and select the Windows device.

• Step 4: In the Protocol drop-down, choose the required protocol, SMB-Windows or FTP and SFTP, and enter the port number.

• Step 5: Provide the Username of the remote device, and the Password field will pop up.

• Step 6: Enter the Password in the field.

• Step 7: Use the Browse button to search for and select the file to be imported and click OK.

• Step 8: The Store Logs for Short-term option will retain the imported log data in EventLog Analyzer for two days. If the option is left unchecked, the logs will be stored as per your data retention configuration.

• Step 9: You can also schedule the log collection by reading the same file on a periodic basis or by creating a specific file naming convention for these files.

• Step 10: Click Import to save the configuration.

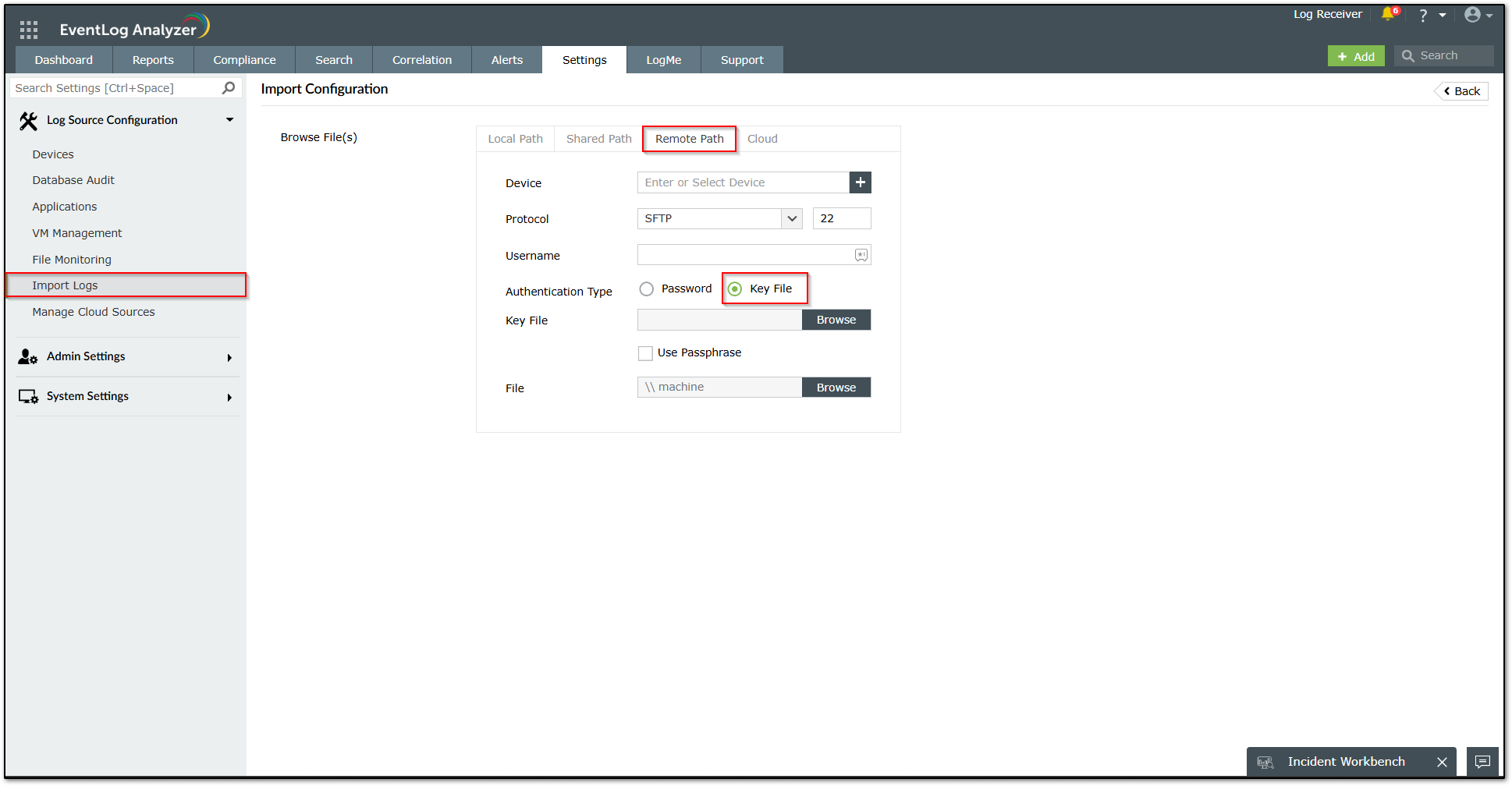

 Case 2: Authentication type: SFTP-based SSH private key file sharing

• Step 1: From the Browse File(s) options listed, select Remote Path.

• Step 2: In the Device field, enter the device name from which you wish to import the log file. Alternatively, you can click the + icon to browse for and select the Windows device.

• Step 3: Choose SFTP as the protocol and enter the port number (default port value is 22).

• Step 4: Provide the Username and choose Key File as the Authentication Type.

Note: EventLog Analyzer supports OpenSSH key file format only.

• Step 5: Click Browse and select the key file from the device. You can refer to this page to learn how to generate a key file with ssh-keygen, a standard component of the Secure Shell protocol.

• Step 6: If the key file is passphrase protected, select the Use Passphrase check box and enter the phrase in the field.

• Step 7: In the File field, click the Browse button to browse for and select the file to be imported.

• Step 8: The Store Logs for Short-term option will store the imported log data in EventLog Analyzer for two days. If the option is left unchecked, the logs will be stored as per your data retention configuration.

• Step 9: You can also schedule the log collection by reading the same file on a periodic basis or by creating a specific file naming convention for these files.

• Step 10: Click Import to save the configuration.

For more details, refer to Importing log files from different locations.

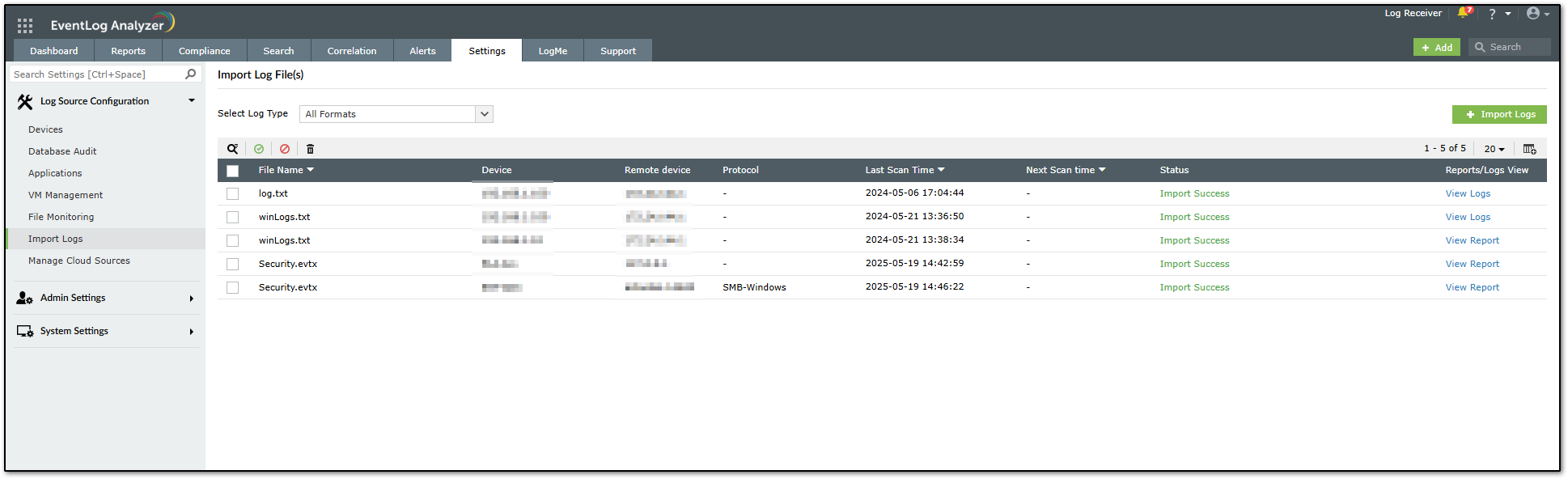

Figure 3: A successful import of Security.evtx file from two machines done via the local import and remote import SMB option.

Tips

1. Log import consumes one Application license for each import performed. If you are importing for analysis, you can select the Store Logs for Short-term option, which will store the imported log data in EventLog Analyzer for two days. If the option is left unchecked, the logs will be stored as per data retention configuration.

2. Log format will be set as Automatically Identify by default. The application will identify the Log format automatically, and based on that, the parsing will be achieved. You can create a Custom log format if the log format is not available in the list or if it is a custom application.

4. The Scheduled import option is available in both Remote and S3 bucket imports.
