Objective

This article provides step-by-step guidance on how to enable SSL manually in ADAudit Plus. Securing ADAudit Plus with SSL ensures encrypted data transmission, preventing unauthorized access and enhancing security.

Prerequisites

• ADAudit Plus must be installed and accessible.

• Administrative access to the ADAudit Plus server.

• A valid SSL certificate in PKCS #12 (.pfx) format containing both the public certificate and the private key.

• Java keytool and access to server.xml configuration file.

Steps to follow

Step 1: Define the SSL port

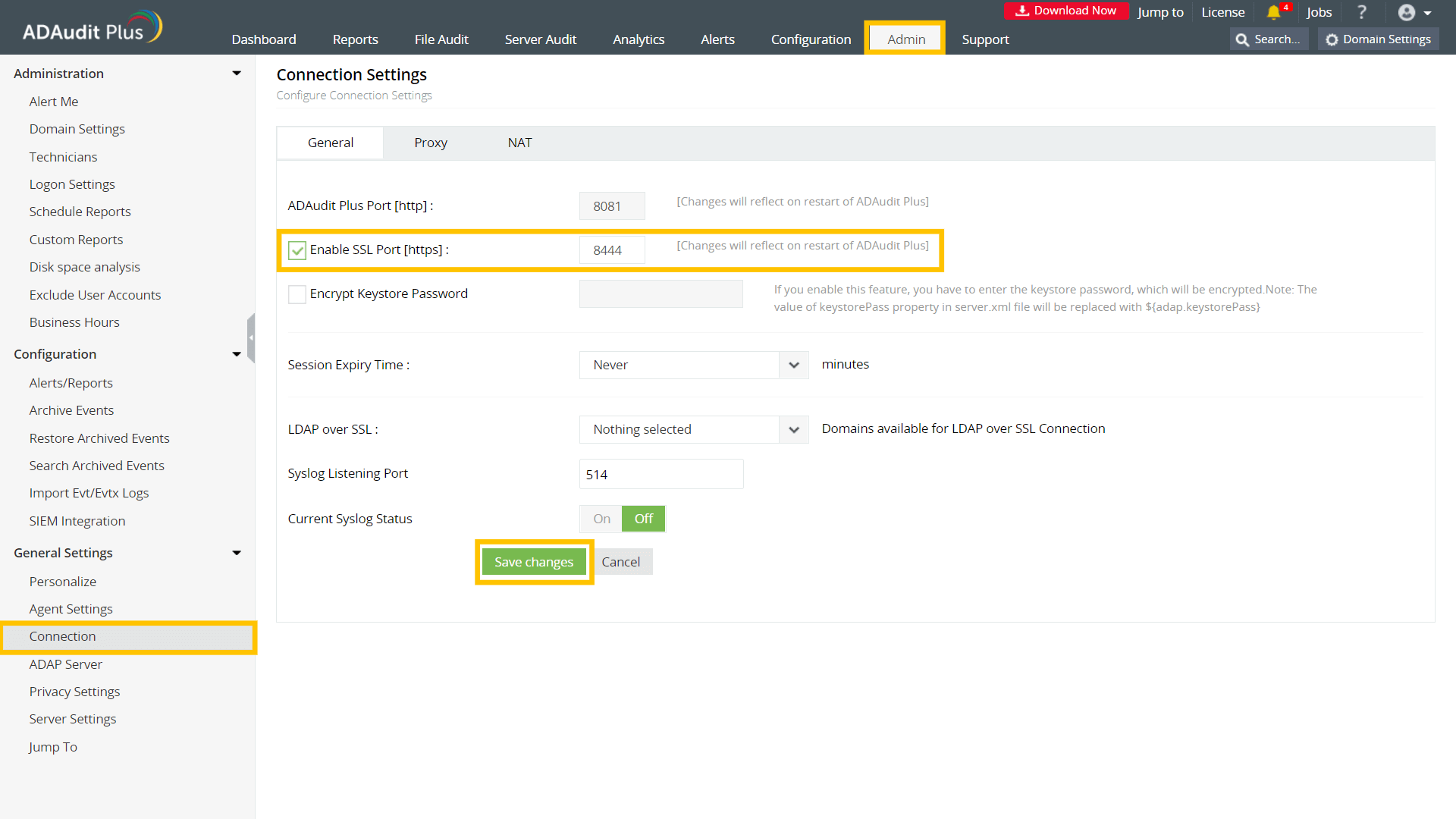

• Log in to ADAudit Plus with an account that has administrative privileges.

• Navigate to Admin > General Settings > Connection.

• Check the Enable SSL Port [https] box. The default port number 8444 is selected automatically.

• Click Save changes.

• Restart ADAudit Plus for the changes to take effect.

Note: If you want to install an existing PFX or PKCS #12 certificate, skip to the PFX or PKCS #12 format section in Step 5.

Step 2: Create the keystore

A keystore is a password-protected file that contains the keys and certificates for the server to encrypt and decrypt data.

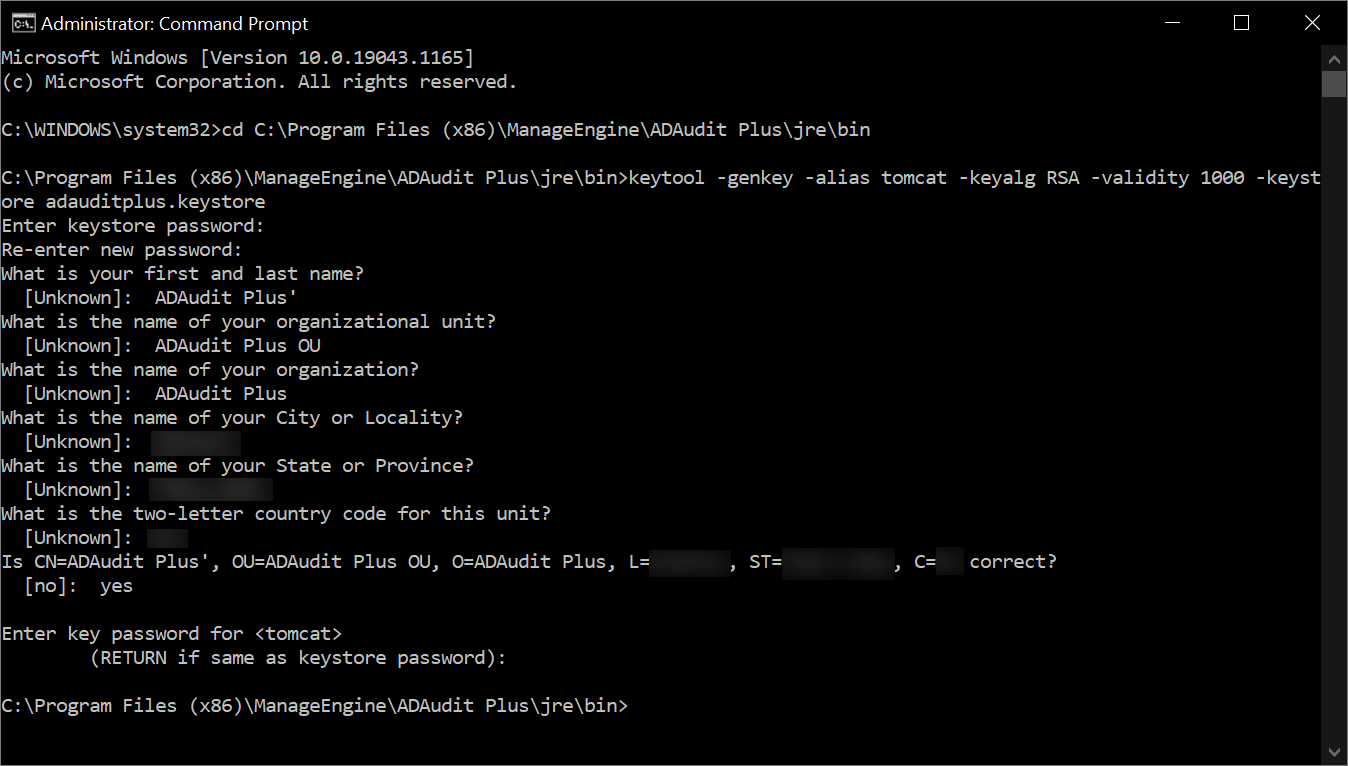

• To create a certificate keystore file and generate encryption keys, run command prompt as an administrator, navigate to <product_installation_directory>\jre\bin, and execute the following commands:

• keytool -genkey -alias tomcat -keyalg RSA -validity 1000 -keystore <domainName>.keystore

• Replace <domainName> with the name of your domain.

• Type in your keystore password.

• Refer to the image below and provide information in accordance with the following guidelines.

Step 3: Generate the certificate signing request

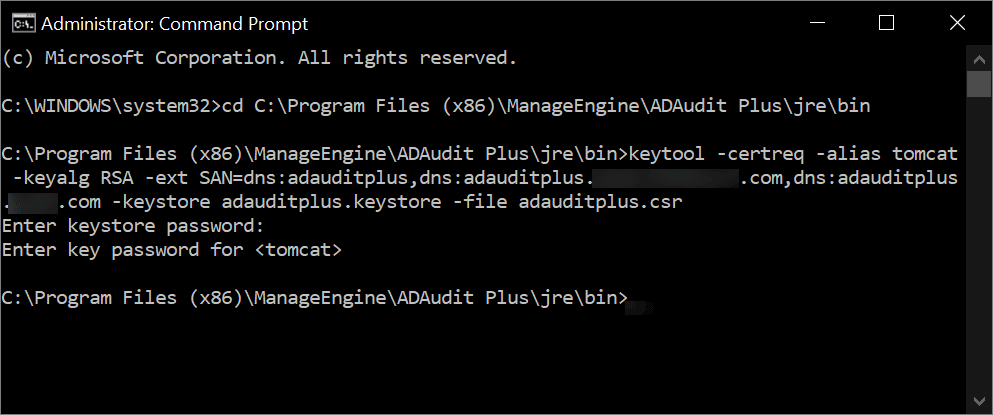

To create a certificate signing request (CSR) with a subject alternative name (SAN), execute the following command in command prompt:

keytool -certreq -alias tomcat -keyalg RSA -ext SAN=dns:server_name,dns:server_name.domain.com,dns:server_name.domain1.com -keystore <domainName>.keystore -file <domainName>.csr

Replace <domainName> with the name of your domain and provide the appropriate SANs as shown in the image below:

Step 4: Issue the SSL certificate

In this step, you will connect to a certificate authority (CA), submit the CSR to the specific CA, and get the SSL certificate issued to you.

A. Issue the SSL certificate using an external CA

• To request a certificate from an external CA, submit the CSR to that CA. You can locate the CSR file in the <product_installation_directory>\jre\bin folder.

• Unzip the certificates returned by your CA and put them in the <product_installation_directory>\jre\bin folder.

Note: After the SSL certificate is issued by the external CA, proceed to Step 5 to install the certificate.

B. Issue the SSL certificate using an internal CA

An internal CA is a member server or domain controller in a specific domain that has been assigned the CA role.

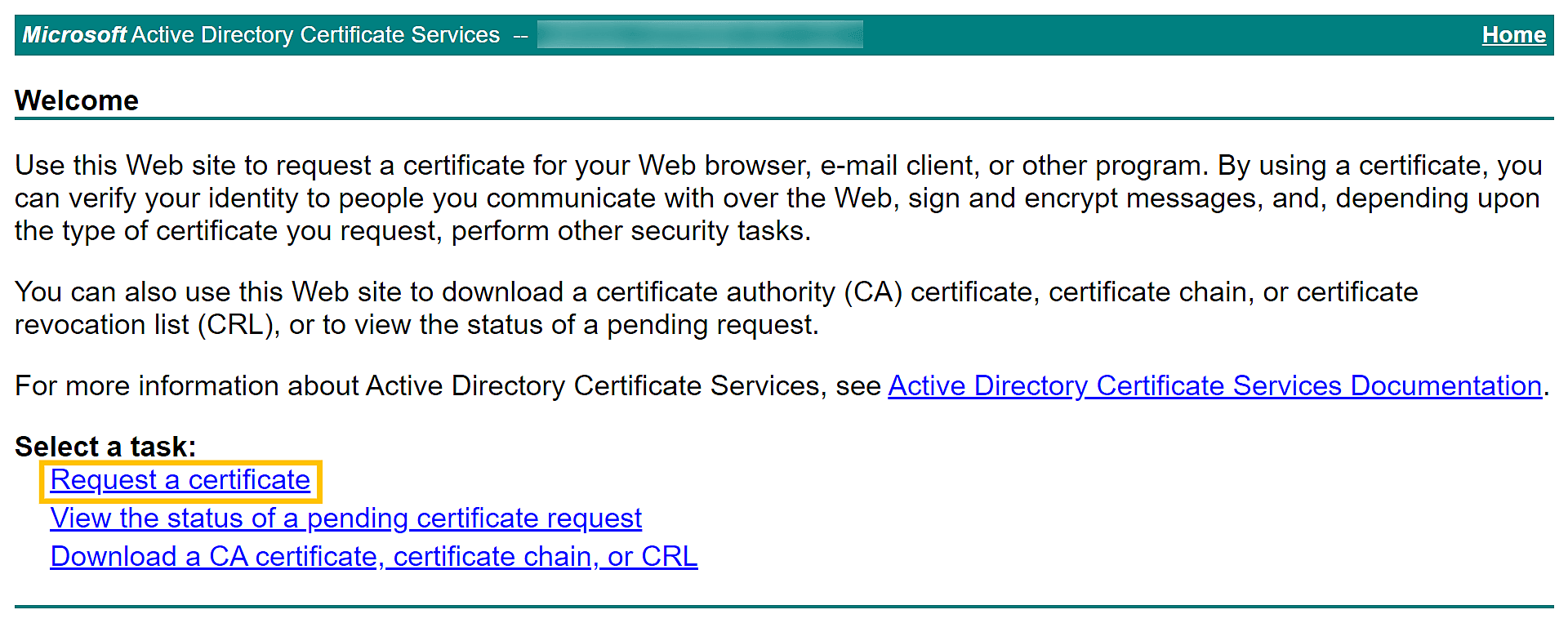

• Connect to the Microsoft Active Directory Certificate Services of your internal CA and click the Request a certificate link.

• On the Request a Certificate page, click the advanced certificate request link.

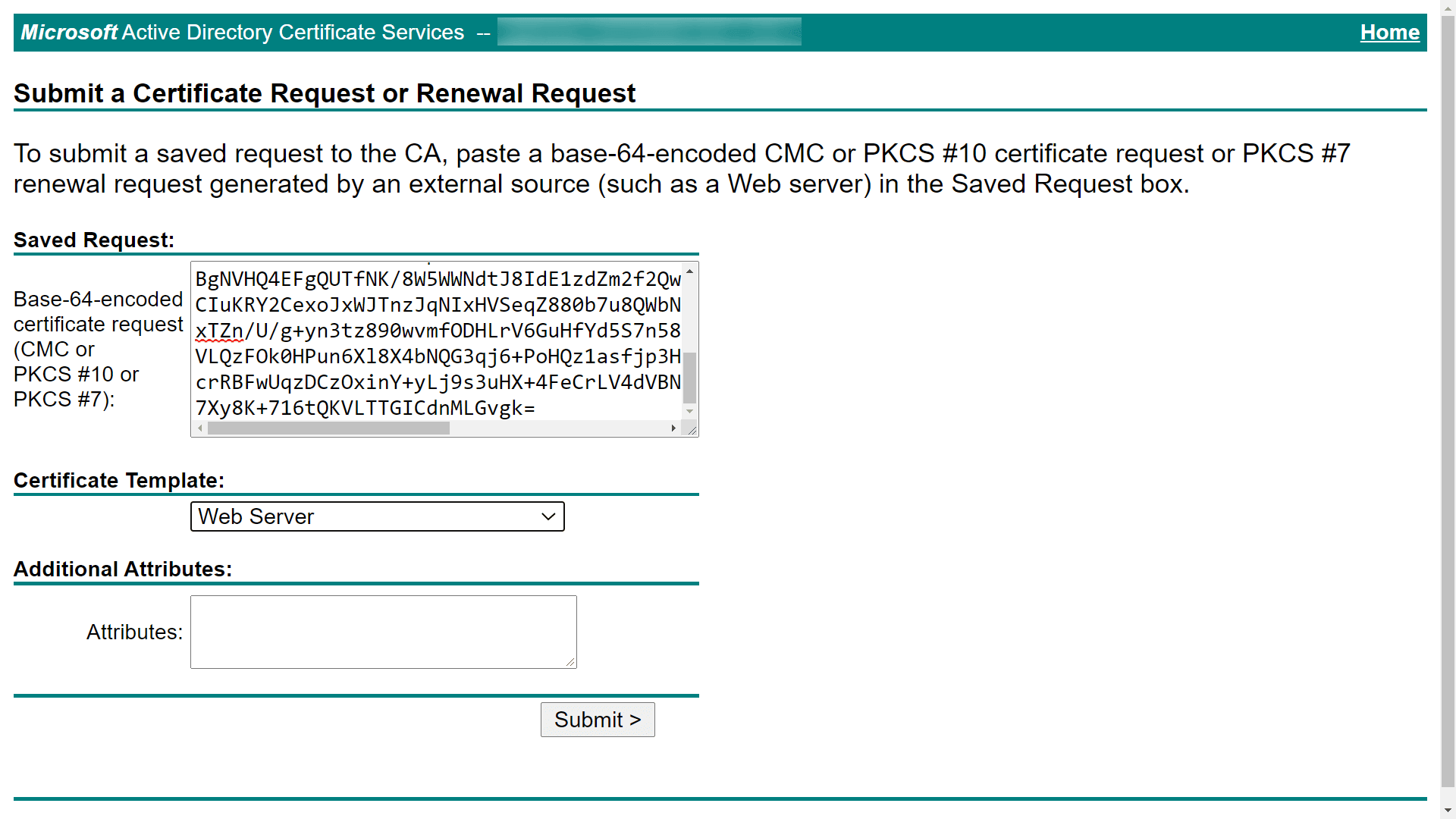

• On the Submit a Certificate Request or Renewal Request page, copy the content from your CSR file and paste it in the Saved Request field.

• Select Web Server or the appropriate template for Tomcat under Certificate Template and click Submit.

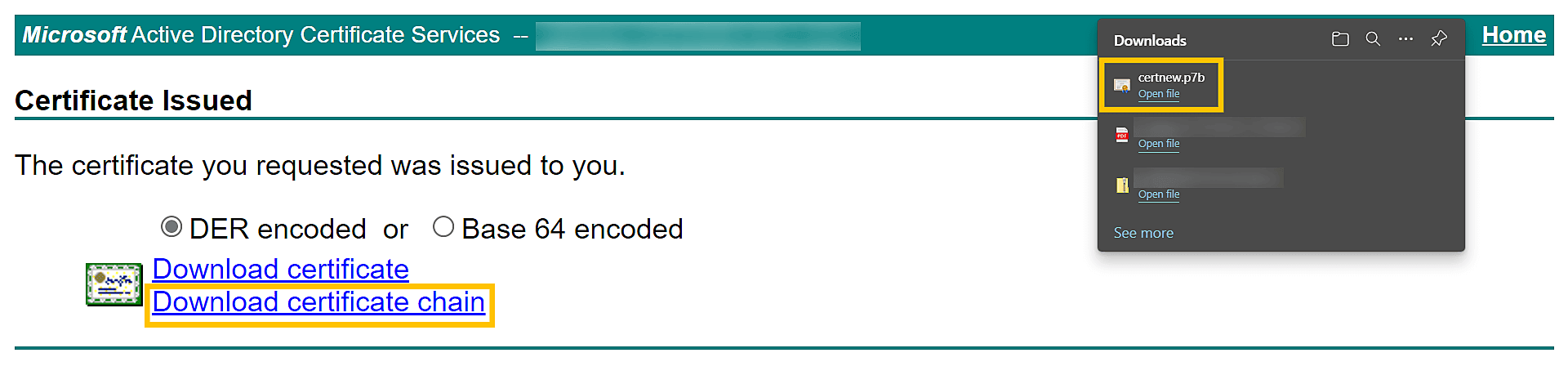

• The certificate will be issued when you click the Download certificate chain link. The downloaded certificate will be in the P7B file format.

• Copy the P7B file to the <product_installation_directory>\jre\bin folder.

 Step 5: Import the certificate

Follow the steps given below that correspond with the format in which you want to import the certificate.

A. Privacy-enhanced mail (PEM) format

To import the certificate into the keystore file in PEM format, open command prompt, navigate to <product_installation_directory>\jre\bin, and run the commands from the list below that applies to your CA.

General commands

• keytool -importcert -alias root -file <root.cert.pem> -keystore <your.domain.com>.keystore -trustcacerts

• keytool -importcert -alias intermediate -file <intermediate.cert.pem> -keystore <your.domain.com>.keystore -trustcacerts

• keytool -importcert -alias intermediat2 -file <intermediat2.cert.pem> -keystore <your.domain.com>.keystore -trustcacerts

• keytool -importcert -alias tomcat -file <server.cert.pem> -keystore <your.domain.com>.keystore -trustcacerts

Vendor-specific commands

For GoDaddy certificates

• keytool -import -alias root -keystore <domainName>.keystore -trustcacerts -file gd_bundle.crt

• keytool -import -alias cross -keystore <domainName>.keystore -trustcacerts -file gd_cross.crt

• keytool -import -alias intermed -keystore <domainName>.keystore -trustcacerts -file gd_intermed.crt

• keytool -import -alias tomcat -keystore <domainName>.keystore -trustcacerts -file <domainName>.crt

For Verisign certificates

• keytool -import -alias intermediateCA -keystore <domainName>.keystore -trustcacerts -file <your intermediate certificate.cer>

• keytool -import -alias tomcat -keystore <domainName>.keystore -trustcacerts -file <domainName>.cer

For Comodo certificates

• keytool -import -trustcacerts -alias root -file AddTrustExternalCARoot.crt -keystore <domainName>.keystore

• keytool -import -trustcacerts -alias addtrust -file UTNAddTrustServerCA.crt -keystore <domainName>.keystore

• keytool -import -trustcacerts -alias ComodoUTNServer -file ComodoUTNServerCA.crt -keystore <domainName>.keystore

• keytool -import -trustcacerts -alias essentialSSL -file essentialSSLCA.crt -keystore <domainName>.keystore

For Entrust certificates

• keytool -import -alias Entrust_L1C -keystore <keystore-name.keystore> -trustcacerts -file entrust_root.cer

• keytool -import -alias Entrust_2048_chain -keystore <keystore-name.keystore> - trustcacerts -file entrust_2048_ssl.cer

• keytool -import -alias -keystore <keystore-name.keystore> -trustcacerts -file <domainName.cer>/li>

For certificates purchased through the Thawte reseller channel

• keytool -import -trustcacerts -alias thawteca -file <SSL_PrimaryCA.cer> -keystore <keystore-name.keystore>

• keytool -import -trustcacerts -alias thawtecasec -file <SSL_SecondaryCA.cer> - keystore <keystore-name.keystore>

• keytool -import -trustcacerts -alias tomcat -file <certificate-name.cer> -keystore <keystore-name.keystore>

Once the certificate is installed, proceed to Step 6 to bind the certificate to ADAudit Plus.

Note: If you are receiving the certificates from a CA that is not listed above, then contact your CA to get the commands required to add its certificates to the keystore.

B. P7B or PKCS #7 format

To import the certificate into the keystore file in P7B or PKCS #7 format, open Command Prompt, navigate to <product_installation_directory>\jre\bin, and execute the following command:

keytool -import -trustcacerts -alias tomcat -file certnew.p7b -keystore <keystore_name>.keystore

Once the certificate is installed, proceed to Step 6 to bind the certificate to ADAudit Plus.

C. PFX or PKCS #12 format

• Copy and save your PFX or PKCS #12 file in the <product_installation_directory>\conf folder.

• Open the server.xml file present in the <product_installation_directory>\conf folder with a local text editor. Create a backup of the existing server.xml file just in case you wish to restore it.

• Find the connector tag that contains <Connector ... SSLEnabled="true"... name="SSL".../>.

• Within the connector tag, make the following changes:

• Replace the value of keystoreFile with "./conf/<YOUR_CERT_FILE.pfx>".

• Add keystoreType="PKCS12".

• Save and close the server.xml file.

<Connector SSLEnabled="true" URIEncoding="UTF-8" acceptCount="100" ciphers="TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA256,TLS_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_256_CBC_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA" clientAuth="false" connectionTimeout="20000" debug="0" disableUploadTimeout="true" enableLookups="false" keystoreFile="./conf/<YOUR_CERT_FILE.pfx>" keystorePass="*********" keystoreType="PKCS12"maxSpareThreads="75" maxThreads="150" minSpareThreads="25" name="SSL" port="8444" scheme="https" secure="true" sslEnabledProtocols="TLSv1,TLSv1.1,TLSv1.2" sslProtocol="TLS"/>

Note: After modifying the server.xml file, skip to the "Encrypt the keystore password" section in Step 6.

Step 6: Bind the certificates to ADAudit Plus

• Copy the <domainName>.keystore file from the <product_installation_directory>\jre\bin folder and paste it in the <product_installation_directory>\conf folder.

• Open the server.xml file present in the <product_installation_directory>\conf folder with a local text editor. Create a backup of the existing server.xml file in case you wish to restore it.

• Find the connector tag that contains <Connector ... SSLEnabled="true"... name="SSL".../>.

• Within the connector tag, replace the value of keystoreFile with "./conf/<Your_Domain_Name>.keystore".

<Connector SSLEnabled="true" URIEncoding="UTF-8" acceptCount="100" ciphers="TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA256,TLS_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_256_CBC_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA" clientAuth="false" connectionTimeout="20000" debug="0" disableUploadTimeout="true" enableLookups="false" keystoreFile="./conf/<Your_Domain_Name>.keystore" keystorePass="*********" maxSpareThreads="75" maxThreads="150" minSpareThreads="25" name="SSL" port="8444" scheme="https" secure="true" sslEnabledProtocols="TLSv1,TLSv1.1,TLSv1.2" sslProtocol="TLS"/>

• Save and close the server.xml file.

Encrypt the keystore password

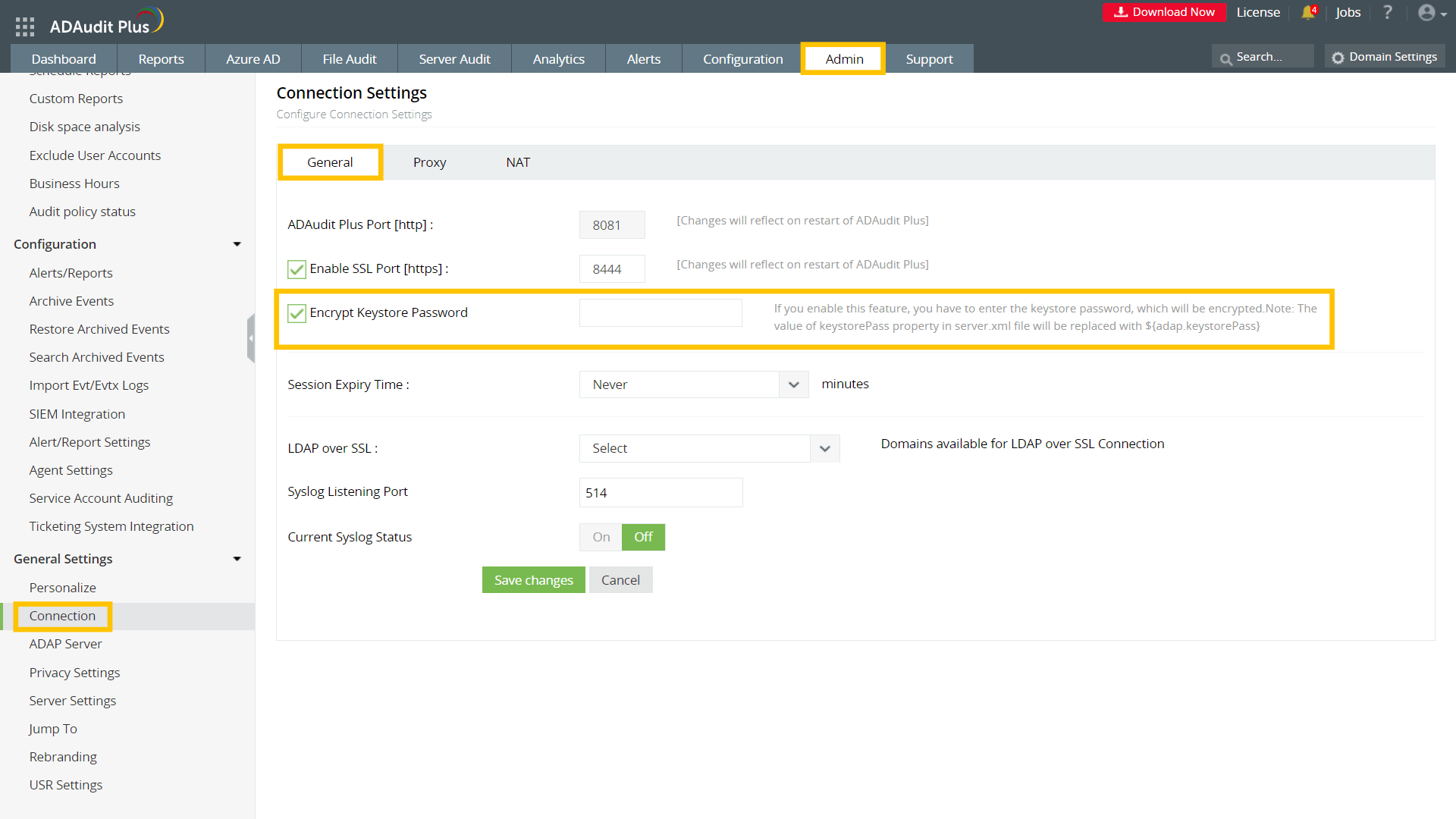

• Log in to your ADAudit Plus web console and navigate to Admin > General Settings > Connection.

• Select the General tab, check the Encrypt Keystore Password box, and enter the keystore password you used while generating the CSR for this certificate file.

• Click Save changes.

• Restart ADAudit Plus again for the changes to take effect.

Note: If you want to modify the TLS versions and ciphers attribute, refer to our security hardening guide.

Validation and confirmation

• Check that the ADAudit Plus login page loads with HTTPS.

• Click the padlock icon in the browser’s address bar to verify the SSL certificate is applied.

• Ensure there are no certificate errors or warnings.

Tips

• Backup server.xml and the keystore before making any changes.

• Use a strong password for the keystore.

• Ensure port 8443 is open in your firewall.

• Use a valid CA-signed certificate for production use. Self-signed certs might cause browser warnings.

• Renew your certificate before it expires and repeat the import steps.
