How to add a SQL Server Named Instance as an MSSQL Monitor?

How to add a SQL Server Named Instance as an MSSQL Monitor?

Step 1: Check if the Named instance is running in a static or dynamic port

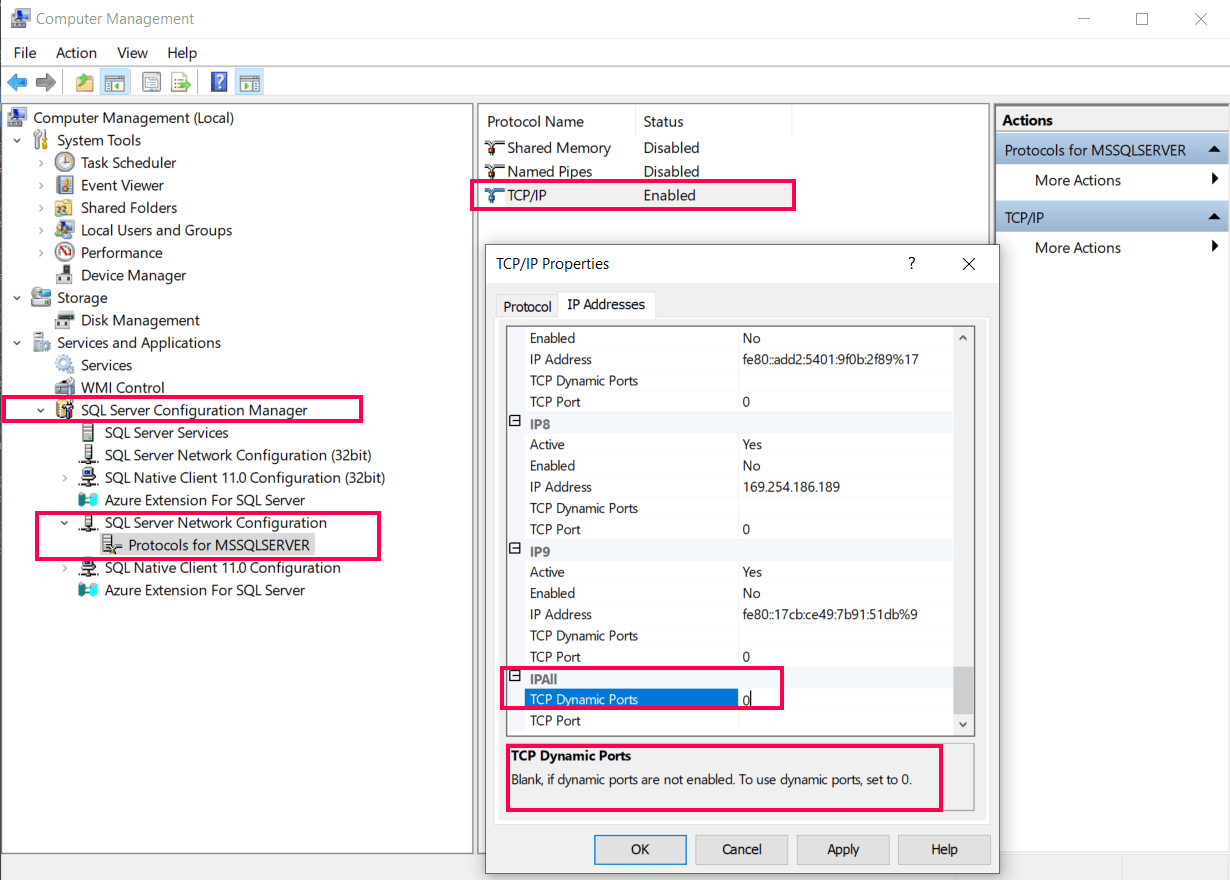

  • Open SQL Server Configuration Manager.

  • Navigate to SQL Server Network ConfigurationProtocols for [Instance Name].

  • Right-click TCP/IPProperties.

  • Check the IP Addresses tab:

    • Static Port: (typically under IPAll section).

      • TCP Port: Contains a specific port number (e.g., 1433 or any other assigned port).

      • TCP Dynamic Ports: Should be empty.

    • Dynamic Port: (typically under IPAll section).

      • TCP Port: Will be empty.

      • TCP Dynamic Ports: Contains 0 (f set to 0, SQL Server assigns a port dynamically) or a specific dynamic port number.



Step 2: If a named instance is running in Dynamic port

Enable the "Connect using Named Instance" checkbox and give the instance name while adding MSSQL monitor.
  • SQL Server Browser: Make sure the "SQL Server Browser" Service is running on SQL Server installed machine.

  • Verify UDP Port Accessibility: Named instance connections require the UDP port (Default: 1434) to be reachable. The MSSQL driver uses UDP port 1434 to retrieve information about available SQL Server instances.

  • If the UDP port is inaccessible, you may encounter the following error:

Infojava.sql.SQLException: "Unable to get information from SQL Server"
  • This indicates the driver was unable to fetch details about the running instances.

Notes

Note: On SQL Server 2005 the SQL Browser service must be running on the server host as the instance name lookup port UDP 1434 is hosted by this service on SQL Server 2005 rather than the SQL Server itself. The default installation does not configure the SQL Browser service to start automatically, so you must do it manually.

Step 3: If the named instance is running in Static port

If your SQL instances are configured to use static ports, you can specify the port number directly instead of the instance name.

Alert

Possible error cases:

  1. Timeouts occur when there is no server listening on the specified port or if the UDP port is blocked.
  2. Ensure that the SQL Server is configured to use TCP/IP. You are correctly specifying named instances.
