Objective

This document will guide you through configuring access restrictions for the EventLog Analyzer user interface. You can choose to either block specific IP addresses or allow access only from designated IPs.

EventLog Analyzer ensures you can allow traffic only from trusted sources and block the rest.

Prerequisites

You will need to have admin access to the EventLog Analyzer console.

Steps to follow

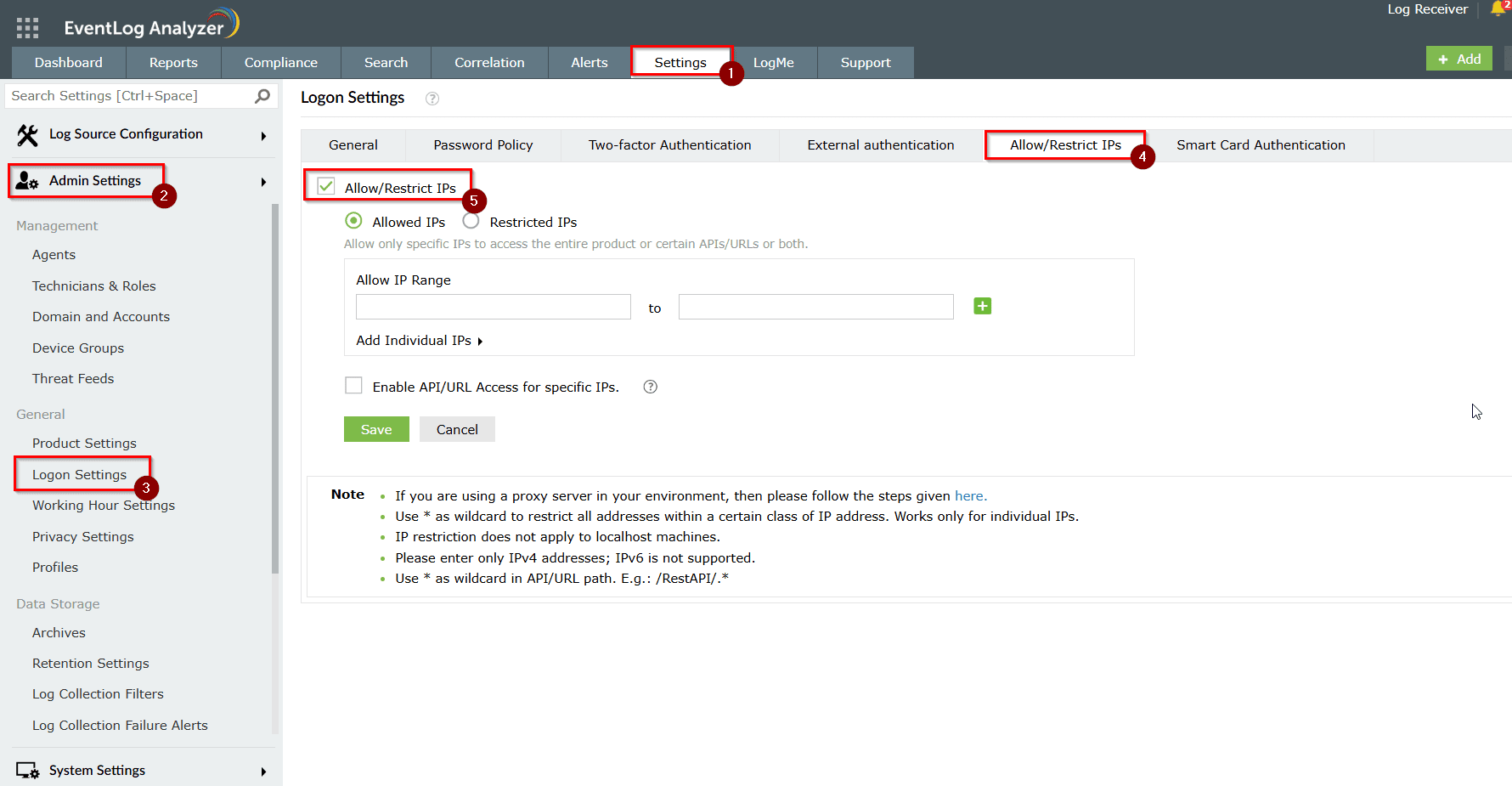

Step 1: Open EventLog Analyzer console/UI and navigate to the below path
Settings → Admin Settings → Logon Settings.

Step 2: Navigate to the Allow/Restrict IPs tab.

Step 3: Click on the Enable Allow/Restrict IPs Checkbox to enable IP restriction.

Step 4: To restrict certain IP addresses, click on the Restricted IPs. Also, you can consider allowing the EventLog Analyzer console access only to certain IPs by selecting the Allowed IPs.

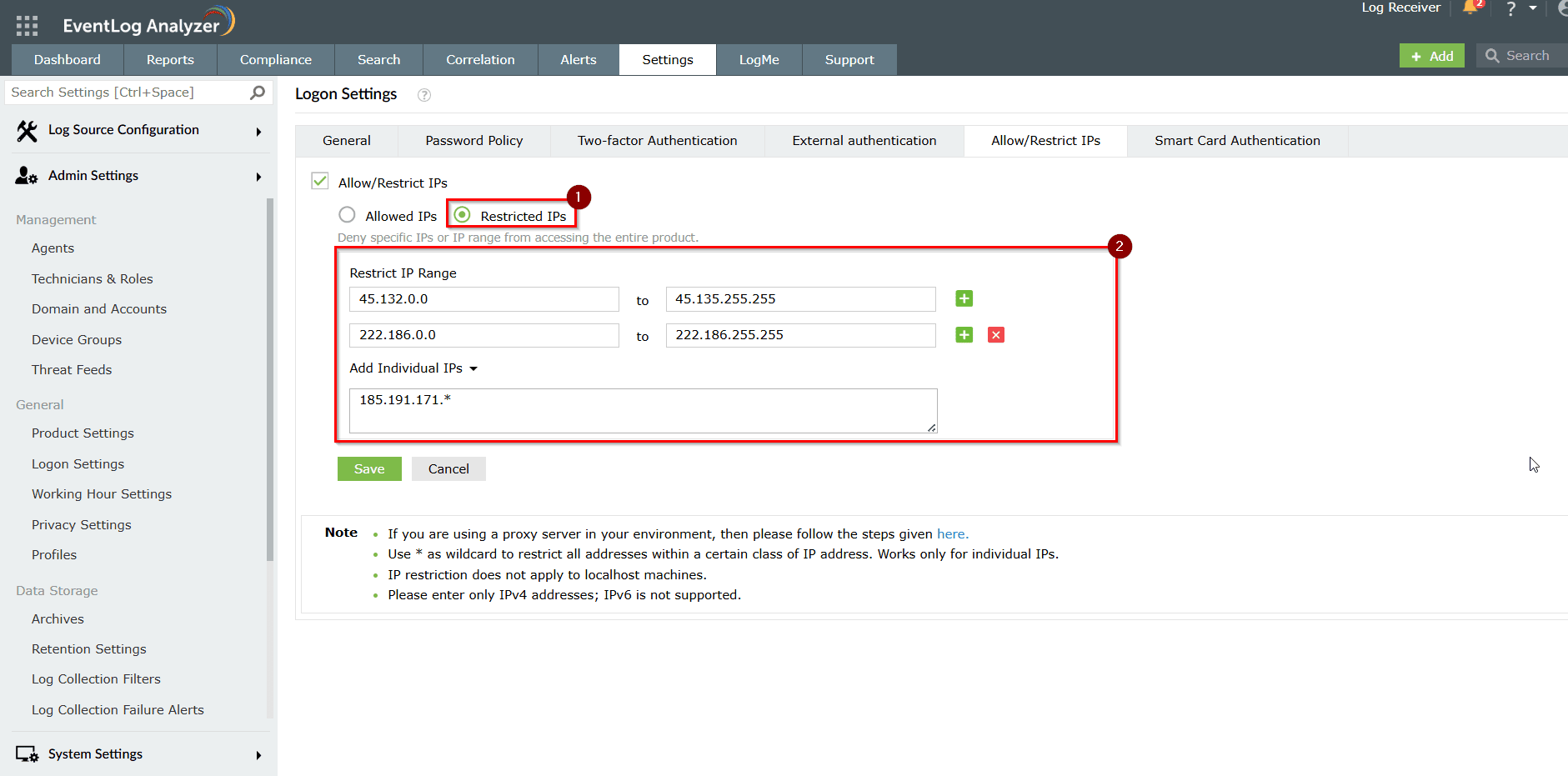

Step 5: Restricted IPs:

1. ​Follow these steps to restrict UI access by certain IP addresses.

• Enter the desired IP range in the provided field.

• To add multiple IP ranges, click the "+" icon.

• You can also specify individual IP addresses and hostname under the "Add Individual IPs" section.



•


• When accessed via Restricted IPs, you will receive an Access Denied error.

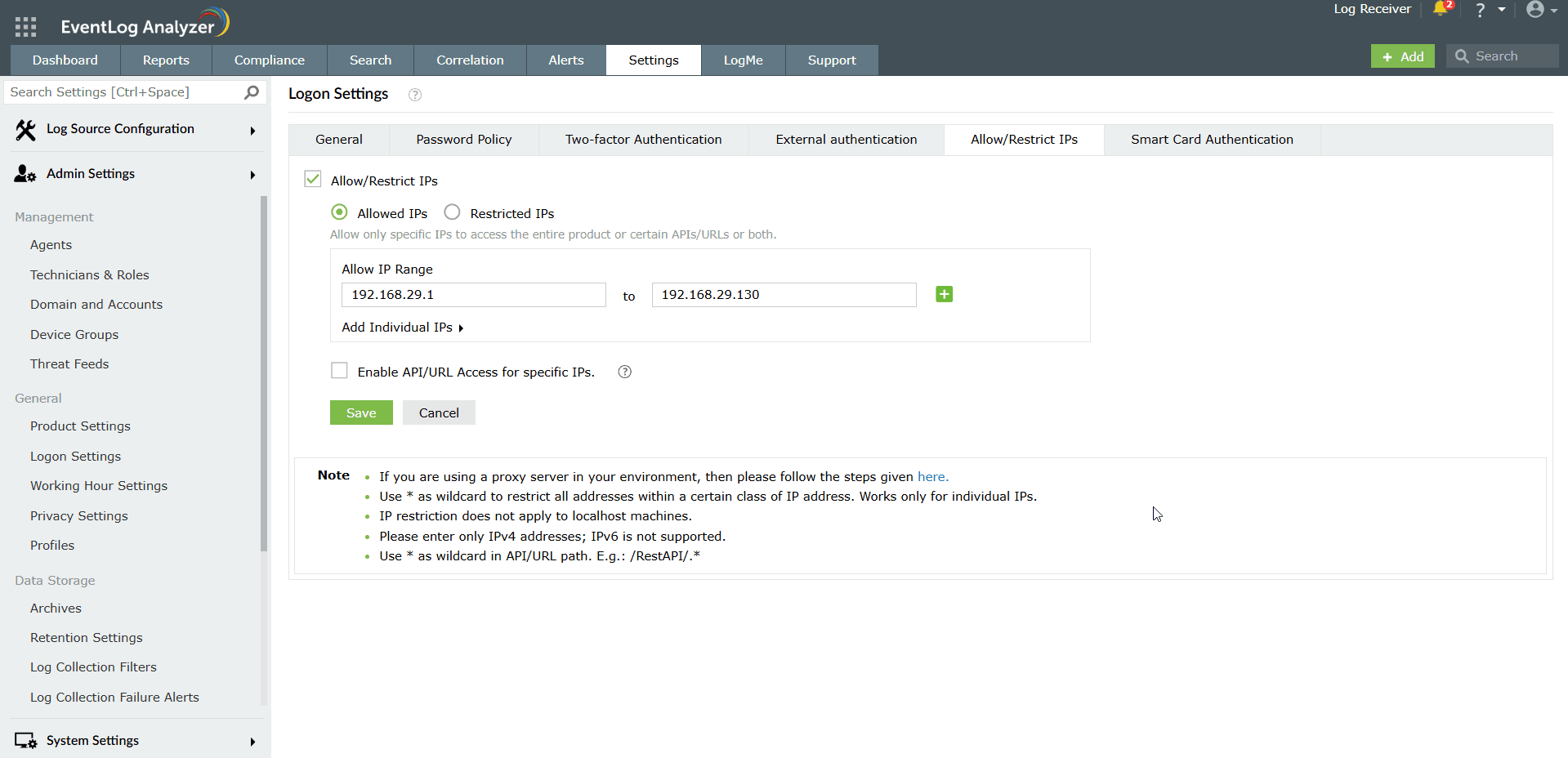

Step 6: Allowed IPs:

• Follow the below steps to allow UI access to certain IP/IP ranges.


• Enter the desired IP range in the Allow IP range field.

• To add multiple IP ranges, click the "+" icon.

• You can also specify individual IP addresses under the "Add Individual IPs" section.



Tips

1. You can use the asterisk (*) as a wildcard in individual IP addresses to restrict entire address ranges.
2. For example, entering 192.168.29.* will deny access to all IPs within that subnet.
3. Hostname can be added under individual entries to offer access control based on hostname.
