Adjust the Height and Width of a multi line additional field

Adjust the Height and Width of a multi line additional field

Use Case:

Multiline additional field sizes cannot be modified directly in the UI.  These can be modified using Field and Form Rules.

Execution Steps:

1.  Create a new 'Multi-Line' additional field and copy the "column name" of the additional field created from the additional field listview.

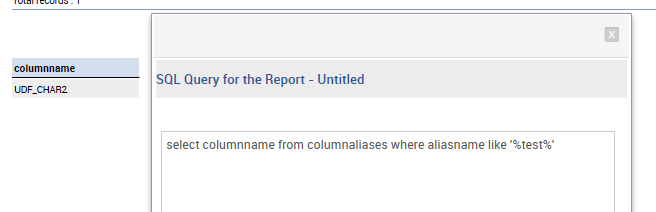

2. Column name can be identified by going to Reports>New Query Report>Running the below query

select columnname from columnaliases where aliasname like '%test%'

‚Äč

Replace test with the field name.

2.  Go to Admin > Incident Templates > Select a particular template > Include this additional field in the template > Field and Form Rules > Rule execution - On Create / Edit > Event - "On Form Load"  > Actions - Execute Script - Copy Paste the below code snippet and save the script.

var x="UDF_CHAR2";
var height=10;
var width="width:150%!important";
jQuery('[name="'+x+'"]').attr('rows',height).attr("style",width);

3.  Replace "UDF_CHAR2" with the copied "column name" of the additional field.

4.  The request additional field will size will be modified in the new request creation form.


Field And Form Rule:
