How to enable non-language options for PDF exports?

How to enable non-language options for PDF exports?

Analytics Plus unfortunately does not support Georgian. So if the data you have inside Analytics Plus is in Georgian then the exported PDF will contain blank values due to lack of font support. Here's how you can avoid this.

NOTE: This method is not version-specific so it can be applied to any version of analytics.
Text instructions

1. Download this zip file from this link.

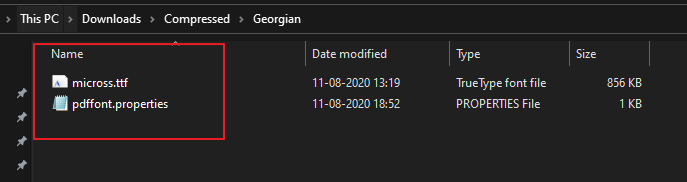

2. Extract the zip. Inside you will find two files.

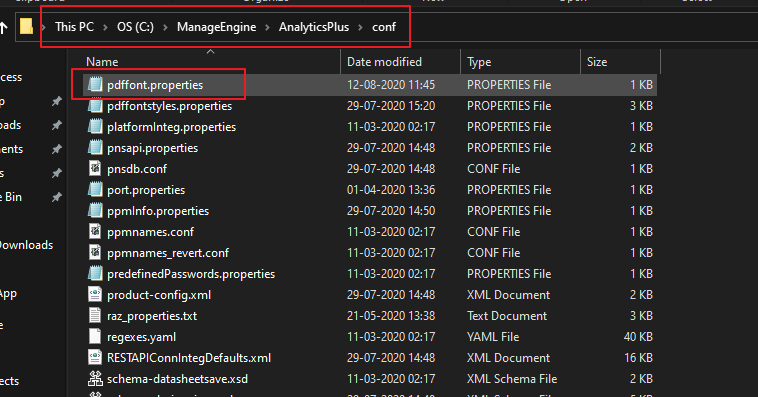

3. Copy the "pdffont.properties" file and replace it under ManageEngine\AnalyticsPlus\conf
NOTE: Before you replace, make sure to take a backup of "pdffont.properties" which is already present under conf.

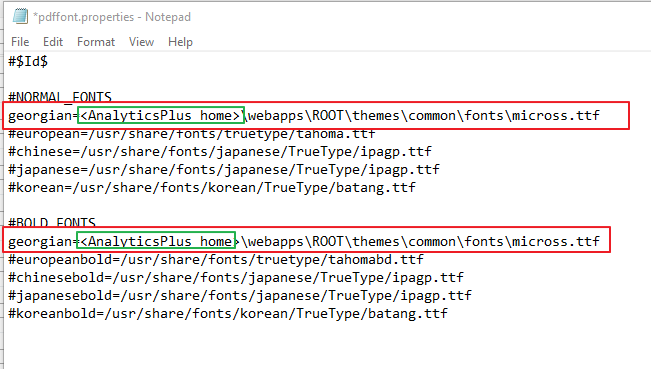

4. After replacing the "pdffont.properties", open the file and add the below entry.
georgian=C\:\\<AnalyticsPlus_home>\\webapps\\ROOT\\themes\\common\\fonts\\micross.ttf
Replace "<AnalyticsPlus_home>" with the actual analytics installed directory. Refer to the "After" screenshot.

Before:



After:

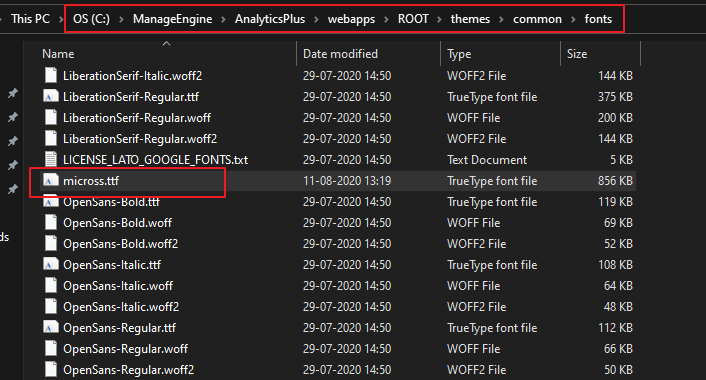

5. Copy the "micross.ttf" from the zip and place it under ManageEngine\AnalyticsPlus\webapps\ROOT\themes\common\fonts
​


6. Restart the Analytics Plus services.

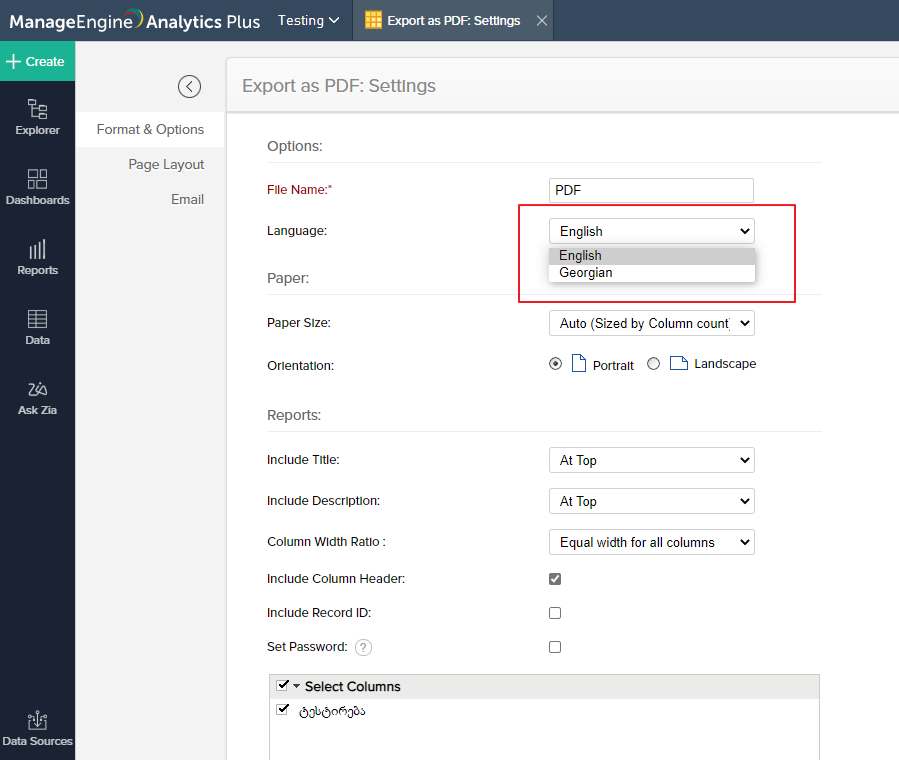

7. Now you will find "Georgian" under Language in Export as PDF: Settings.
