Configuring PMI levels in WebSphere Application server to expose Metrics for APM
To monitor a WebSphere Application Server instance using Applications
Manager, you need to enable Performance Monitoring Infrastructure (PMI)
on the server. This will allow the server to expose the required metrics
for monitoring.
PMI is enabled by default, and the default monitoring level is Basic, which is the minimum level required to expose the necessary metrics for monitoring the WebSphere Application Server in Applications Manager.
PMI is enabled by default, and the default monitoring level is Basic, which is the minimum level required to expose the necessary metrics for monitoring the WebSphere Application Server in Applications Manager.
Below the Basic level, level None is available: which if enabled, will expose no data from
the Application Server to be monitored.

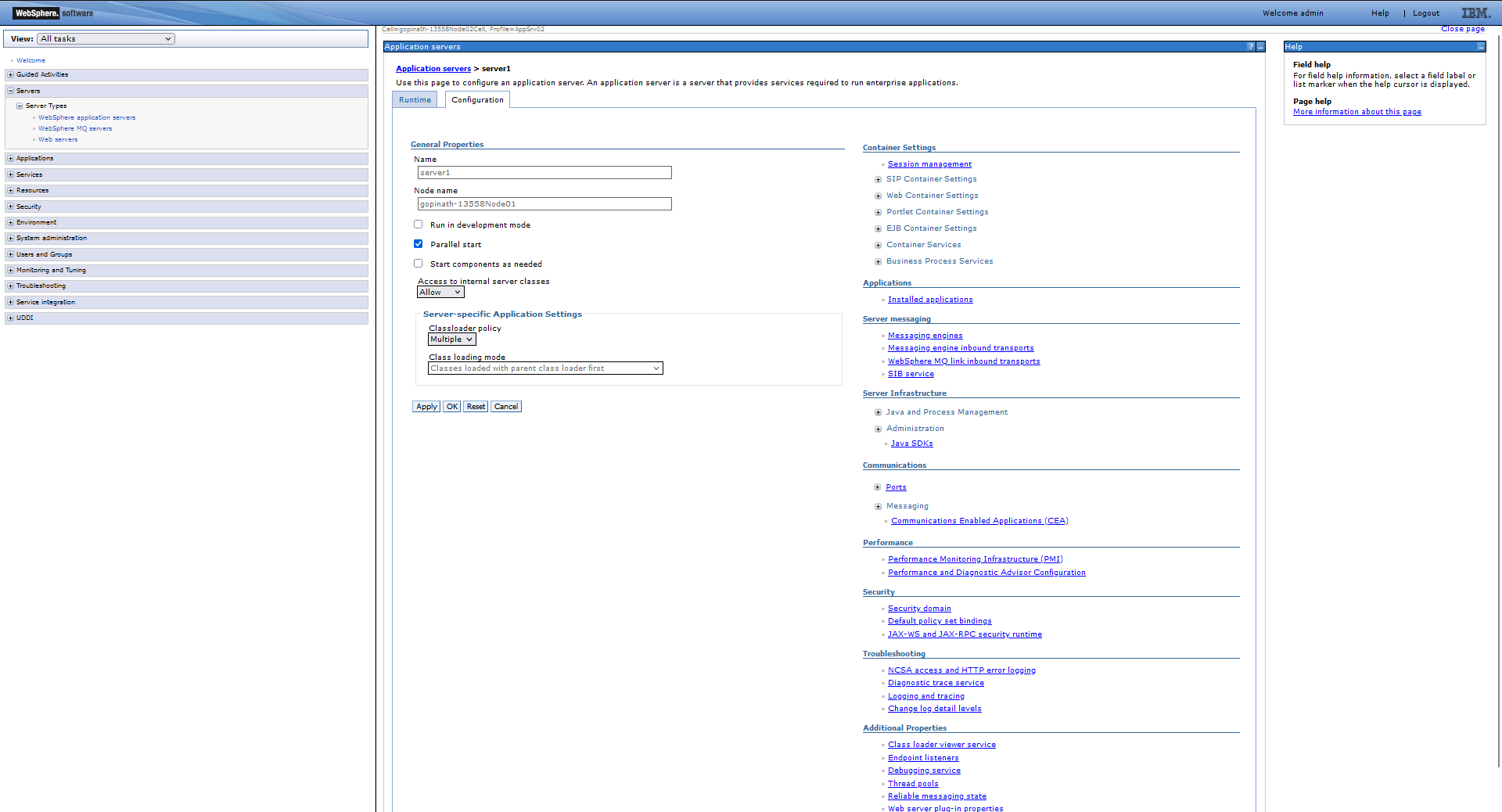

Additionally to disable unwanted metrics that are not used by Applications Manager, Custom profiling can be used. To enable Custom profiling, go to the Application Server's console and click on "performance monitoring infrastructure(PMI)" as shown in the below image.

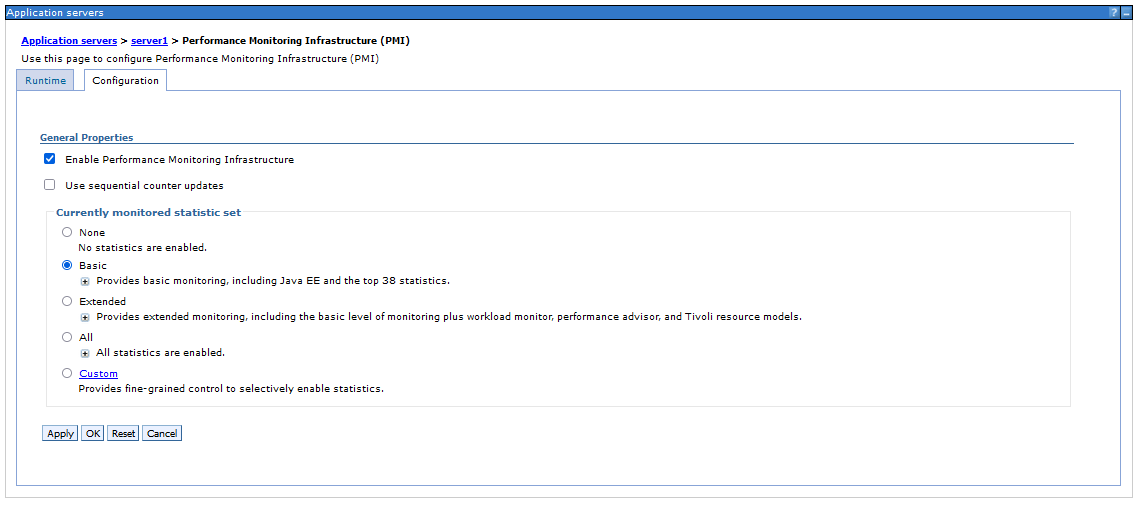

Then click on Custom, as shown in the below image.

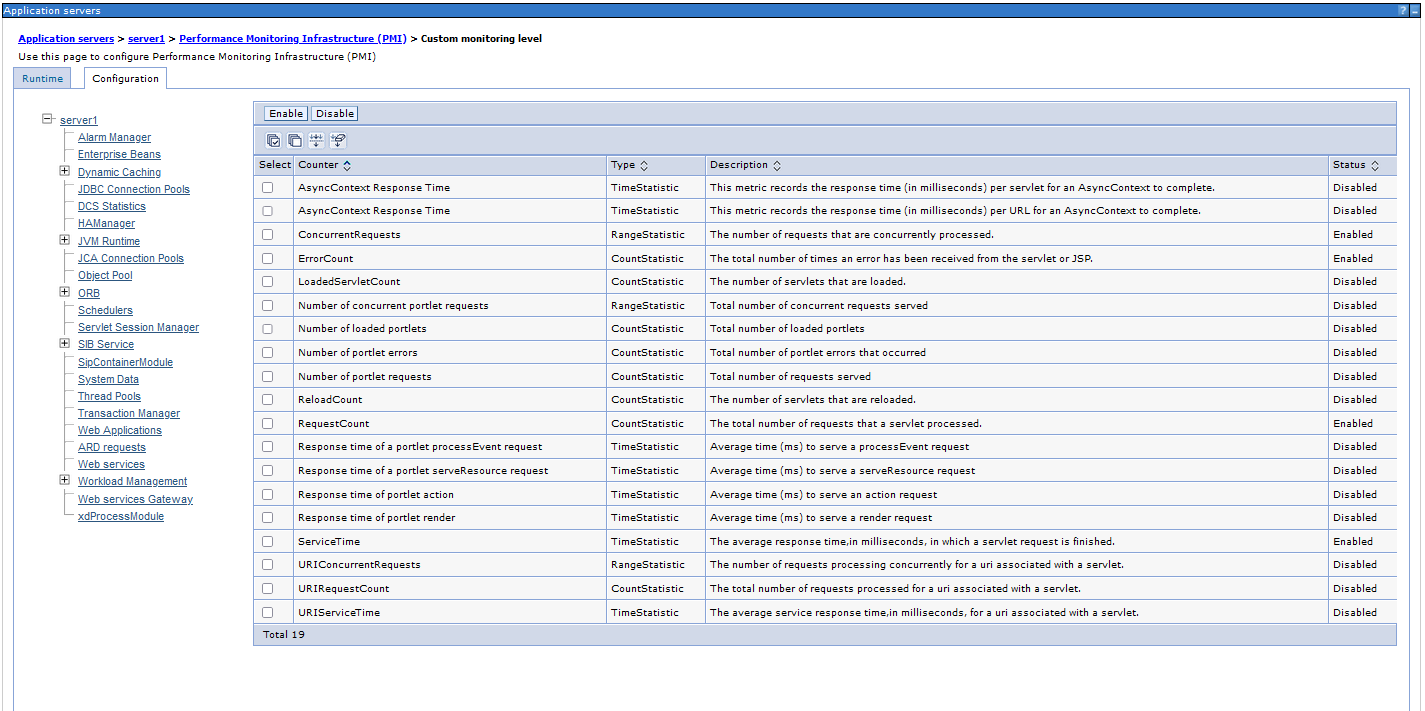

The below console will be available and the you can Enable/Disable the required Statistics as per your requirements.
A list of the all Statistics that are utilized in Applications Manager and the corresponding option to be enabled has been provided below:
| MO | Component in WebSphere Application server | Metric in APM | Metric to be enabled in Custom PMI profile |
| Web | Web Applications & Servlet Session Manager | Session Creation/Min | CreateCount(Servlet Session Manager) |
| Affinity Breaks/Min | AffinityBreakCount(Servlet Session Manager) | ||
| Live Sessions | LiveCount(Servlet Session Manager) | ||
| Active Sessions | ActiveCount(Servlet Session Manager) | ||
| Total Requests/Min | RequestCount(Web Applications) | ||
| Error count/Min | ErrorCount(Web Applications) | ||
| Concurrent Requests | ConcurrentRequests(Web Applications) | ||
| EJB | Enterprise Beans | Concurrent Lives | LiveCount |
| Total Method Calls | MethodCallCount | ||
| Average Method Response Time | MethodResponseTime | ||
| Pool size | PooledCount | ||
| Activation time | ActivationTime | ||
| Passivation time | PassivationTime | ||
| Activate Count | ActivateCount | ||
| Servlet | Web Applications | Total Requests | RequestCount |
| Concurrent Requests | ConcurrentRequests | ||
| Error Count | ErrorCount | ||
| Response Time | ServiceTime | ||
| JCA | JCA Connection Pools | Create Count | CreateCount |
| Close Count | CloseCount | ||
| Pool size | PoolSize | ||
| Free Pool size | FreePoolSize | ||
| Use Time(ms) | UseTime | ||
| Wait Time(ms) | WaitTime | ||
| Waiting thread count | WaitingThreadCount | ||
| JDBC | JDBC Connection Pools | Create Count/Min | CreateCount |
| Concurrent Waiters | WaitingThreadCount | ||
| Faults | FaultCount | ||
| Wait Time(Avg) | WaitTime | ||
| Percent Used | PercentUsed | ||
| Percent Maxed | PercentMaxed | ||
| Pool Size | PoolSize | ||
| Free Pool size | FreePoolSize | ||
| JMS | SIB Service & SIB Messaging Engines | Queue Depth | AvailableMessageCount |
| Uncommitted Transactions | UnavailableMessageCount | ||
| Produced Count/Sec | TotalMessagesProducedCount | ||
| Consumed Count/Sec | TotalMessagesConsumedCount | ||
| Number of Producers | LocalProducerCount | ||
| Number of Consumers | LocalConsumerCount | ||
| Message Wait time(sec) | LocalMessageWaitTime | ||
| Oldest Message age(sec) | LocalOldestMessageAge | ||
| Durable Subscriptions | DurableLocalSubscriptionCount | ||
| Non-durable Subscriptions | NonDurableLocalSubscriptionCount | ||
| Incomplete Publications | IncompletePublicationCount | ||
| Oldest Publication Age | LocalOldestPublicationAge | ||
| Number of Publishers | LocalPublisherCount | ||
| Number of Subscriptions | TotalLocalSubscriptionCount | ||
| Number of Publications | TotalMessagesPublishedCount | ||
| Thread | Thread Pools | Thread Creates | CreateCount |
| Thread Destroys | DestroyCount | ||
| Active Threads | ActiveCount | ||
| Percent used | PercentUsed | ||
| Percent maxed | PercentMaxed | ||
| Pool size | PoolSize | ||
| Declared Thread hung count | DeclaredThreadHungCount |
